> Support four 10/100M PoE power supply ports, and two 10/100M uplink ports ·
> Support 802.3af and 802.3at standards
> OperatingTemperature: -10°C to +55°C
> Support 250 m long distance PoE tansmission
> Support PoE watchdo
General
| Unit Calculated Weight | 1.14 kg |
| Unit Calculated Volume | 0.007083 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |

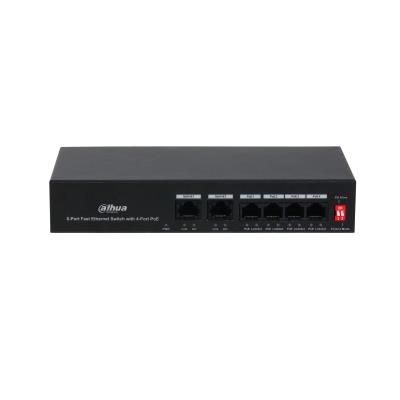

| Summary | Dahua Technology PoE DH-PFS3006-4ET-36. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 2000 entries, Switching capacity: 1.2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE) |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.305 |
| Unit Box Width | 0.26 |
| Model name | PFS3006-4ET-36 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 4 |
| Uplink ports quantity | 2 |
Network
| 10G support | No |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.3/IEEE 802.3u/IEEE 802.3x |
Data transmission
| Forwarding rate | 0.89 Mpps |
| MAC address table | 2000 entries |
| Switching capacity | 1.2 Gbit/s |
Design
| Product colour | Black |
Power
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 36 W |
| Power source | AC |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 36 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -10 - 55 °C |
Weight & dimensions
| Depth | 108.1 mm |
| Height | 35 mm |
| Weight | 560 g |
| Width | 194 mm |
Packaging data
| Package depth | 262 mm |
| Package height | 72 mm |
| Package weight | 1110 g |
| Package width | 303 mm |
Certificates
| Certification | CE: EN60950; FCC |
