- 1/2.8" STARVIS™ CMOS
- 25x optical zoom
- Starlight technology
- Max. 25/30fps@4M
- IR distance up to 100 m
- Perimeter protection
- Face detection
- Quick Pick
- SMD 4.0
- IP66
General
| Unit Calculated Weight | 4.4 kg |
| Unit Calculated Volume | 0.01941 cubm |
| Units per Shipping Box | 1 |

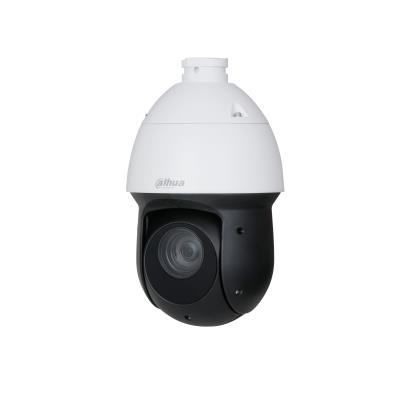

| Summary | Dahua Technology WizSense SD49425GB-HNR. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 53.1°, Lens viewing angle, vertical: 30.4°, Lens viewing angle, diagonal: 59.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 25x, Detect distance: 2161.4 m, Observe distance: 864.6 m |
| Unit Box Height | 0.215 |
| Unit Box Length | 0.43 |
| Unit Box Width | 0.21 |
Design
| Form factor | Dome |
| International Protection (IP) code | IP66 |
| Mounting type | Ceiling/wall |
| Product colour | White |
Performance
| Alarm input/output | Yes |
| Certification | CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4 UL: UL62368-1 |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| PTZ control | Yes |
| PTZ modes | 5 Pattern/8 Tour/Auto scan |
| PTZ protocols | DH-SD/Pelco-P/D |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Camera shutter speed | 1/1 - 1/30000 s |
| Camera shutter type | Electronic |
| Lens viewing angle, diagonal | 59.3 ° |
| Lens viewing angle, horizontal | 53.1 ° |
| Lens viewing angle, vertical | 30.4 ° |
| Minimum illumination | 0 lx |
| Pan preset speed | 240 °/sec |
| Pan range | 0 - 360 ° |
| Pan speed | 200 °/sec |
| Tilt angle range | -15 - 90 ° |
| Tilt preset speed | 200 °/sec |
| Tilt speed | 120 °/sec |
| White balance | Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp |
Image sensor
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Lens system
| Auto focus | Yes |
| Closest focusing distance | 9 m |
| Detect distance | 2161.4 m |
| Focal length range | 5 - 125 mm |
| Identify distance | 216.1 m |
| Maximum aperture number | 3.6 |
| Minimum aperture number | 1.6 |
| Observe distance | 864.6 m |
| Optical zoom | 25 x |
| Recognize distance | 432.3 m |
| Zoom capability | Yes |
Night vision
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 100 m |
| Number of illumination LEDs | 4 |
Video
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR),Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Image stabilizer | Yes |
| Maximum resolution | 2560 x 1440 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2560 x 1440/352 x 240/352 x 288/704 x 480/704 x 576 |
| Supported video modes | 1080p/720p |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.264+/H.265/H.265+/M-JPEG |
| Video formats supported | H.264/H.264+/H.265/H.265+/M-JPEG |
| Video streaming | Yes |
Audio
| Audio formats supported | G.722.1/G.723/G.726/G.729 |
| Voice codecs | G.711a/G.711Mu/G.722.1/G.726/G.729 |
Network
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast/Unicast |
| Supported network protocols | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
Storage
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory | 1024 MB |
| Maximum memory card size | 512 GB |
| ROM capacity | 4096 MB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Active tampering alarm | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object/Face detection/Missing object |
| IP address filtering | Yes |
| Video motion detection | Yes |
Power
| DC output current | 3 A |
| DC output voltage | 12 |
| Power consumption (max) | 20 W |
| Power consumption (typical) | 9 W |
| Power source type | DC,PoE |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Diameter | 160 mm |
| Height | 270.4 mm |
| Weight | 2400 g |
Packaging data
| Package weight | 3900 g |
Packaging content
| Number of cameras | 1 |
