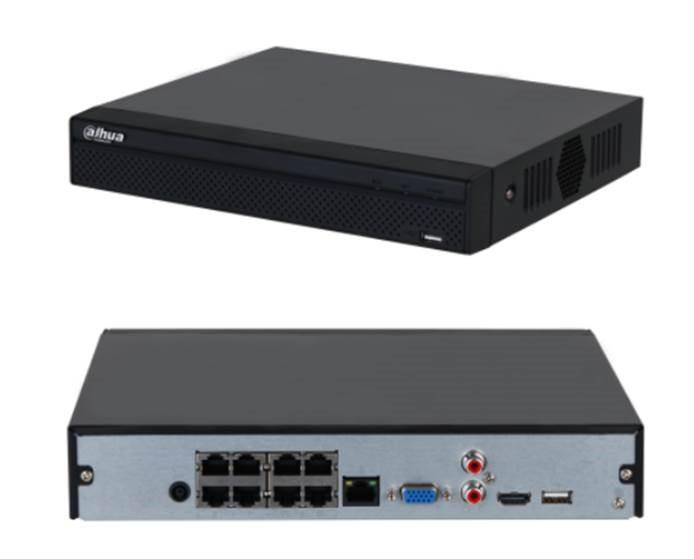

8CH Compact 1U 8PoE 1HDD Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 6 × 1080p@30 fps.
> Max. 144/144/72 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports perimeter protection and SMD Plus.
> Supports one-click arming and disarming.
General
| Model | DHI-NVR2108HS-8P-4KS3 |
| Number of Channels | 8 |
| Unit Box Height | 0.315 |
| Unit Box Length | 0.375 |
| CPU | Industrial-grade |
| Unit Box Width | 0.115 |
| Integrated LAN | Gigabit |
| PoE ports | 8 |
| Power supply requirements | 53 VDC, 1.81 A |
| Dimensions | 260.0 × 232.5 × 47.6 mm |
| Operating temperature range | –10 °C to +55 °C |
| Colour | Black |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01358 cubm |
| Product Net Weight | 0.89 kg |
| Unit Calculated Weight | 2.03 kg |
Mounting Type
| Desktop/pedestal | Yes |
| Rack | Yes |
Interface
| SATA | Yes |
Input/Output connectors
| 15pin D-sub | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
