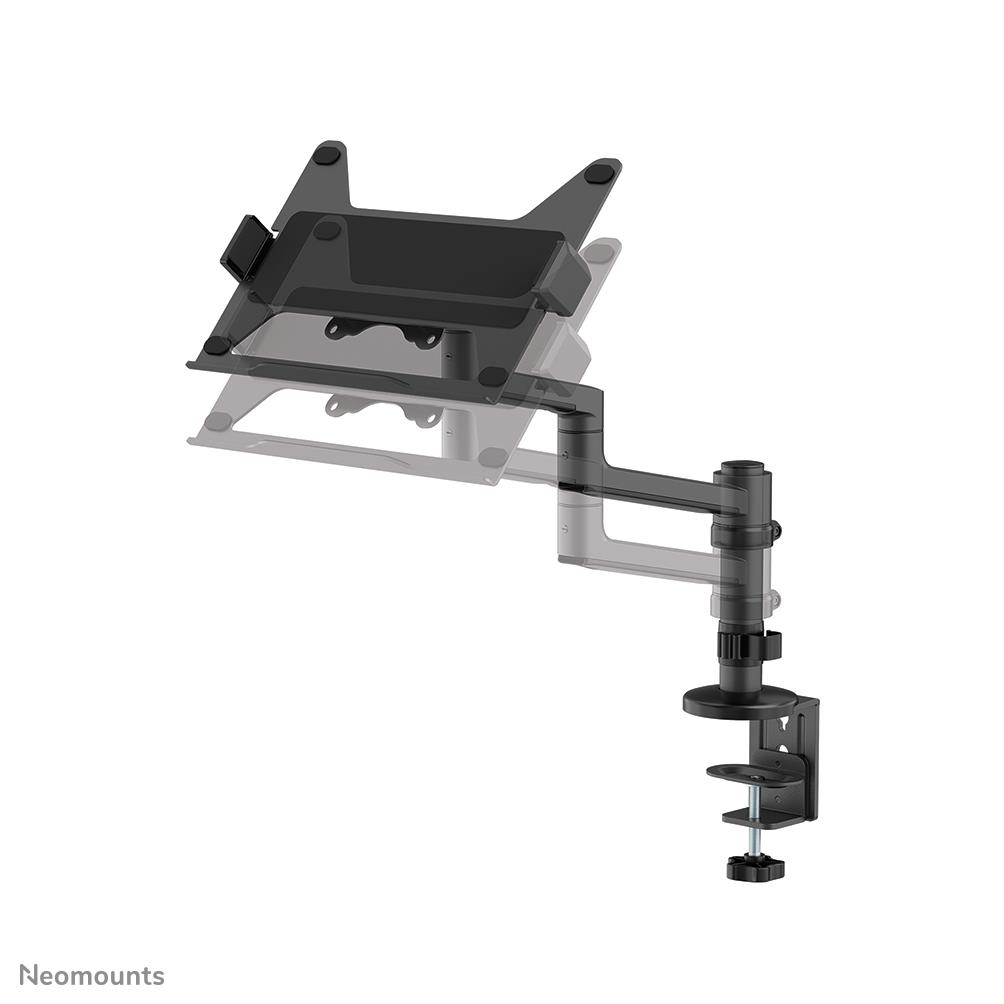

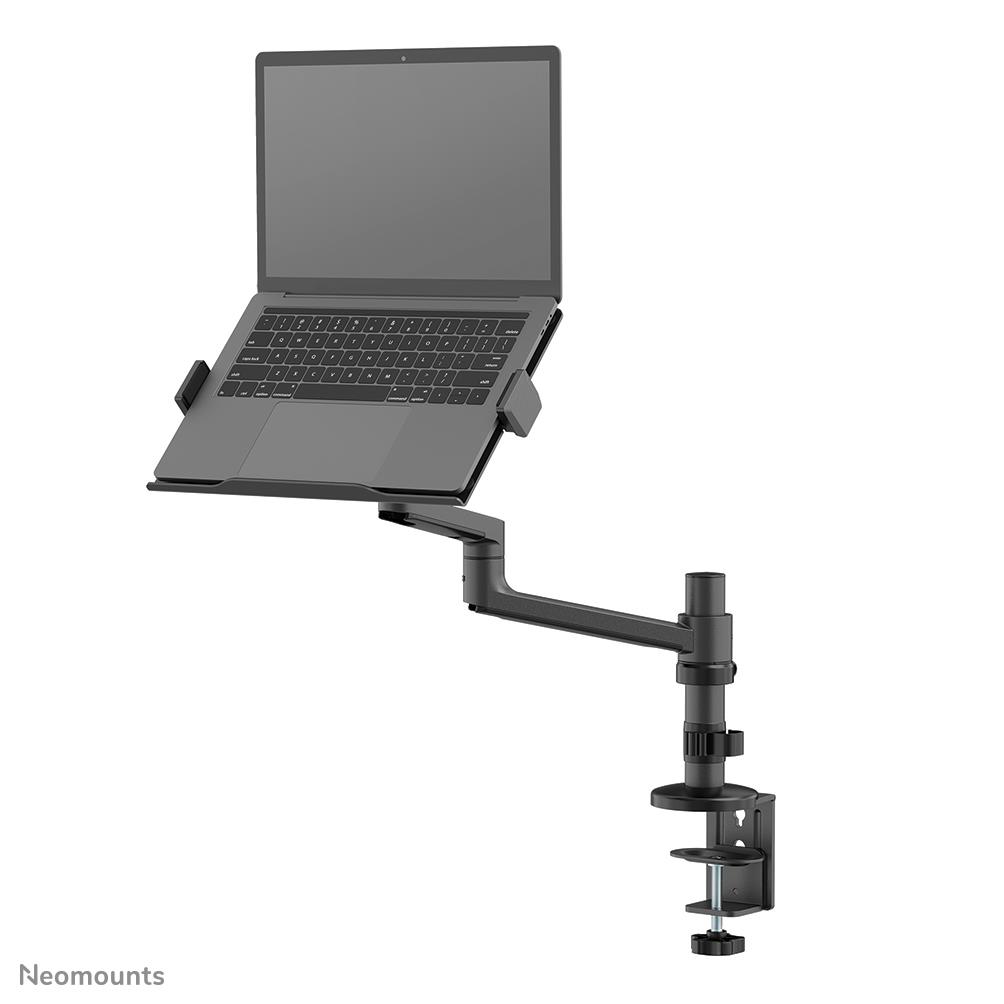

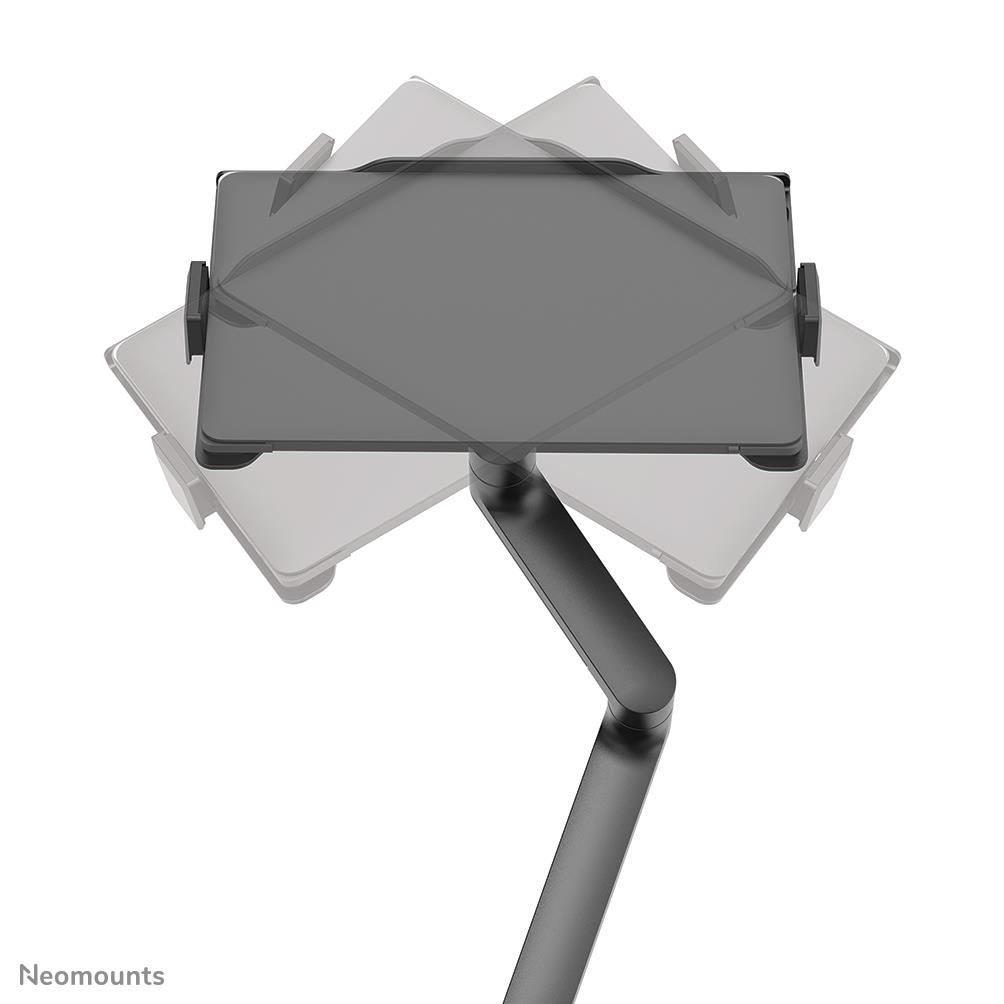

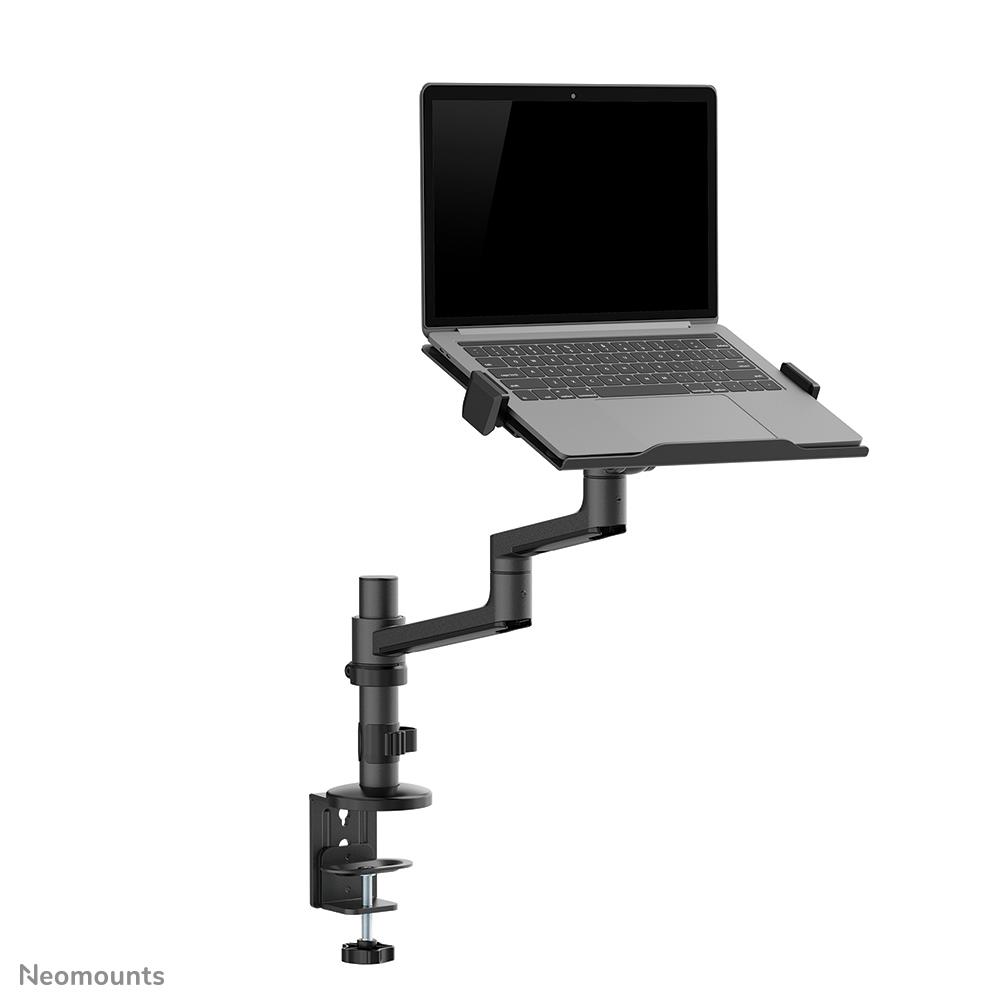

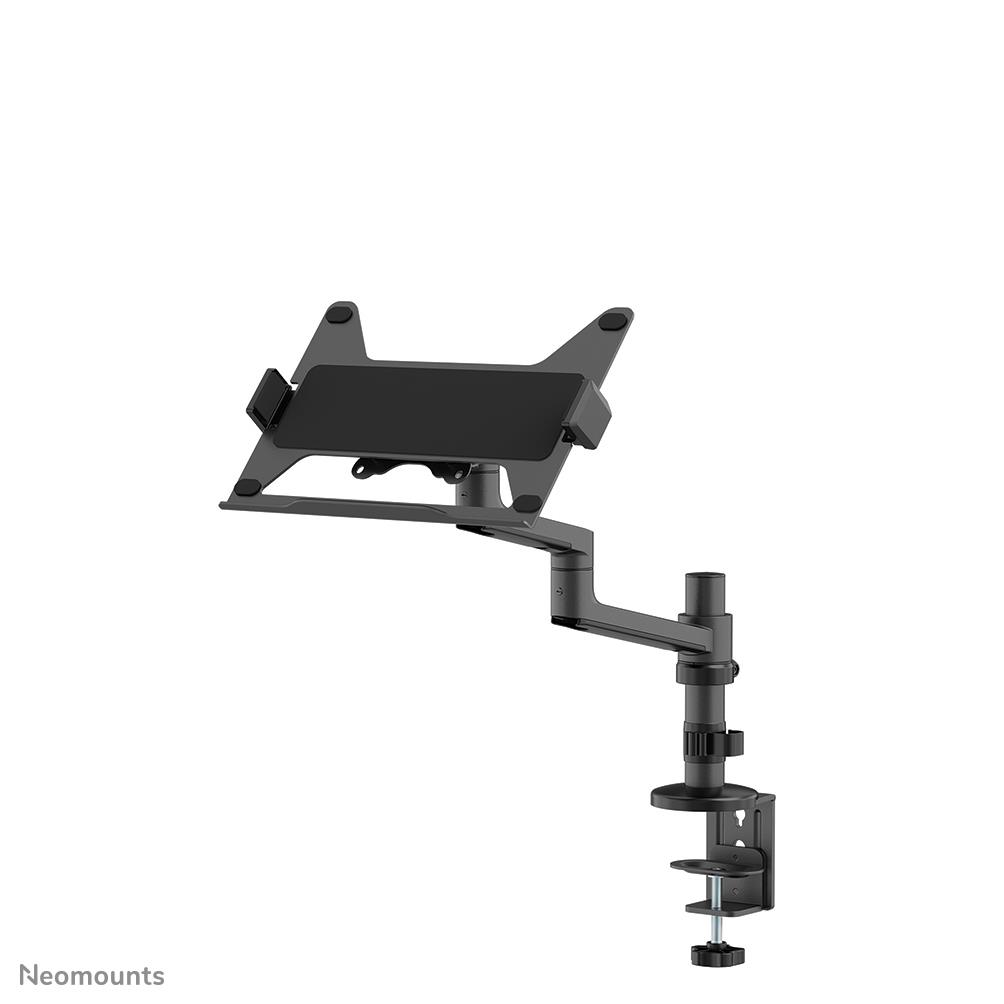

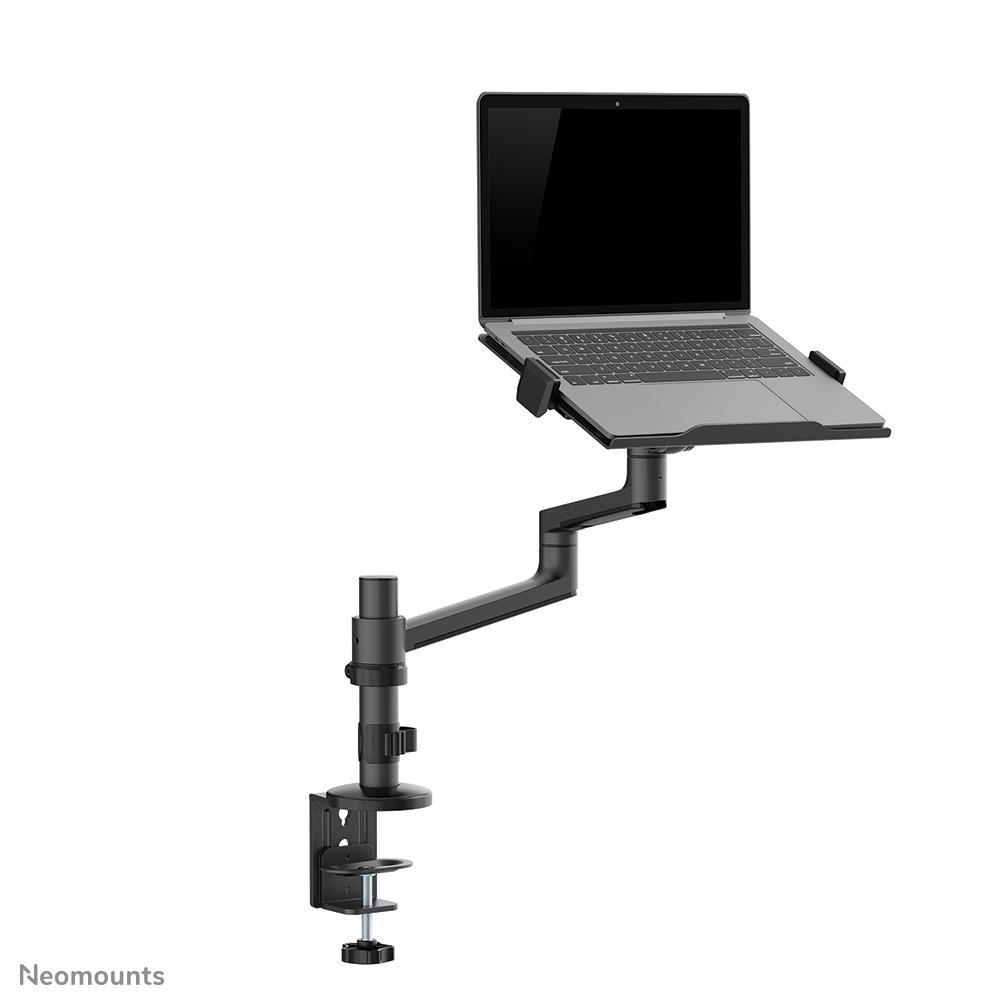

The Neomounts DS20-425BL1 NEXT Lite is a full motion desk mount for laptops up to 17,3" with a maximum weight capacity of 5 kg. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal height and viewing angle for your laptop. Additionally, the mount has manual height and depth adjustment to create the perfect working position.
Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS20-425BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
General
| Unit Calculated Weight | 4.65 kg |
| Unit Calculated Volume | 0.01764 cubm |
| Units per Shipping Box | 4 |
| Summary | Neomounts DS20-425BL1 Laptop holder monitor arm 11.6-17.3" - space saving. Product type: Laptop arm, Product colour: Black, Material: Steel. Height adjustment range: 180 - 385 mm, Width adjustment range: 0 - 413 mm, Depth adjustment range: 162 - 494 mm. Width: 465 mm, Depth: 494 mm, Height: 641 mm. Package width: 233 mm, Package depth: 150 mm, Package height: 442 mm. Master (outer) case width: 455 mm, Master (outer) case length: 320 mm, Master (outer) case height: 490 mm |
| Unit Box Height | 0.155 |
| Unit Box Length | 0.45 |
| Unit Box Width | 0.235 |
| Model name | Neomounts DS20-425BL1 Laptop holder monitor arm 11.6-17.3" - space saving |
Design
| Material | Steel |
| Maximum notebook screen size compatibility | 17.3 " |
| Maximum weight capacity | 5 kg |
| Minimum notebook screen size compatibility | 11.6 " |
| Mounting | Clamp/Grommet |
| Number of devices supported | 1 |
| Product colour | Black |
| Product type | Laptop arm |
Ergonomics
| Adjustable | Yes |
| Adjustable depth | Yes |
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Depth adjustment range | 162 - 494 mm |
| Distance to the wall (max) | 494 mm |
| Distance to the wall (min) | 162 mm |
| Height adjustment | Yes |
| Height adjustment range | 180 - 385 mm |
| Panel mounting interface | 75 x 75 mm |
| Rotating | Yes |
| Swivel angle range | -90 - 90 ° |
| Tilt angle range | -30 - 90 ° |
| VESA mounting | Yes |
| Width adjustment range | 0 - 413 mm |
Weight & dimensions
| Depth | 494 mm |
| Desk thickness (max) | 80 mm |
| Desk thickness (min) | 10 mm |
| Height | 641 mm |
| Weight | 3640 g |
| Width | 465 mm |
Packaging data
| Package depth | 150 mm |
| Package height | 442 mm |
| Package net weight | 4400 g |
| Package type | Box |
| Package weight | 4400 g |
| Package width | 233 mm |
Features
| Lockable | No |
Technical details
| Country of origin | China |
| Mounting type | Desk |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 18500 g |
| Master (outer) case height | 490 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case net weight | 14600 g |
| Master (outer) case width | 455 mm |
| Products per master (outer) case | 4 pc(s) |
| Products per pallet (EU) | 56 pc(s) |
Other features
| Number of displays supported | 1 |
