Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5070 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed with a compact profile, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
General
| Unit Calculated Weight | 1.67 kg |
| Product Net Weight | 0.5 kg |
| Unit Calculated Volume | 0.00989 cubm |
| Units per Shipping Box | 5 |
| Model | DUAL-RTX5070-O12G |
| Summary | ASUS Dual -RTX5070-O12G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5070. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR7, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s) |
| CnCode | 84718000 |
| Unit Box Height | 0.23 |
| Unit Box Length | 0.405 |
| Unit Box Width | 0.086 |
Processor
| CUDA | Yes |
| CUDA cores | 6144 |
| Graphics processor | GeForce RTX 5070 |
| Graphics processor family | NVIDIA |
| Maximum displays per videocard | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Processor boost clock speed | 2542 MHz |
| Processor frequency (OC mode) | 2572 MHz |
Memory
| Data transfer rate | 28 Gbit/s |
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 192 bit |

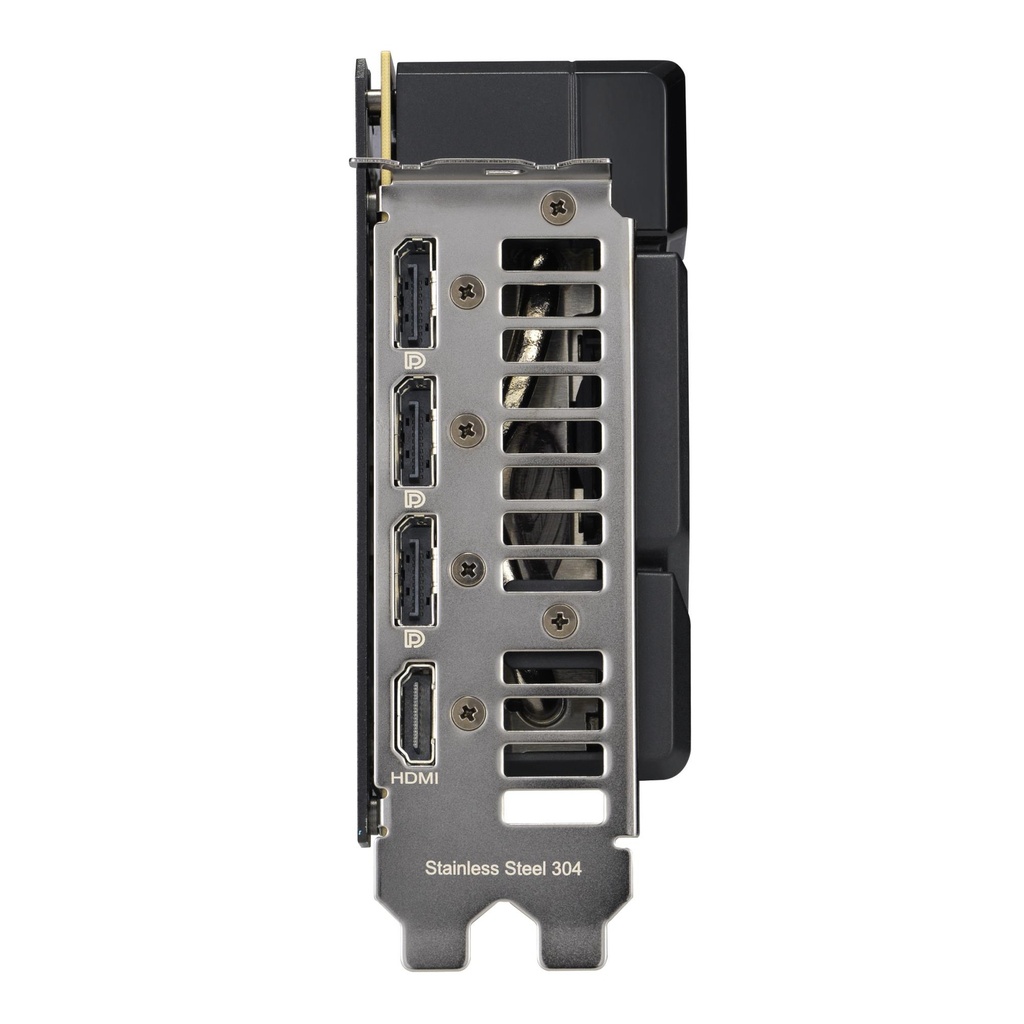

Ports & interfaces
| DisplayPort version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Interface type | PCI Express 5.0 |
Performance
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| NPU performance up to | 988 TOPs |
| NVIDIA G-SYNC | Yes |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
Design
| Cooling technology | ASUS Axial-tech |
| Cooling type | Active |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of fans | 2 fan(s) |
| Number of slots | 2.53 |
| Product colour | Multicolour |
| SFF ready | Yes |
Power
| Minimum system power supply | 750 W |
| Supplementary power connectors | 1x 16-pin |
System requirements
| Windows operating systems supported | Yes |
Weight & dimensions
| Depth | 50.6 mm |
| Height | 126 mm |
| Length | 249 mm |
| Weight | 855 g |
Packaging data
| Package depth | 233 mm |
| Package height | 88.5 mm |
| Package type | Box |
| Package weight | 1556 g |
| Package width | 405 mm |
