Flexible SFP+ options
Support for short-range and long-range transceivers as well as DAC options enables flexible connectivity choices.
Link aggregation
Dual 10GbE ports can be combined into a Link Aggregation Group to boost throughput up to 20 Gb/s, while also providing port failover and load balancing functionality.1
CPU offloading and load balancing
Support for CPU offloading and load balancing technologies enables optimal system performance.
General
| Unit Calculated Weight | 0.197 kg |
| Product Net Weight | 0.18 kg |
| Unit Calculated Volume | 0.001075 cubm |
| Units per Shipping Box | 1 |

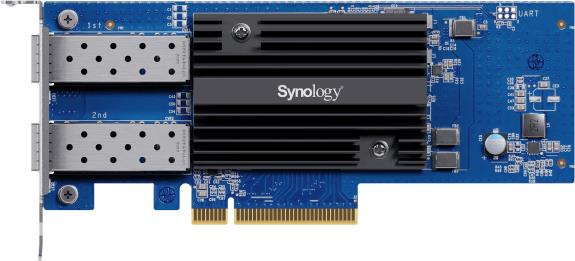

| Summary | Synology E10G30-F2. Host interface: PCIe, Output interface: SFP+, Expansion card form factor: Low-profile. Data transfer rate (max): 10 Gbit/s. Width: 168 mm, Depth: 17.3 mm, Height: 69 mm |
| Unit Box Height | 0.04 |
| Unit Box Length | 0.215 |
| Unit Box Width | 0.125 |
Ports & interfaces
| Expansion card form factor | Low-profile |
| Expansion card standard | PCIe 3.0 |
| Host interface | PCIe |
| Output interface | SFP+ |
Design
| Internal | Yes |
Features
| Data transfer rate (max) | 10 Gbit/s |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Technical details
| Warranty period | 5 year(s) |
Weight & dimensions
| Depth | 17.3 mm |
| Height | 69 mm |
| Width | 168 mm |
