Streamline your data management

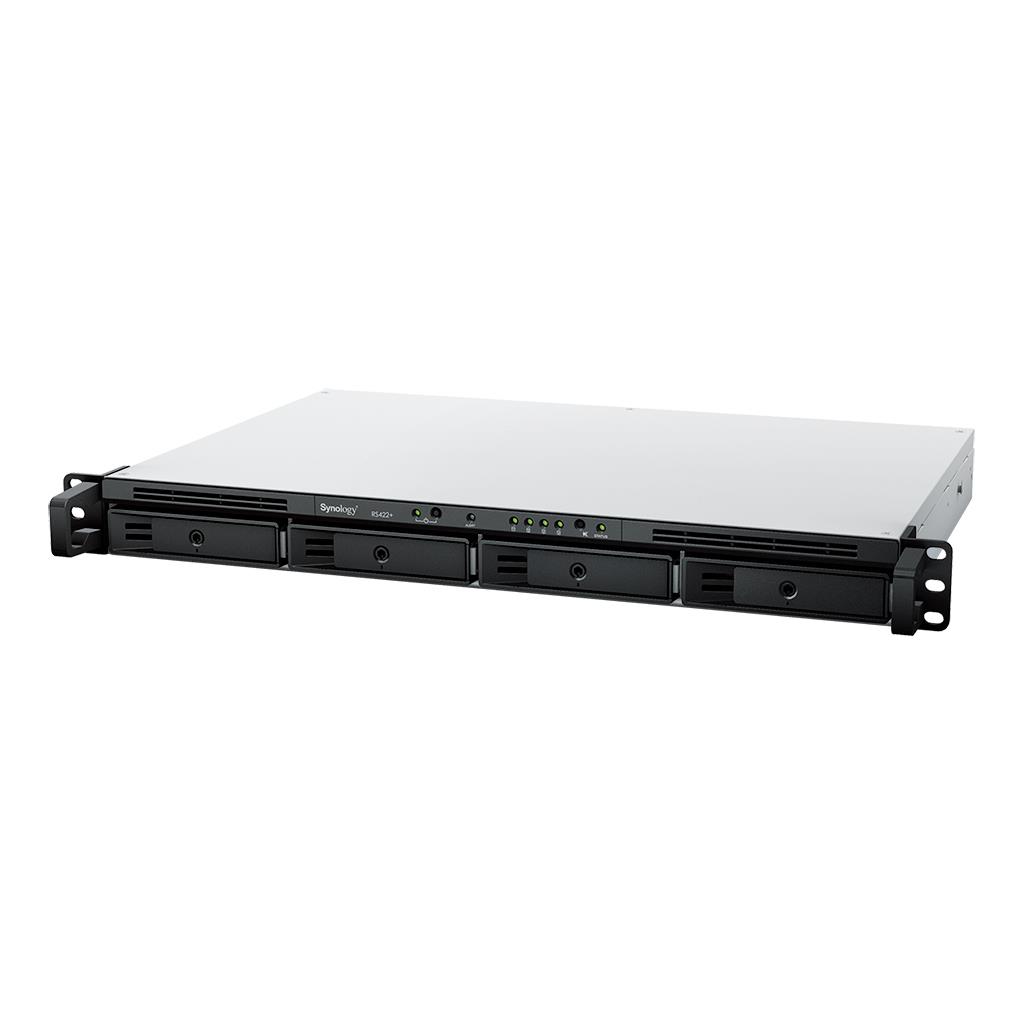

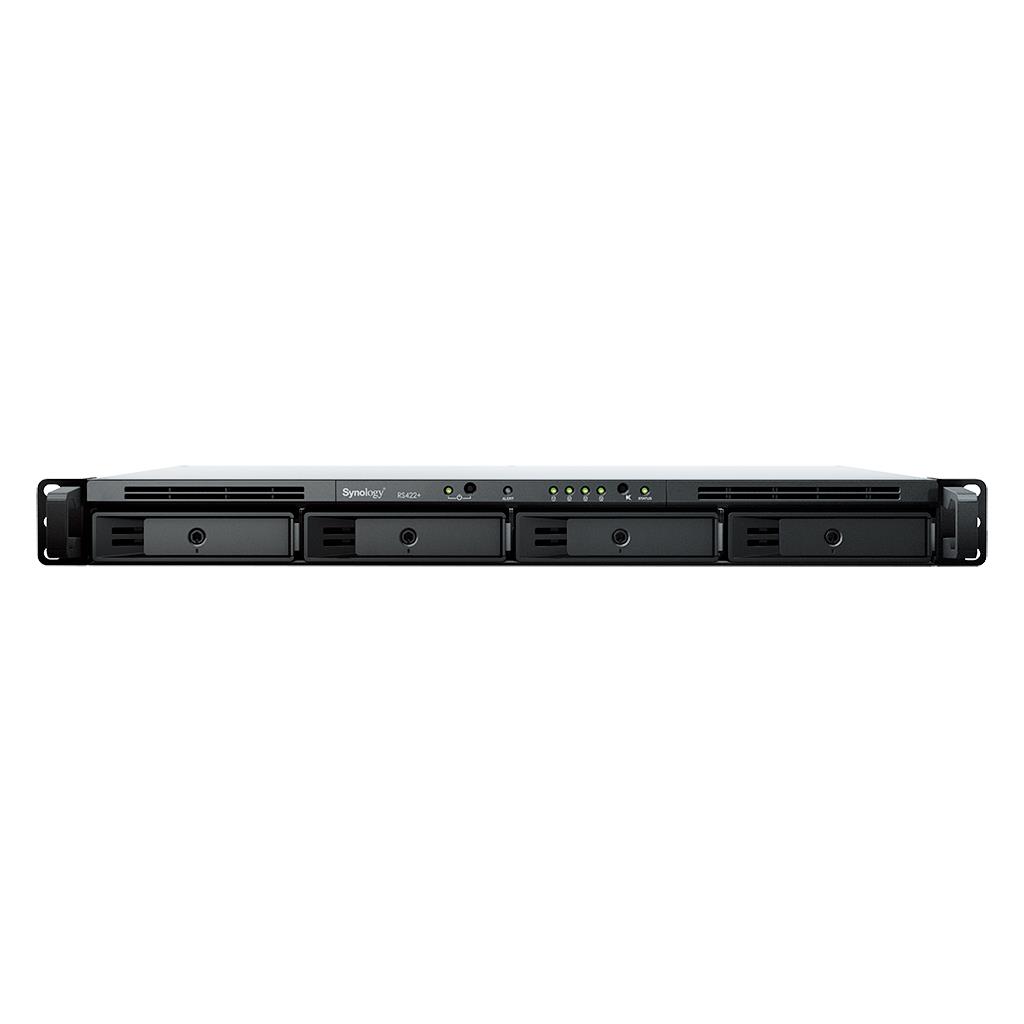

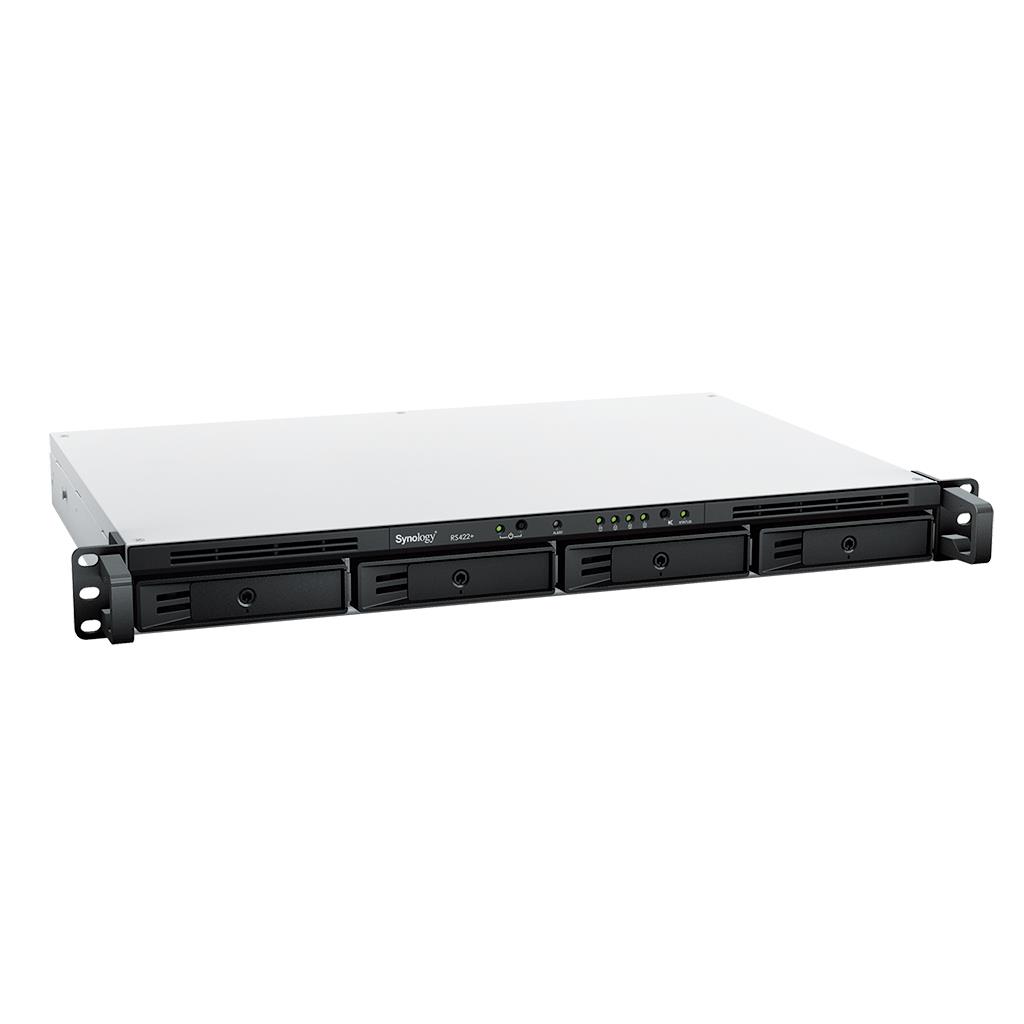

With its compact 1U form factor and powerful Synology DiskStation Manager (DSM) operating system, the 4-bay Synology RackStation RS422+ is an affordable all-in-one solution for small businesses and home lab owners looking to meet their daily data management, sharing, synchronization, and backup needs.
Space-saving design for flexible deployment
Thanks to its compact 1U chassis, the RS422+ fits perfectly in a 2-post or wall mount rack. Deploy it in space-limited environments or anywhere else without investing in costly railkits or other server equipment.
Flexible networking options
Leverage built-in connectivity to integrate the RS422+ into any IT environment, or expand its capabilities by adding plug-and-play modules.
Built-in connectivity
Dual Gigabit ports with support for network failover and load balancing deliver fast and dependable performance out of the box.
Easy upgrade to 10GbE
Add an E10G22-T1-Mini Network Upgrade Module through the easily accessible slot to instantly enable faster networking.
All-in-one data management platform
The RS422+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.
Edge storage for distributed teams
Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations.
Multi-endpoint data protection
Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.
Smart surveillance for small deployments
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Works best with Synology drives
Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology systems and featuring built-in data protection.
Powered by Synology DSM
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system.
- Performance
- 601/516 MB/s sequential read/write throughput1
- Form Factor
- Depth of just 327.5 mm with handles
- Connectivity
- Built-in dual 1GbE ports with easy 10GbE option
- File Integrity
- ECC memory prevents data corruption
General
| Unit Calculated Weight | 6.1 kg |
| Unit Calculated Volume | 0.02835 cubm |
| Units per Shipping Box | 1 |
| Summary | Synology RackStation RS422+. Type: NAS. Chassis type: Rack (1U). Device class: Home & Home Office. Processor family: Ryzen Embedded, Processor model: R1600, Processor frequency: 2.6 GHz. Internal memory: 2 GB, Internal memory type: DDR4. Operating system installed: DSM |
| CnCode | 84717098 |
| Unit Box Height | 0.135 |
| Unit Box Length | 0.525 |
| Unit Box Width | 0.4 |
| Model name | RS422+ |
Storage
| Hot-swap drive bays | Yes |
| Installed storage drive type | No |
| Number of storage drives supported | 4 |
| RAID levels | 0/1/10/5/6/JBOD |
| RAID support | Yes |
| Storage drive sizes supported | 2.5/3.5 " |
| Storage drives installed | No |
| Supported file systems | BTRFS/exFAT/ext3/ext4/FAT32/HFS+/NTFS |
| Supported storage drive interfaces | Serial ATA |
| Supported storage drive types | HDD & SSD |
Processor
| On-board graphics card model | Not available |
| Processor boost frequency | 3.1 GHz |
| Processor cores | 2 |
| Processor family | Ryzen Embedded |
| Processor frequency | 2.6 GHz |
| Processor generation | AMD Ryzen Embedded R1000 Series |
| Processor manufacturer | AMD |
| Processor model | R1600 |
| Processor threads | 4 |
Memory
| ECC | Yes |
| Internal memory | 2 GB |
| Internal memory type | DDR4 |
Network
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Supported network protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN, L2TP) |
| Wake-on-LAN ready | Yes |

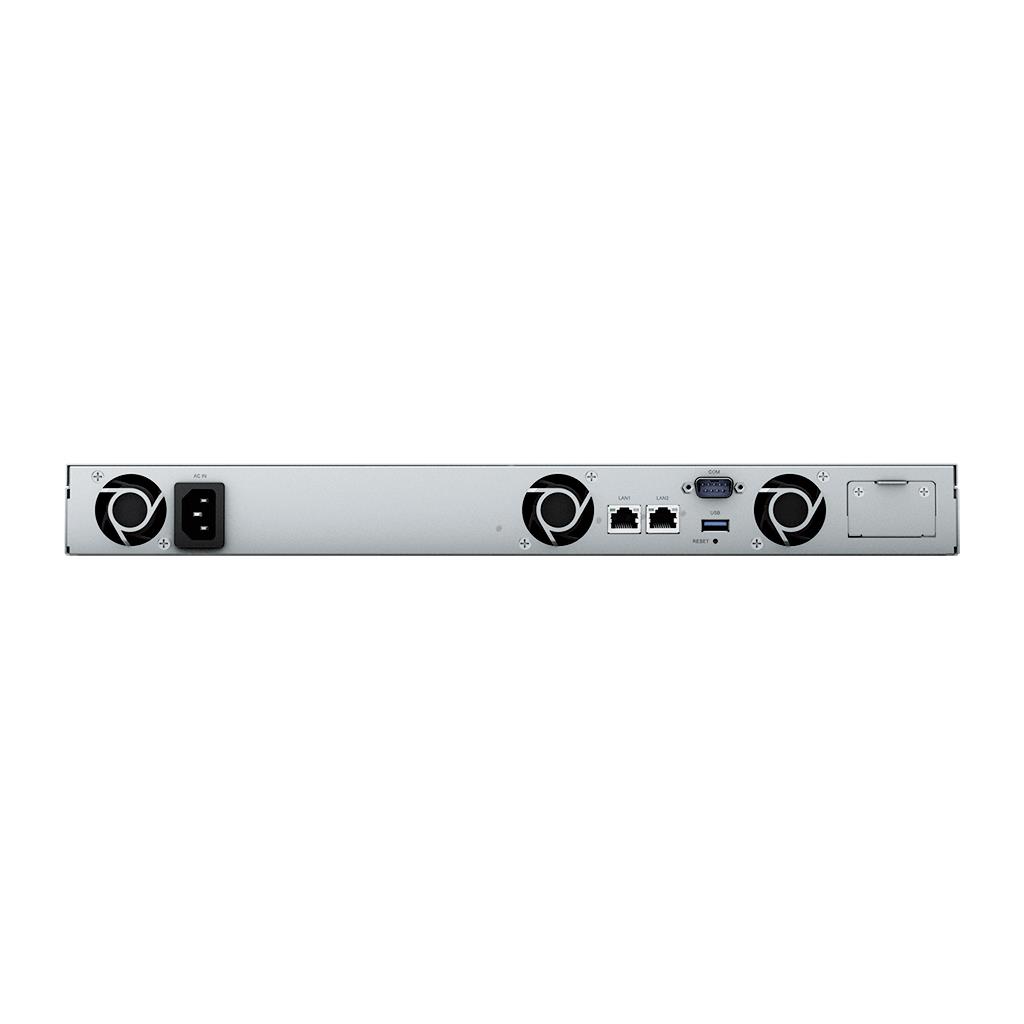

Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB port | Yes |
Design
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Fan diameter | 40 mm |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
| Product colour | Black |
Performance
| Access Control List (ACL) | Yes |
| Backup function | Yes |
| Browser supported | Google Chrome, Firefox, Microsoft Edge, Safari 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android 11.0 and later) on tablets |
| Device class | Home & Home Office |
| Number of users | 2048 user(s) |
| On/off switch | Yes |
| Reset button | Yes |
| Share folder | 1024 |
| Share folder access right management | Yes |
| Type | NAS |
Software
| Operating system installed | DSM |
| Operating system version | 7.1 |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Depth | 295.5 mm |
| Height | 44 mm |
| Weight | 4380 g |
| Width | 430.5 mm |
Packaging content
| Cables included | AC |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
Operational conditions
| Operating altitude | 0 - 5000 m |
| Operating relative humidity (H-H) | 8 - 80 % |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -20 - 60 °C |
Logistics data
| Harmonized System (HS) code | 84714100 |
Other features
| Compliance certificates | RoHS |
| I/O ports | Console Port |
