Flexible Placement
Easy mounting design & PoE

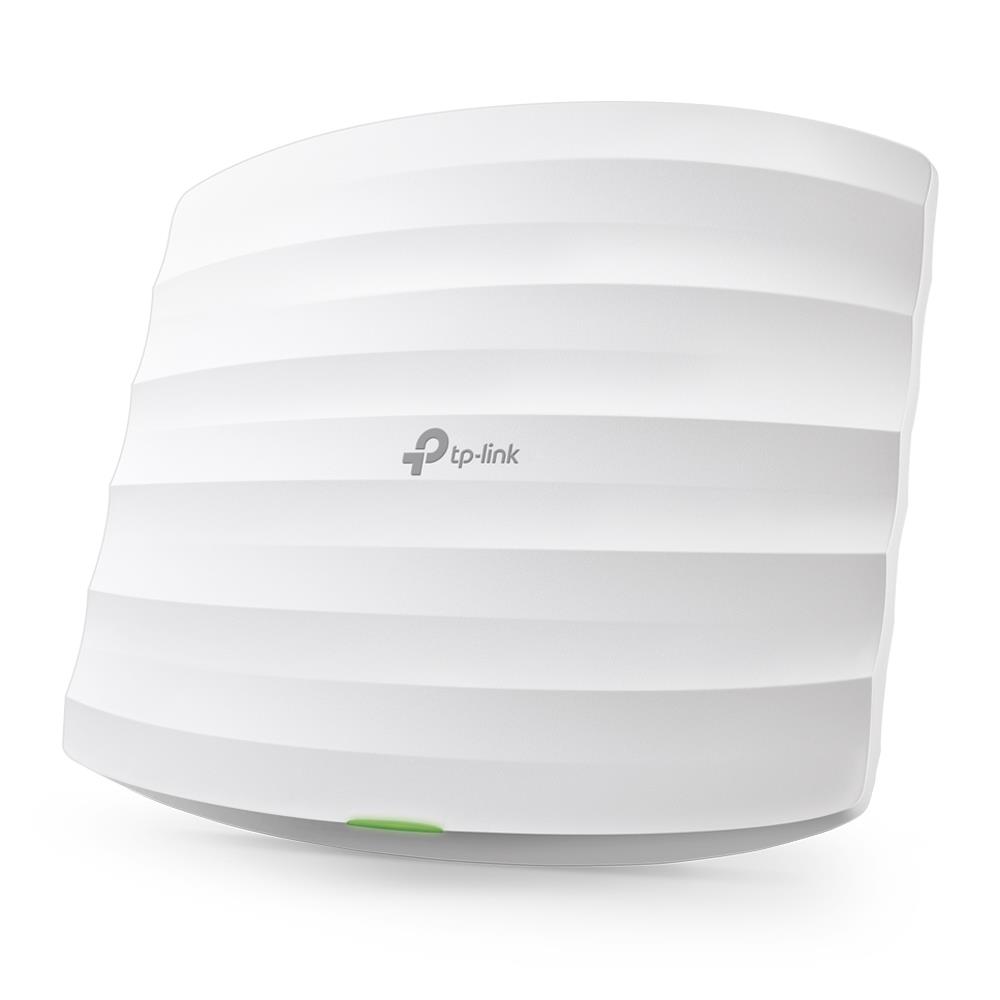

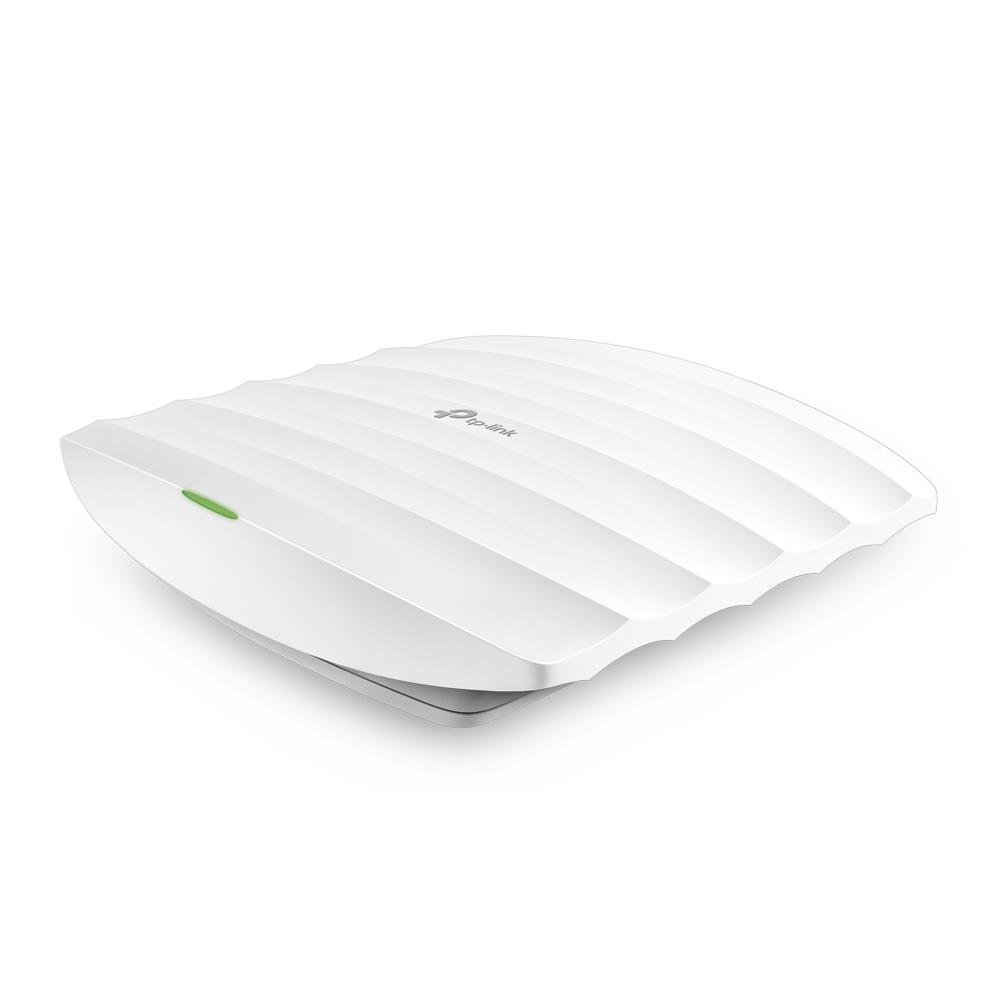

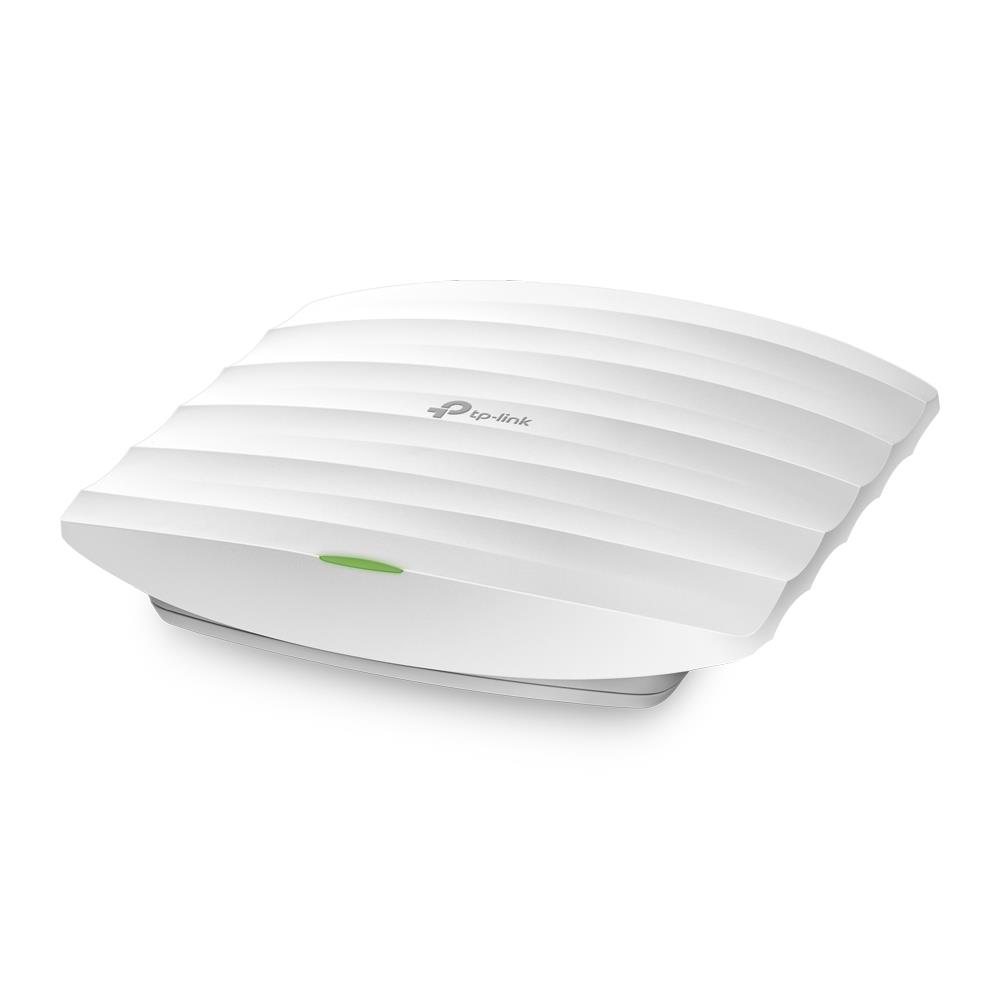

The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.
Cloud Centralized Management - Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal
Guest Network with Facebook and SMS Support
The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
- Cloud centralized management and Omada app for ultra convenience and easy management
- Supports passive PoE for convenient installation up to 100meters

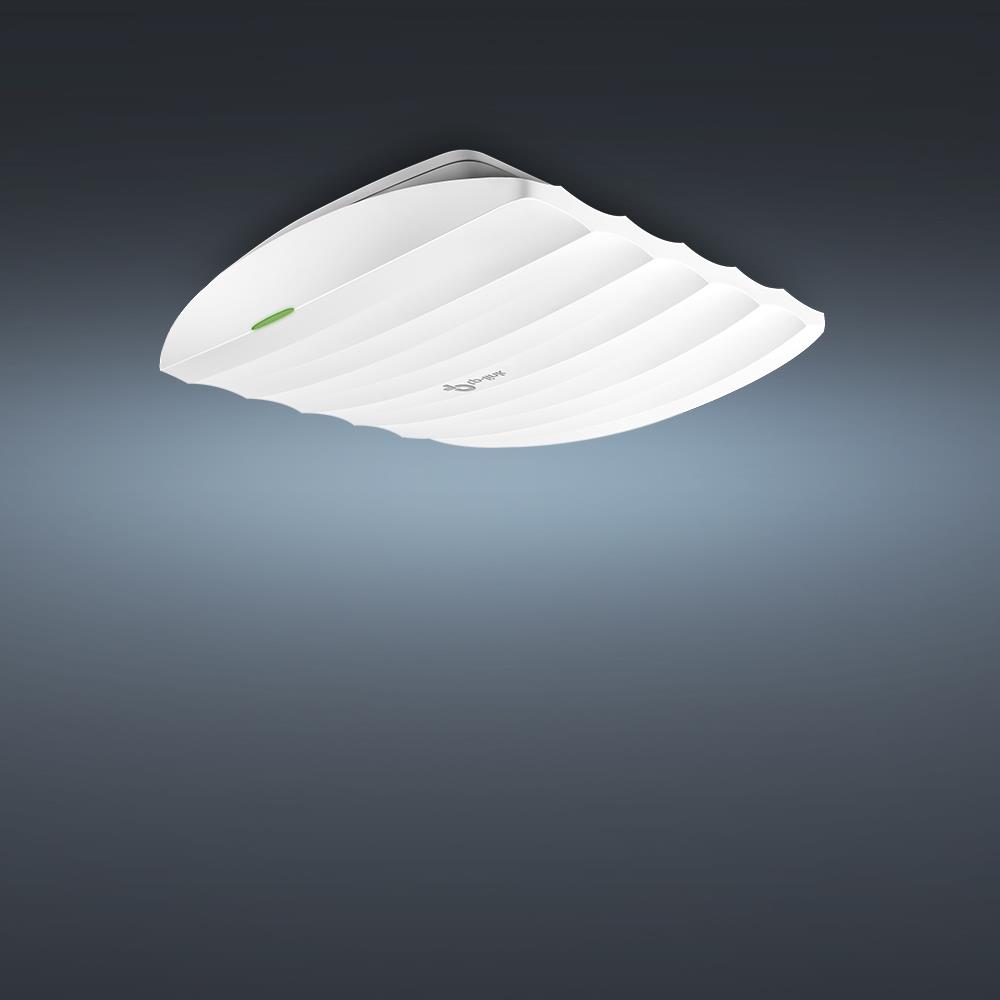

- Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Multi-SSID divides multiple wireless networks for different users
- Enterprise class Wi-Fi security help to decrease network security threats
- Supports management vlan for an enhanced network management
General
| Unit Calculated Weight | 0.81 kg |
| Unit Calculated Volume | 0.004631 cubm |
| Units per Shipping Box | 1 |
| Summary | TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise,.... Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White |
| CnCode | 85176200 |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.245 |
| Model name | 300Mbps Wireless N Ceiling Mount Access Point |
| Series | Omada |
Features
| 2.4 GHz | Yes |
| 5 GHz | No |
| 6 GHz | No |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Frequency band | 2.4 - 2.4835 GHz |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Networking standards | IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.1x |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Receiver sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Transmitting power (CE) | 19 dBm |
| Transmitting power (FCC) | 21 dBm |
| Virtual LAN features | VLAN mapping |
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wireless isolation | Yes |
Security
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Number of SSID supported | 8 |
| Security algorithms | 128-bit WEP/152-bit WEP/64-bit WEP/HTTPS/SNMP/SNMPv2/SSH/WPA/WPA2-Enterprise/WPA2-PSK/WPA-PSK |
| Service Set Identifier (SSID) features | Multiple SSIDs |
Management features
| Syslog | Yes |
| Web-based management | Yes |
Ports & interfaces

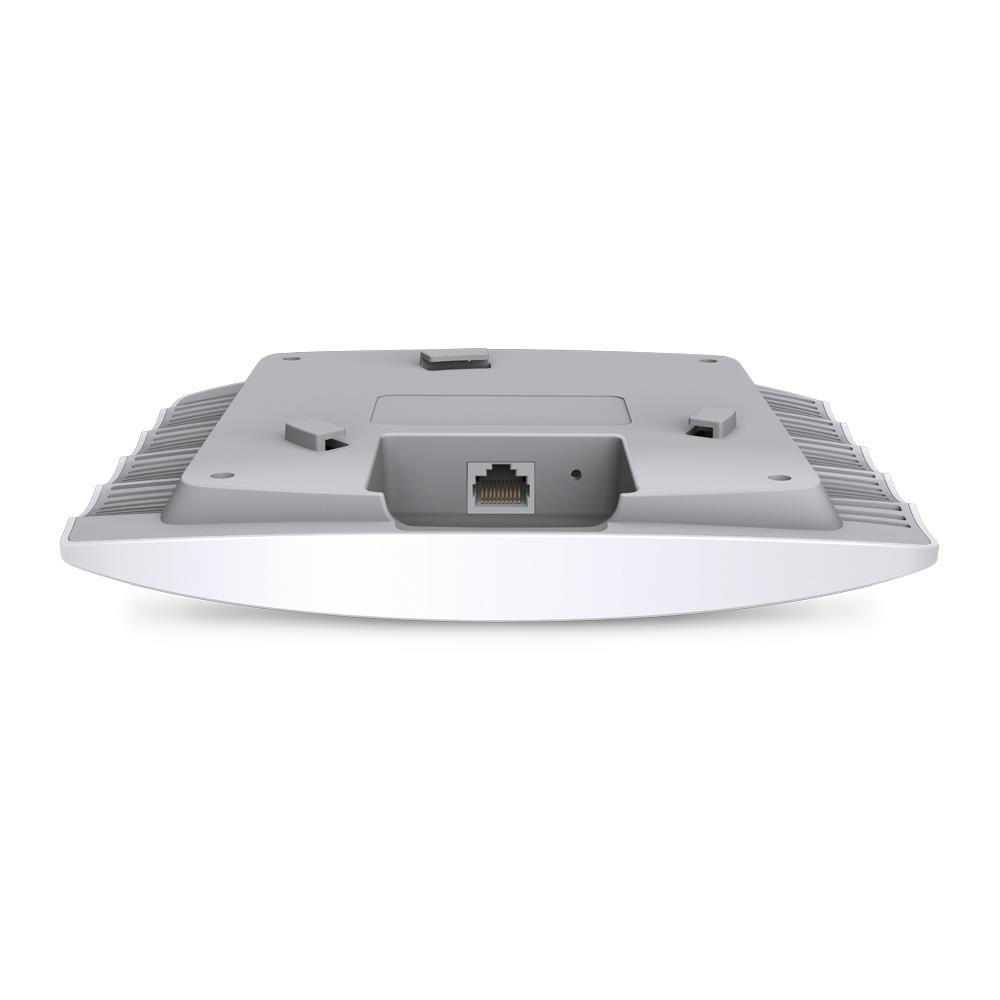

| Ethernet LAN (RJ-45) ports | 1 |
Power
| AC input voltage | 24 V |
| Power consumption (typical) | 2.8 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
Design
| LED indicators | Power |
| Placement | Ceiling,Wall |
| Product colour | White |
| Reset button | Yes |
Antenna
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 4 dBi |
| Antenna type | Internal |
| Antennas quantity | 2 |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
Weight & dimensions
| Depth | 170.5 mm |
| Height | 29.7 mm |
| Width | 189.5 mm |
Packaging data
| Package depth | 268 mm |
| Package height | 69 mm |
| Package type | Box |
| Package weight | 720 g |
| Package width | 246 mm |
Packaging content
| Cables included | AC |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Sustainability
| Sustainability compliance | Yes |
Logistics data
| Harmonized System (HS) code | 85176990 |
