AX1800 Wall Plate WiFi 6 Access Point
Futureproof Your Network with WiFi 6 Connectivity
Connect more devices at the same time with WiFi 6 speeds of up to 1800 Mbps..

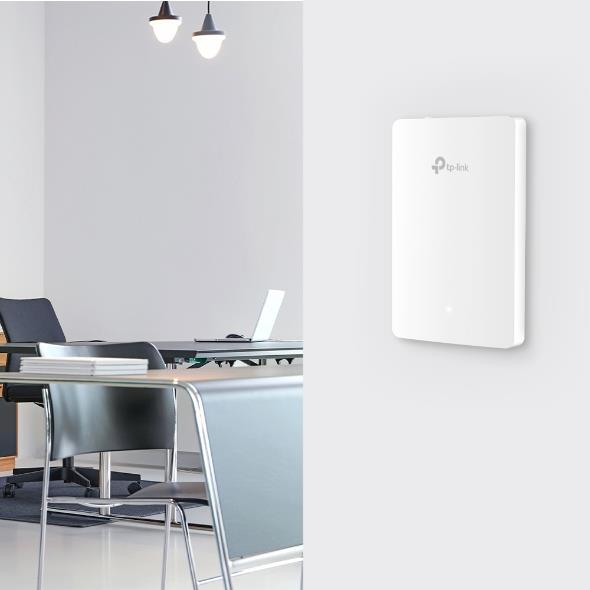

Corner-to-Corner Indoor WiFi Coverage
Guests can enjoy strong private networks that paint their entire space by installing EAP615-Walls in each guest room.
- Superior WiFi 6 Speeds - Delivers dual-band speeds of up to 18 Gbps powered by the latest WiFi 6 technology
- Complete In-Room WiFi Coverage - Guarantees strong signals and corner-to-corner WiFi coverage in each room

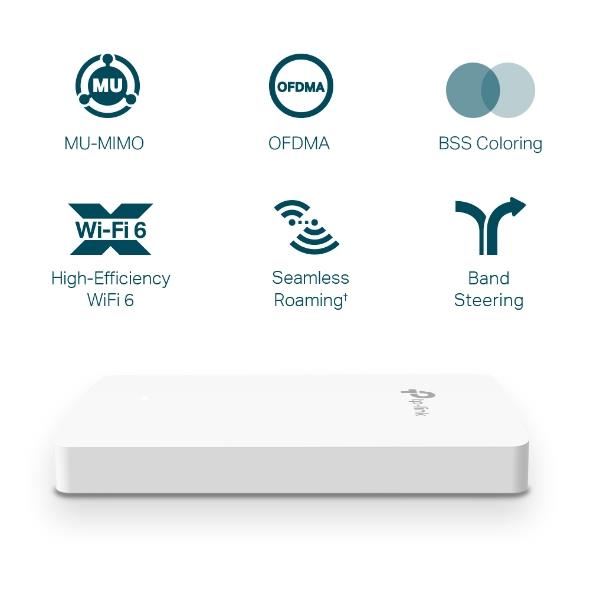

- Higher Network Efficiency - OFDMA and DL/UL MU-MIMO* deliver data to multiple devices simultaneously with less lag

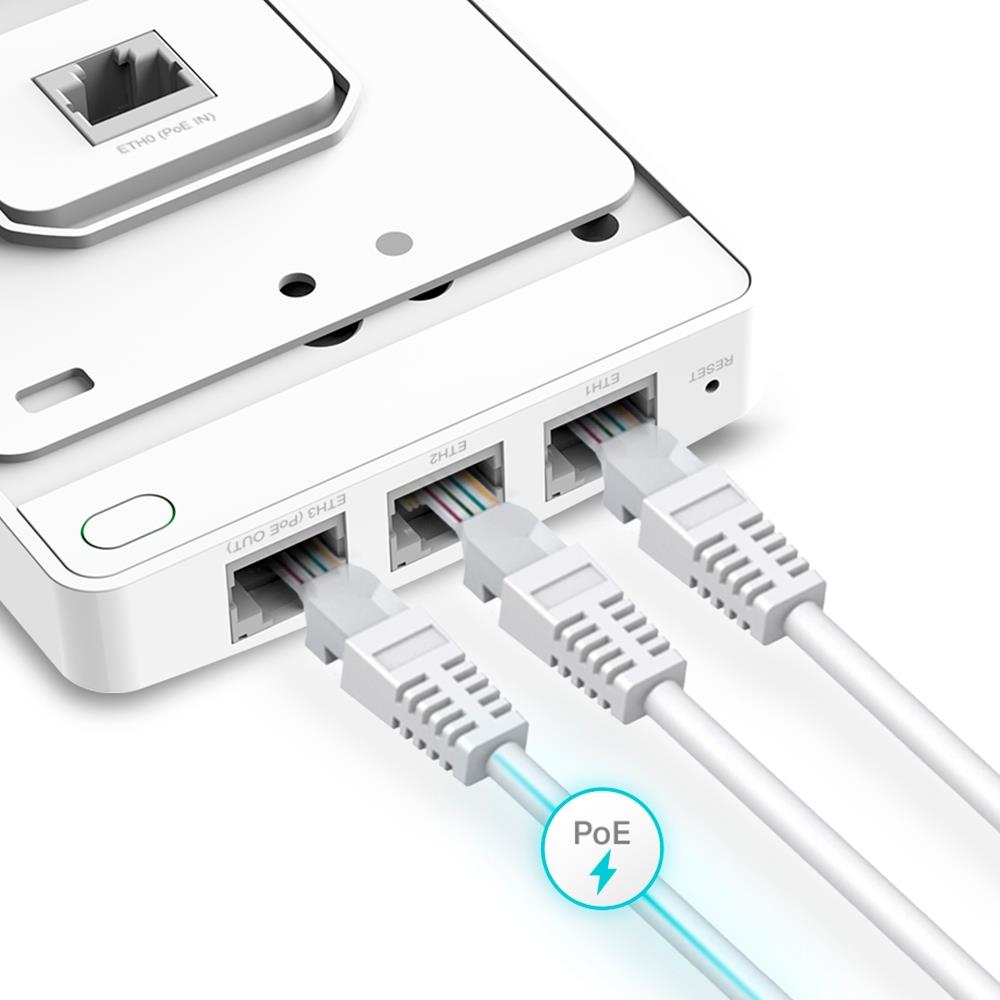

- Full Gigabit Ports - Connect multiple devices with four gigabit ports and one downlink port offering PoE pass-through
- Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management
General
| Unit Calculated Weight | 0.367 kg |
| Unit Calculated Volume | 0.001073 cubm |
| Units per Shipping Box | 40 |
| Summary | TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1774 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White |
| Unit Box Height | 0.04 |
| Unit Box Length | 0.185 |
| Unit Box Width | 0.12 |
| Model name | EAP615-WALL |
| Series | Omada |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Airtime Fairness (ATF) | Yes |
| Automatic channel scanning | Yes |
| Automatic channel selection | Yes |
| Band steering | Yes |
| BeamForming | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Maximum data transfer rate | 1774 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Transmitting power (CE) | 20 dBm |
| Transmitting power (FCC) | 21 dBm |
| VLAN support | Yes |
| Wireless isolation | Yes |
Security
| Access Control List (ACL) | Yes |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Security algorithms | WPA/WPA2/WPA3 |
| Service Set Identifier (SSID) features | Multiple SSIDs |
Management features
| Firmware upgradeable | Yes |
| Syslog | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 4 |
Power
| Power over Ethernet (PoE) | Yes |
Design
| LED indicators | Power |
| On/off switch | Yes |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
Antenna
| Antenna gain level (max) | 4 dBi |
| Antenna type | Internal |
| Antennas quantity | 4 |
Certificates
| Certification | CE, FCC, RoHS |
Weight & dimensions
| Depth | 86 mm |
| Height | 20 mm |
| Width | 143 mm |
Packaging data
| Package depth | 495 mm |
| Package height | 210 mm |
| Package weight | 330 g |
| Package width | 385 mm |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Logistics data
| Harmonized System (HS) code | 85176990 |
