- Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage
- Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range
- 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners
- Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology
- Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI
General
| Unit Calculated Weight | 2.16 kg |
| Unit Calculated Volume | 0.007242 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 3000 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.355 |
| Unit Box Width | 0.255 |
| Model name | AX3000 Indoor/Outdoor WiFi 6 Access Point |
| Series | Omada |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Airtime Fairness (ATF) | Yes |
| Automatic channel selection | Yes |
| Band steering | Yes |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Maximum data transfer rate | 3000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v/IEEE 802.3at |
Security
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Security algorithms | SNMP/SNMPv2/SNMPv3 |
Management features
| Web-based management | Yes |
Ports & interfaces

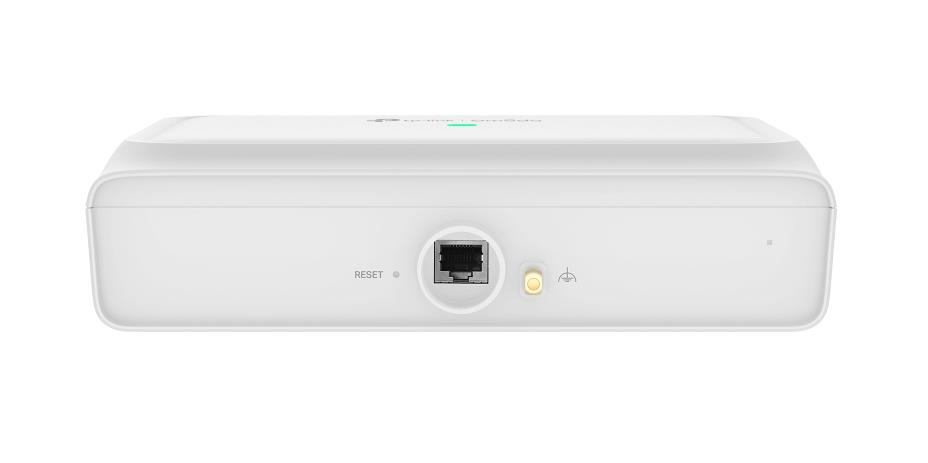

| Ethernet LAN (RJ-45) ports | 1 |
Power
| AC input voltage | 48 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
Design
| Placement | Ceiling,Wall |
| Product colour | White |
Antenna
| Antenna type | Internal |
Weight & dimensions
| Depth | 58 mm |
| Height | 230 mm |
| Width | 207.5 mm |
Packaging content
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
Other features
| Horizontal beam width | 30 ° |
| Vertical beam width | 30 ° |
