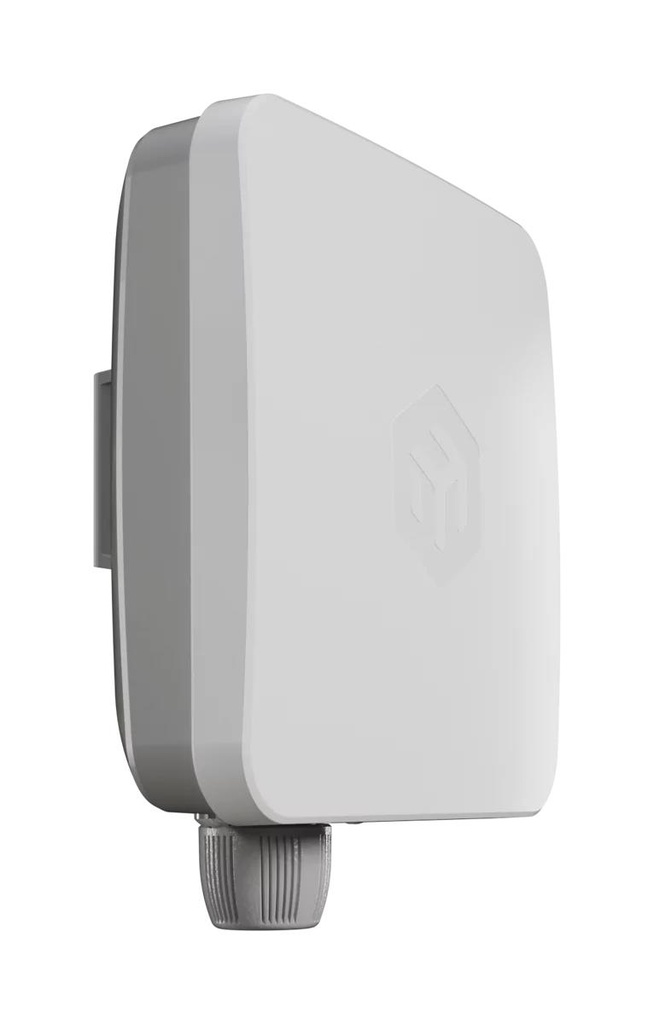

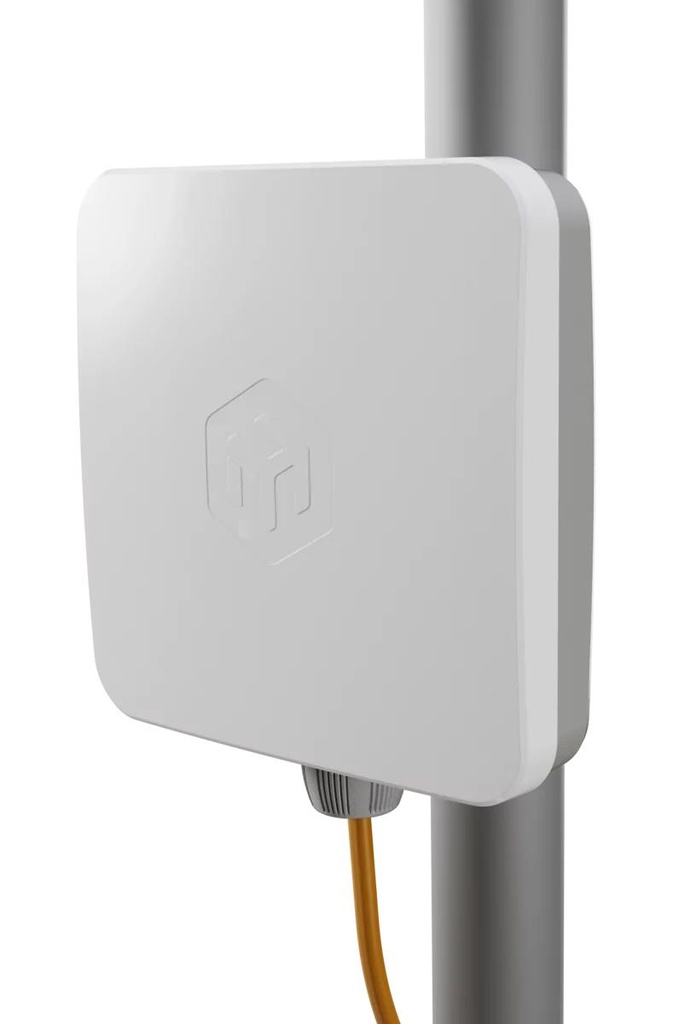

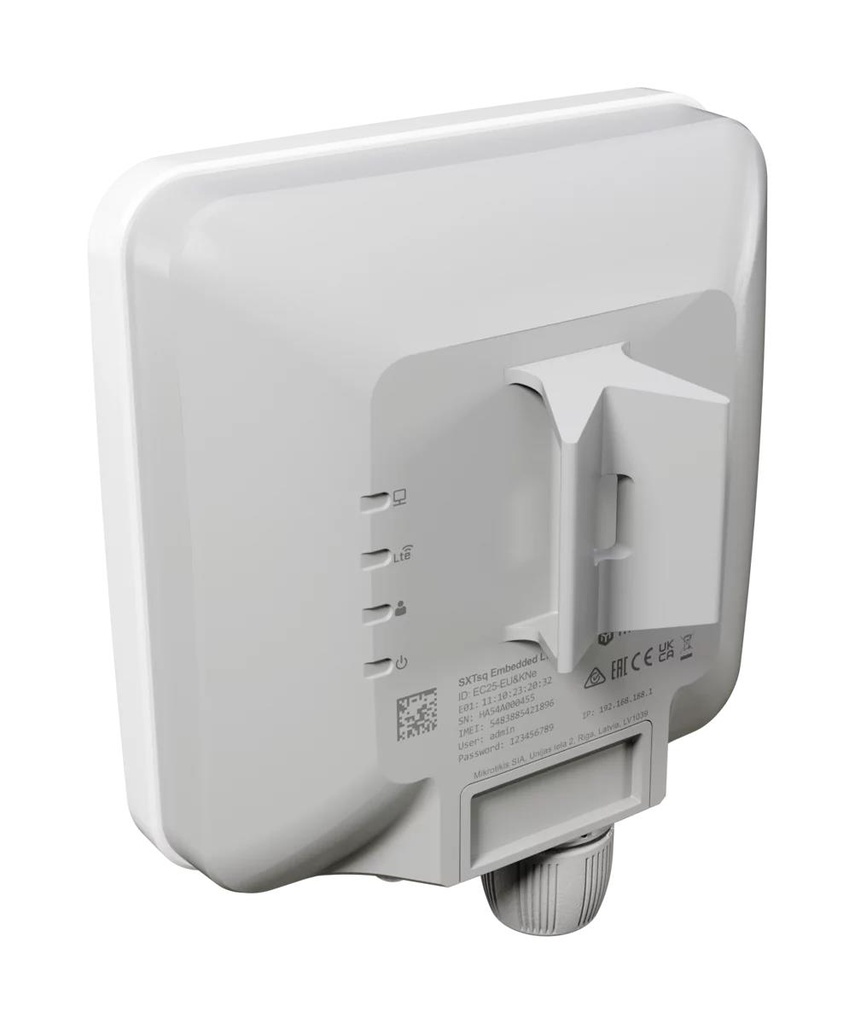

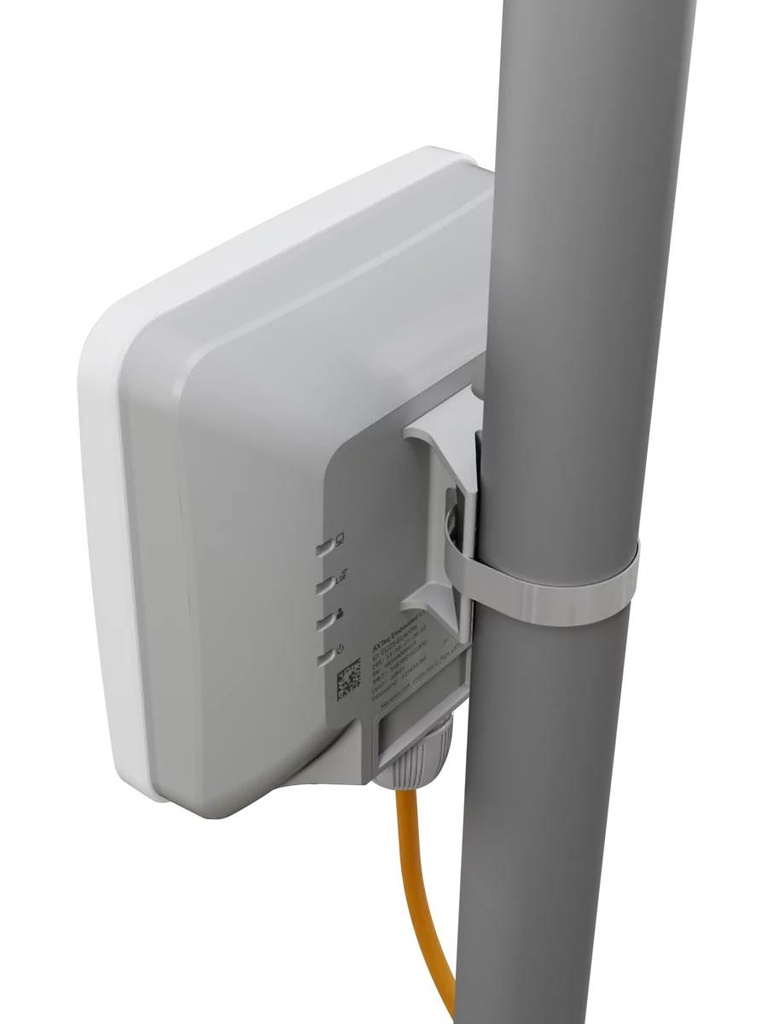

SXTsq Embedded LTE4 Global
A cost-effective outdoor LTE device with an integrated 2×2 MIMO directional antenna, Cat4 LTE modem and RouterOS v7, designed for reliable remote connectivity. Available in EU (EC25-EU) and Global (EG25-G) versions with eSIM support, PoE-in (12–28 V), and a rugged IP-rated SXTsq outdoor enclosure, it delivers stable LTE connectivity with only 5 W max power consumption. This is the global version with extra USA/non-EMEA LTE bands.
- IP67 rated enclosure
- Modern ARM CPU
- Gigabit Ethernet
- 2x2 MIMO
- eSIM + NanoSIM
- PoE-in (12–28 V)
- RouterOS v7
- 5W max power consumption
General
| Summary | Mikrotik SXTsq Embedded LTE4 Global. 5 GHz, 6 GHz, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 5 W |
| CnCode | 85176200 |
| Unit Box Height | 0.085 |
| Unit Box Length | 0.18 |
| Unit Box Width | 0.135 |
| Name | NET ROUTER SXTSQ EMBEDDED LTE4/GLOBAL EG25-G&SXTSQ MIKROTIK |
| Model name | SXTsq Embedded LTE4 Global |
Features
| MIMO | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| 5 GHz | Yes |
| 6 GHz | Yes |
| 2.4 GHz | No |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Power consumption (max) | 5 W |
| AC input voltage | 12 - 57 V |
| Power over Ethernet (PoE) | Yes |
Design
| International Protection (IP) code | IP67 |
| Product colour | White |
Antenna
| Antenna gain level (max) | 9 dBi |
| Antenna features | Integrated antenna |
| Antenna type | Internal |
Performance
| Compatible operating systems | RouterOS v7, License level 3 |
| Operating system installed | RouterOS |
| Flash memory | 512 MB |
| Internal memory | 256 MB |
| Processor frequency | 1200 MHz |
| Built-in processor | Yes |
Mobile network
| SIM card type | NanoSIM + eSIM |
| SIM card slot | Yes |
Certificates
| Certification | CE, FCC, IC, EAC, ROHS |
Weight & dimensions
| Height | 34 mm |
| Depth | 129 mm |
| Width | 129 mm |
Packaging content
| Quantity per pack | 1 pc(s) |
Operational conditions
| Operating relative humidity (H-H) | -40 - 70 % |
