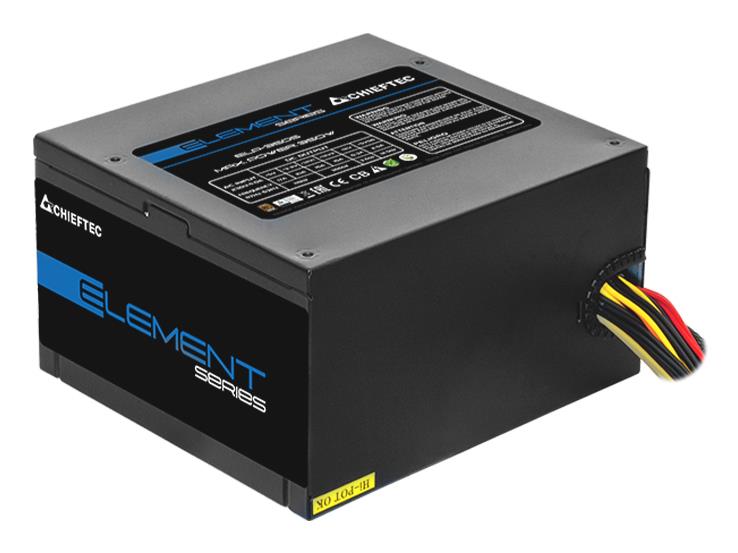

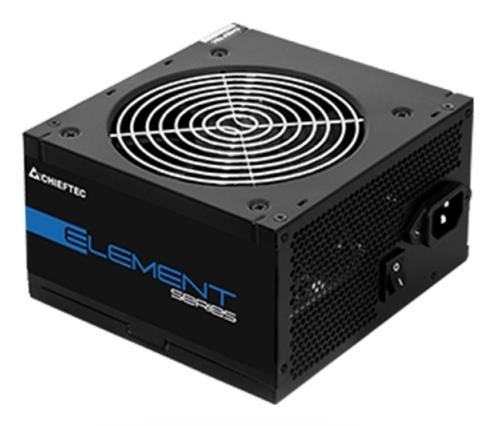

The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
General
| Unit Calculated Weight | 1.83 kg |
| Unit Calculated Volume | 0.003832 cubm |
| Units per Shipping Box | 1 |
| Summary | Chieftec ELP-700S. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, RoHS |
| Unit Box Height | 0.098 |
| Unit Box Length | 0.23 |
| Unit Box Width | 0.17 |
Power
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 200 - 240 V |
| Combined power (+12V) | 648 W |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Efficiency | 85 % |
| Input current | 5 A |
| Max output current (+12V) | 54 A |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 2.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over power/Over voltage/Short circuit/Under voltage |
| Total power | 700 W |
Ports & interfaces
| Cabling type | Non-Modular |
| EPS power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Motherboard power cable length | 650 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express connector | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| SATA power cable length | 150/500 mm |
Performance
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
| Power supply unit (PSU) form factor | PS/2 |
| Purpose | PC |
| Supported motherboard form factors | ATX |
Design
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
Certificates
| Compliance certificates | CB/CE/EAC/RoHS |
Weight & dimensions
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1650 g |
| Width | 140 mm |
Packaging data
| Package type | Box |
| Package weight | 1900 g |
