Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- 26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
- 2× Gigabit SFP port
- 384W Power Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Up to 250m PoE, QoS△, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
General
| Unit Calculated Weight | 6.125 kg |
| Unit Calculated Volume | 0.02491 cubm |
| Units per Shipping Box | 1 |

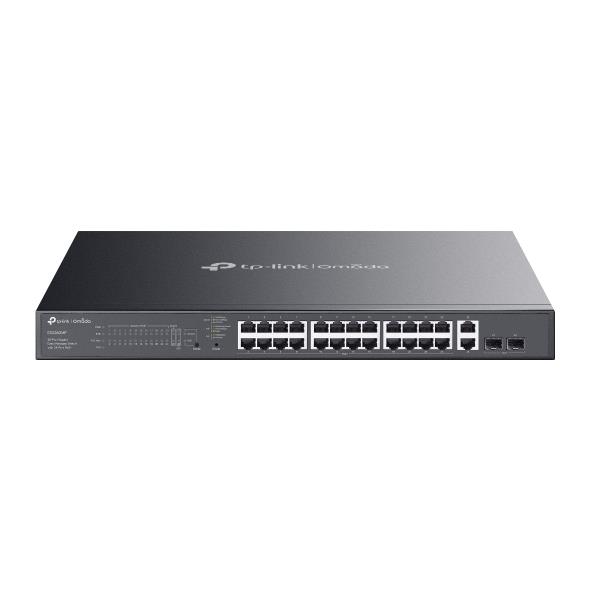

| Summary | TP-Link Omada ES228GMP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i,.... Power over Ethernet (PoE). Rack mounting |
| Unit Box Height | 0.47 |
| Unit Box Length | 0.53 |
| Unit Box Width | 0.1 |
| Model name | ES228GMP |
| Series | Omada |
Management features
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Unified static configuration | Yes |
| Web-based management | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 26 |
| SFP module slots quantity | 2 |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 1000BASE-T/1000BASE-X/100BASE-X/10BASE-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fast leave | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Number of VLANs | 32 |
| Port mirroring | Yes |
| Virtual LAN features | MTU VLAN/Port-based VLAN/Tagged VLAN |
| VLAN support | Yes |
Data transmission
| Forwarding rate | 41.66 Mpps |
| Jumbo frames | 15000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Packet buffer memory | 4 MB |
| Store-and-forward | Yes |
| Switching capacity | 56 Gbit/s |
Security
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
Multicast features
| Multicast support | Yes |
Design
| Housing material | Metal |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Rack mounting | Yes |
Performance
| Fanless | No |
| Firmware upgradeable | Yes |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 224143 h |
| Noise level | 46.2 dB |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 454.8 W |
| Power source | AC |
| Power supply included | Yes |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 384 W |
Operational conditions
| Heat dissipation | 1546.15 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 330 mm |
| Height | 44 mm |
| Width | 440 mm |
Packaging content
| Cables included | AC |
| Manual | Yes |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Certificates
| Certification | FCC, CE, RoHS |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
