The Supremo FM5 Gold 650W is an efficient power supply with a 120 mm Fluctus fan that ensures your PC runs stably without unexpected resets interruptions. This bad boy is equipped with Japanese electrolytic and aluminum-polymer capacitors so you can squeeze the last juices out of it without a hitch. No wonder it is 80 PLUS® Gold certified ;)
Supremo FM5 Gold 650W
When you've spent half your life by the computer, you know that stable component operation = trouble-free boss battles (including those in the office). And that's why we created the Supremo FM5 Gold 650W.
It's an efficient and relatively small (14 cm long) power supply with DC-DC topology dedicated to special tasks demanding components. We're serious – we've packed in everything we think you need to fine-tune the voltage and deliver continuous 650W of power without unexpected resets or a blue screen. We also fit a 12 cm 120 mm Fluctus fan, which will stay cool (literally!) and take care of the right temperature inside the PSU. No wonder our Supremo got the 80 PLUS® Gold certification :)
General
| Unit Calculated Weight | 2.67 kg |
| Unit Calculated Volume | 0.007371 cubm |
| Units per Shipping Box | 6 |
| Units per Pallet | 0 |
| Model name | EY7A007 |
| Summary | ENDORFY Supremo FM5. Total power: 650 W, AC input voltage: 115 - 230 V, AC input frequency: 50/60 Hz. Motherboard power connector: 18+10 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Cables included: AC |
| CnCode | 85044095 |
| Unit Box Height | 0.22 |
| Unit Box Length | 0.1 |
| Unit Box Width | 0.27 |

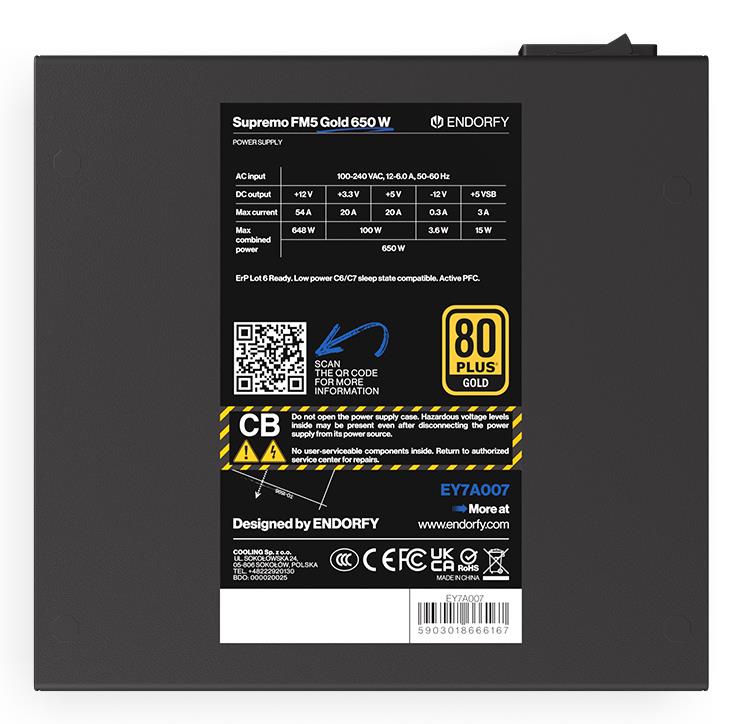

Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 115 - 230 V |
| Combined power (+12V) | 648 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+12V) | 54 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Power protection features | Over current/Over power/Over voltage/Short circuit/Under voltage |
| Total power | 650 W |
Ports & interfaces

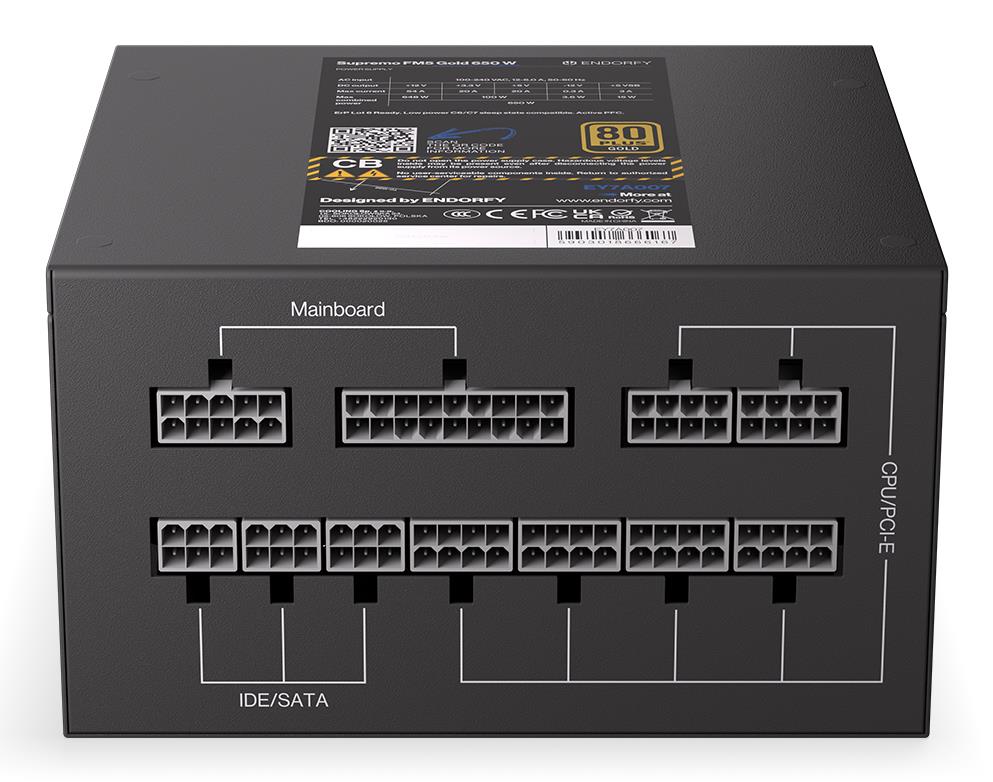

| Cabling type | Fully-Modular |
| Motherboard power connector | 18+10 pin ATX |
| Number of SATA power connectors | 3 |
| PCI Express power connectors (8-pin) | 6 |
Performance
| 80 PLUS certification | 80 PLUS Gold |
| Mean time between failures (MTBF) | 100000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Supported motherboard form factors | ATX |
Design
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
Packaging content
| Cables included | AC |
Weight & dimensions
| Depth | 150 mm |
| Height | 87 mm |
| Width | 140 mm |
