ENDORFY SUPREMO FM6 100 - 240 V 1000 W EY7A011

Kainos tik partneriams Prisijungti B2B

ENDORFY
Garantija: 24 mėn.
Pristatymas į terminalą: DPD, InPost, Omniva
  • Gamintojas
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Gamintojas: ENDORFY

Supremo FM6 1000 W is a fully modular modern ATX 3.1-compliant power supply unit, providing stable operation and supporting PCIe 5.1 GPUs. 80 PLUS® Gold certificate confirms its high efficiency, while a Fluctus fan guarantees quiet work. Thanks to the Japanese capacitors and a 10-year warranty, it’s a reliable solution for avid gamers and professionals alike.

Supremo FM6 1000 W
Supremo FM6 1000 W is a modular ATX 3.1 PSU for demanding users that supports PCIe 5.1 graphics cards. It boasts high power efficiency confirmed by an 80 PLUS® Gold certificate. The power supply’s design utilizes only the Japanese capacitors that guarantee its long service life.

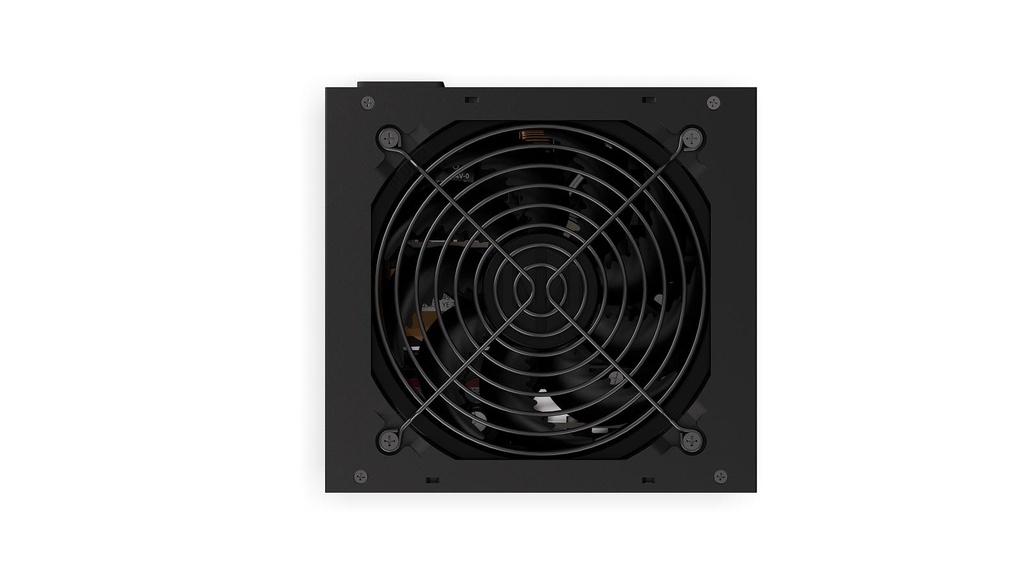

The quiet Fluctus 120 mm fan and optimized component placement ensure low temperatures with almost noiseless operation. Additionally, the modular cables make it easier to keep the surrounding space in order. The PSU also has a security package that protects it from overloading and power surges. Its quality is additionally confirmed by a 10-year warranty.

Ready for latest ATX 3.1 standards
Supremo FM6 1000 W is a power supply unit compliant with the ATX 3.1 standard. Its major advantages include even better performance, stability, and resistance to momentary power spikes than previous ATX standards. The set includes the 12V-2x6 cable fully compatible with PCIe 5.1 cards. A traditional PCI-E 6+2 PIN splitter is also included to handle GPUs with classic power supply systems.

80 PLUS® Gold – supreme performance and reliability
The 80 PLUS® Gold certificate confirms the high efficiency of the Supremo FM6 1000 W power supply unit. Thanks to its excellent quality and refined design, the unit is characterized by low-noise and low-temperature operation, resulting in its extended service life. 

Silence first
Supremo FM6 1000 W has been designed with maximum user comfort in mind. Thanks to the optimized component setup streamlining the air flow and a high-performance cooling system, the PSU runs exceptionally quietly and retains low temperature even under full load.

Premium class capacitors made in Japan
All capacitors installed in the Supremo FM6 1000 W power supply unit are reliable, premium-class components made in Japan. They retain their operating parameters even at high temperatures (105 °C), enabling them to perform faultlessly and stably for years to come, even under extremely demanding operating conditions. 

General
Unit Calculated Weight2.8 kg
Unit Calculated Volume0.00594 cubm
Units per Shipping Box1
Model nameSupremo FM6 1000 W
SummaryENDORFY Supremo FM6 1000 W. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 560,720,880 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
Unit Box Height0.22
Unit Box Length0.1
Unit Box Width0.27
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Combined power (+12V)996 W
Combined power (+3.3V)100 W
Combined power (+5V)100 W
Combined power (+5Vsb)15 W
Combined power (-12V)3.6 W
Input current13 - 6.5 A
Max output current (+12V)83 A
Max output current (+3.3V)20 A
Max output current (+5V)20 A
Max output current (+5Vsb)3 A
Max output current (-12V)0.3 A
Power Factor Correction (PFC) typeActive
Power protection featuresOver current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage
Total power1000 W
Ports & interfaces
Cabling typeFully-Modular
EPS power connector (4+4 pin)Yes
EPS power connector (8-pin)Yes
Motherboard power cable length600 mm
Motherboard power connector24-pin ATX
Number of SATA power cables3
Number of SATA power connectors8
PCI Express power cable length560 mm
PCI Express power connectors (12+4 pin)1
PCI Express power connectors (6+2 pin)3
Peripheral (Molex) power cable length880 mm
Peripheral (Molex) power connectors (4-pin)1
SATA power cable length560/720/880 mm
Performance
80 PLUS certification80 PLUS Gold
ATX version3.1
Bearing technologyFDB
Cybenetics certificationPlatinum
Mean time between failures (MTBF)100000 h
Power supply unit (PSU) form factorATX
PurposePC
Design
Cooling typeActive
Fan diameter120 mm
Fan locationTop
IlluminationNo
LED indicatorsNo
Number of fans1 fan(s)
On/off fan switchNo
On/off switchYes
Product colourBlack
Packaging content
Cables includedAC
Certificates
Compliance certificatesCB/CCC/CE/Federal Communications Commission (FCC)/RoHS/UKCA
Weight & dimensions
Depth150 mm
Height87 mm
Width140 mm
Packaging data
ManualYes
Package depth270 mm
Package height95 mm
Package typeBox
Package weight2740 g
Package width220 mm
Technical details
Doesn't containCadmium/Lead/Mercury
Sustainability certificatesErP
Logistics data
Warranty period10 year(s)
