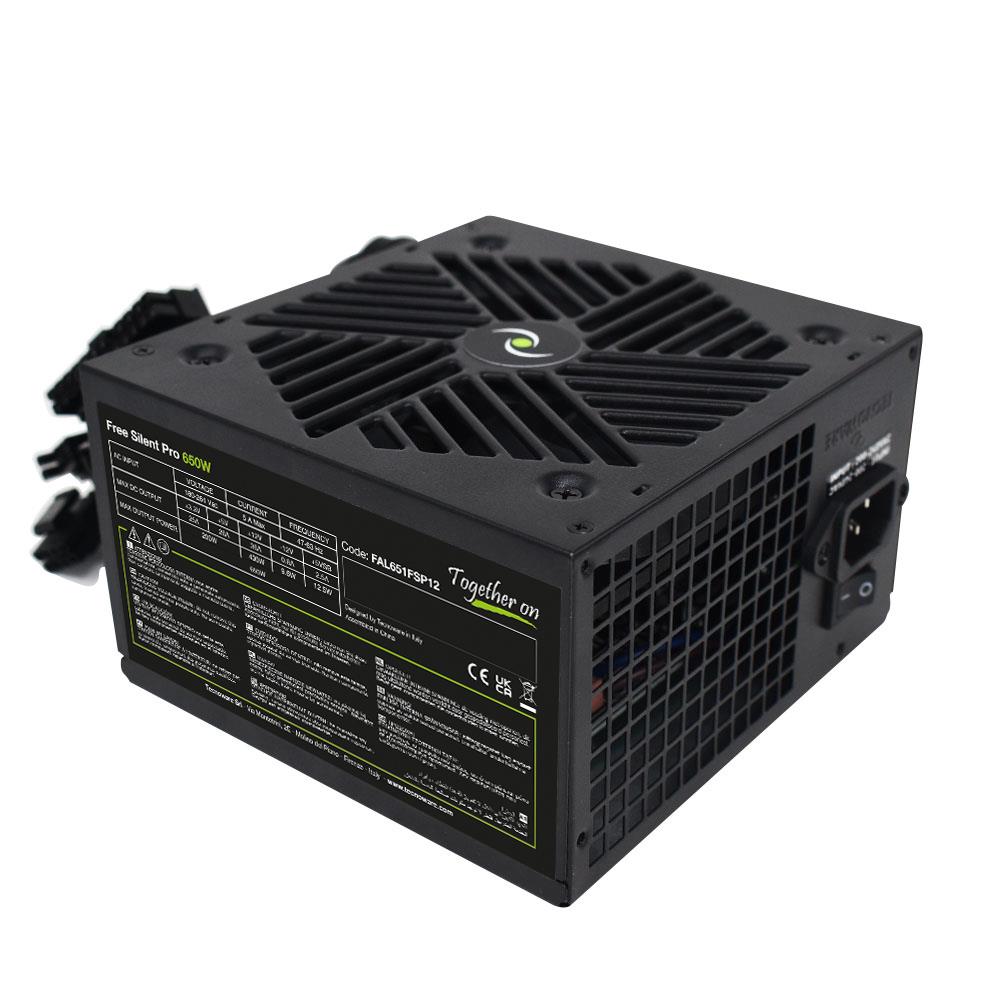

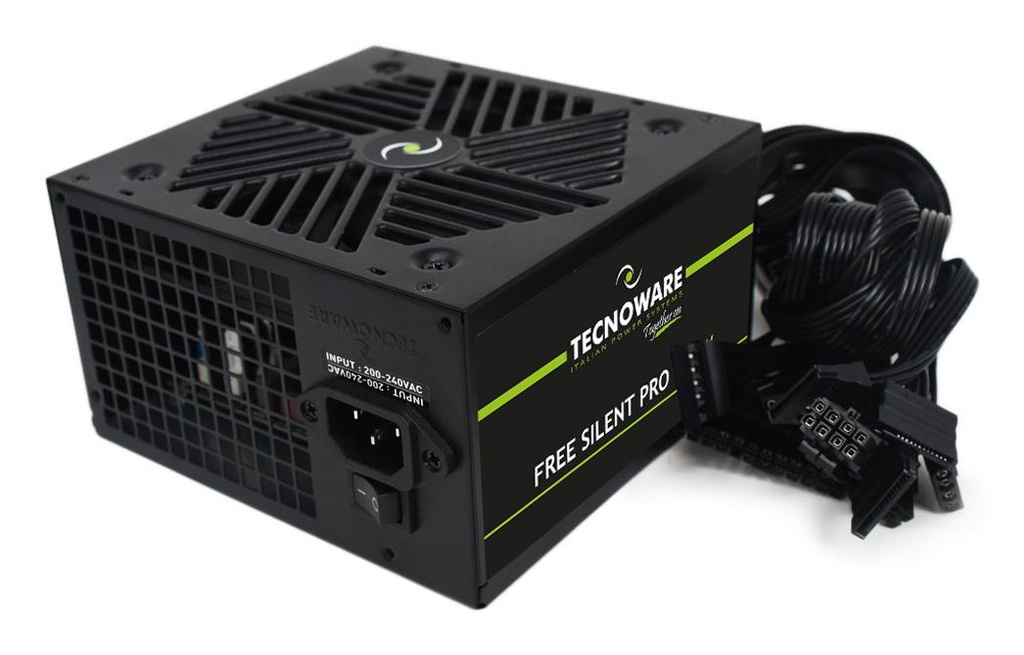

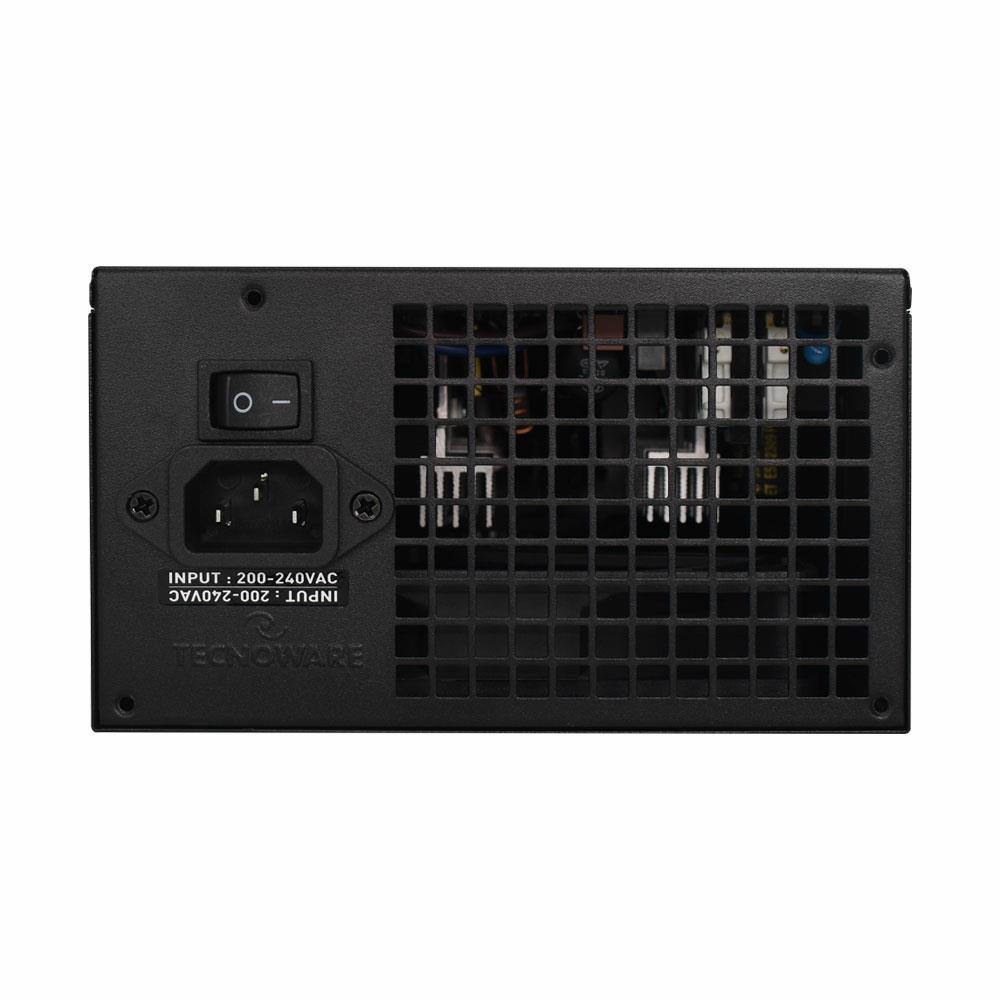

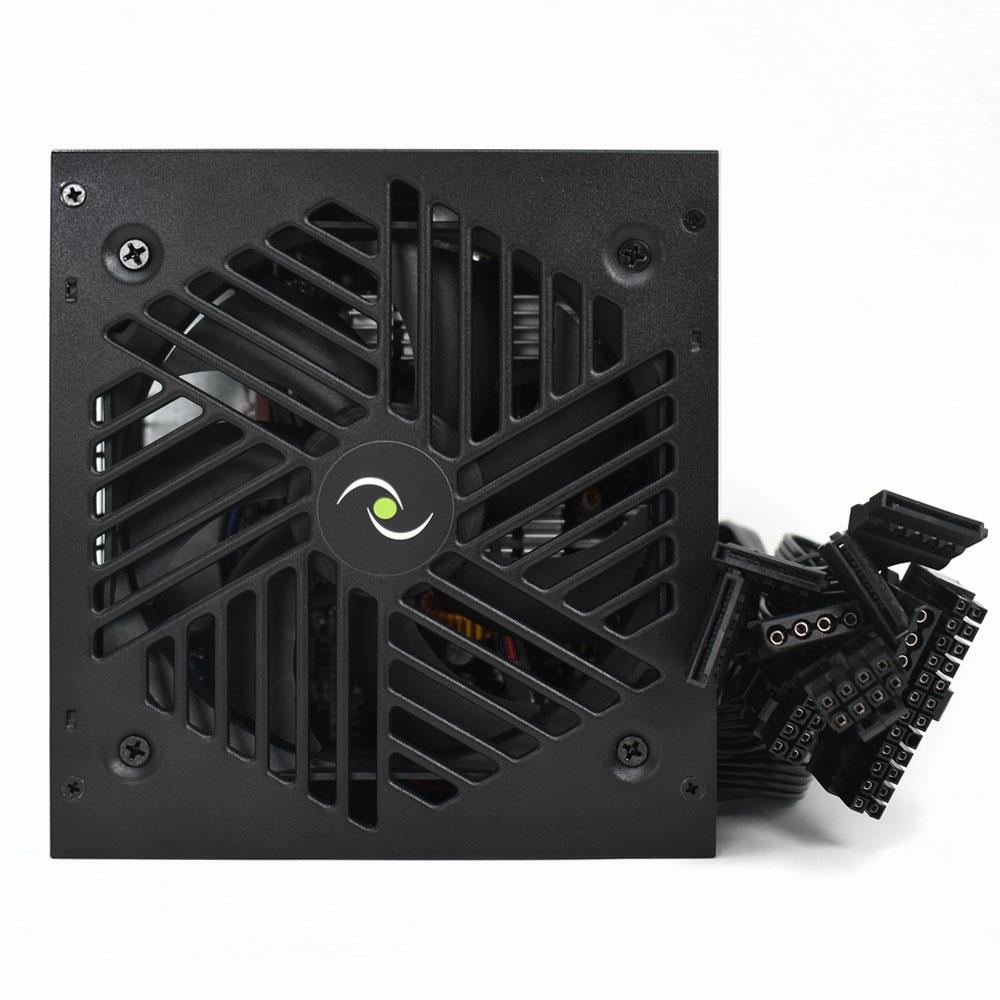

Internal power supply for personal computer, power 650W, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 1 x 6+2 PCI-E connector, 2 x Molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, RoHS.
- Internal Power Supply for Computers
- High Efficiency (>85%) and High Operation Noise
- Active PFC >0.9
- Dimensions: 140x86x150 mm (WxHxD)
- Input voltage 230 Vac 50Hz
- Temperature control of the fan speed
- Flat connection cables from 500mm to 800mm
- Surge protection
- Overload protection
- Short circuit protection
General
| Summary | Tecnoware FAL651FSP12. Total power: 650 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.155 |
| Name | CASE PSU ATX 650W/FAL651FSP12 TECNOWARE |
Power
| Power protection features | Overload/Short circuit/Surge protection |
| Efficiency | 85 % |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5V) | 26 A |
| Max output current (+12V) | 26 A |
| Max output current (+3.3V) | 25 A |
| Power Factor Correction (PFC) type | Active |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 180 - 264 V |
| Total power | 650 W |
Ports & interfaces
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Number of SATA power connectors | 4 |
| Motherboard power connector | 24-pin ATX |
Performance
| ATX version | 2.31 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| 80 PLUS certification | No |
Design
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 120 mm |
| Cooling type | Active |
| Product colour | Black |
Operational conditions
| Storage temperature (T-T) | -15 - 40 °C |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Weight | 1000 g |
| Height | 86 mm |
| Depth | 140 mm |
| Width | 150 mm |
ELKO Logistics Data
| Units per Pallet | 0 |
| Units per Shipping Box | 8 |
| Product Net Weight | 1 kg |
| Unit Calculated Weight | 1.25 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 40 cm |
| Shipping Box Depth | 45 cm |
| Shipping Box Height | 18 cm |
| Shipping Box Weight | 10 kg |
| Unit Calculated Volume | 0.00405 cubm |
