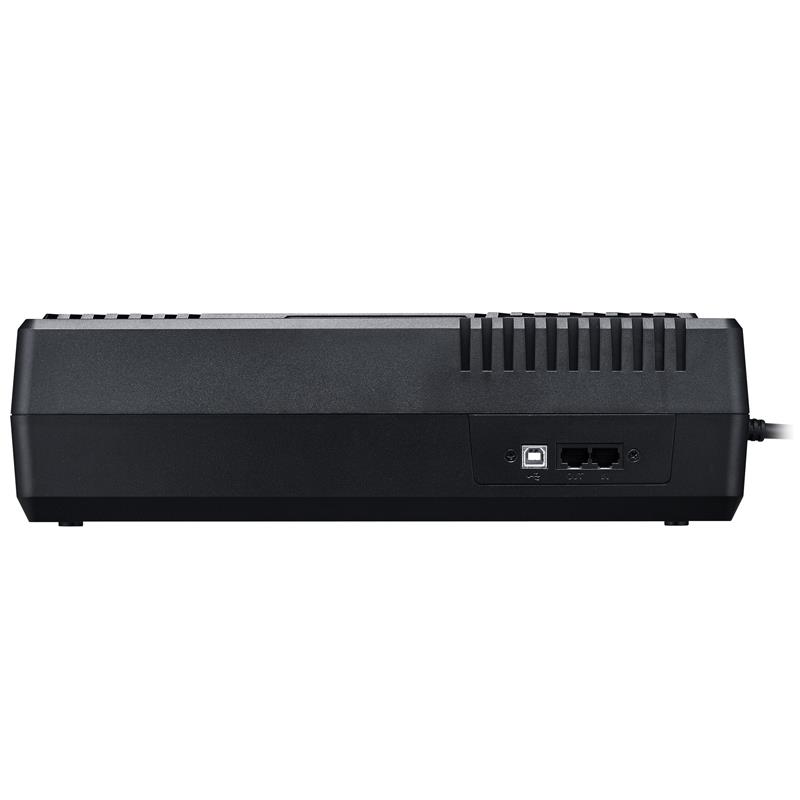

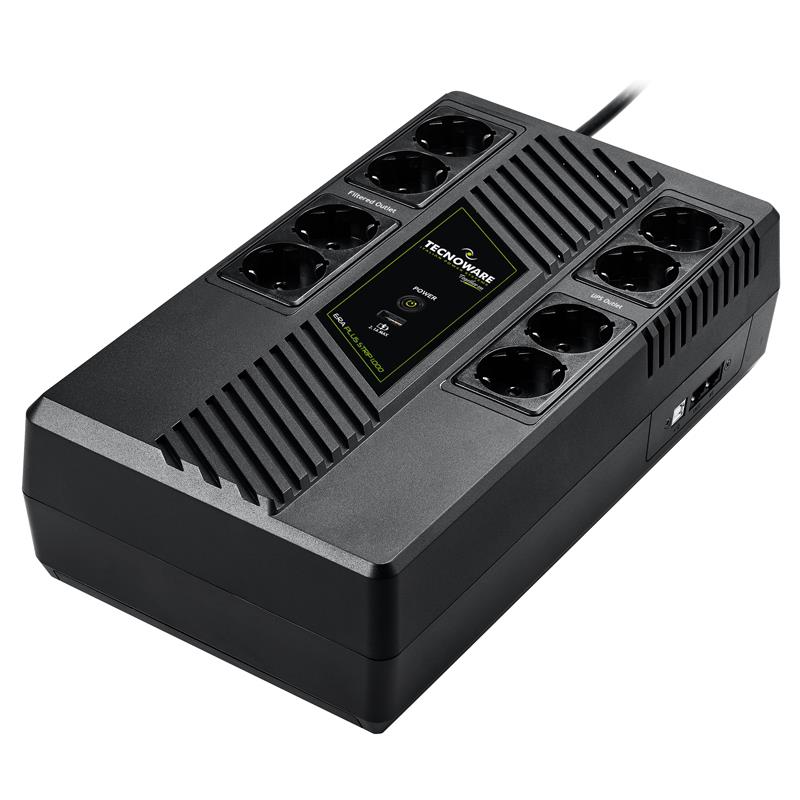

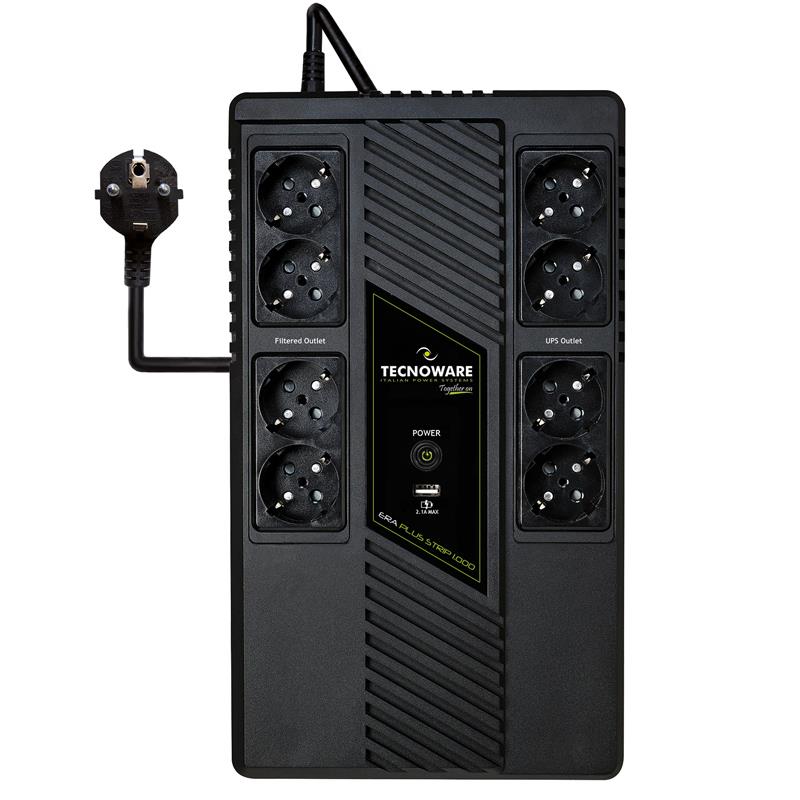

UPS ERA PLUS STRIP 1000VA TOGETHER ON. Line interactive plus technology. Dimensions 20x10x34,5 cm, weight 4,4 kg, Backup time up to 20 min. Designed for PCs, printers, telematic cash registers and pos. It has 4 schuko/italian 10A type outputs protected against blackout, overvoltages and undervoltages and 4 schuko /italian 10A type outputs protected against overvoltages and undervoltages. Equipped with LED for signaling the operating status and a USB interface for UPS control and on/off programming via the free Tecnomanager software.
- Complete protection against blackout and power surges (overvoltages and undervoltages)
- Recommended for Personal Computers, DVR / NVR and video surveillance systems, ADSL / fiber modem, switch / router, cash registers
- Not suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motors
- AVR Automatic Voltage Regulator electronic circuit
- n°8 Italian/Schuko output sockets and n°1 schuko input cable
- n°4 sockets outlets protected against blackout
- n°4 sockets outlets protected against overvoltages
- Multifunction LED and on-off button
- USB port for UPS control and monitoring and on / off programming via Tecnomanager software
- USB on the front for fast smartphone/tablet charging
- UPS TecnoManager management software compatible with Windows, Mac OS X, Linux etc
General
| Unit Calculated Weight | 5.83 kg |
| Unit Calculated Volume | 0.02042 cubm |
| Units per Shipping Box | 3 |
| Units per Pallet | 0 |
| Summary | Tecnoware Era Plus Strip 1000. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 700 W. AC outlet types: Type F, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min. Form factor: Compact, Product colour: Black, Cooling type: Passive. Certification: CE |
| Unit Box Height | 0.27 |
| Unit Box Length | 0.43 |
| Unit Box Width | 0.15 |
Features
| Automatic Voltage Regulation (AVR) | Yes |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 230 V |
| Noise level | 40 dB |
| Number of output phases | 1 |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 230 V |
| Output power | 700 W |
| Output power capacity | 1 kVA |
| Power factor | 0.7 |
| Response time | 2 ms |
| UPS topology | Line-Interactive |
| Waveform | Pseudo sine |
Ports & interfaces
| AC outlet types | Type F |
| AC outlets quantity | 8 AC outlet(s) |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 10 min |
Design
| Cooling type | Passive |
| Form factor | Compact |
| Product colour | Black |
Operational conditions
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Certification | CE |
Weight & dimensions
| Depth | 345 mm |
| Height | 100 mm |
| Weight | 4400 g |
| Width | 200 mm |
Packaging data
| Package depth | 425 mm |
| Package height | 146 mm |
| Package width | 269 mm |
