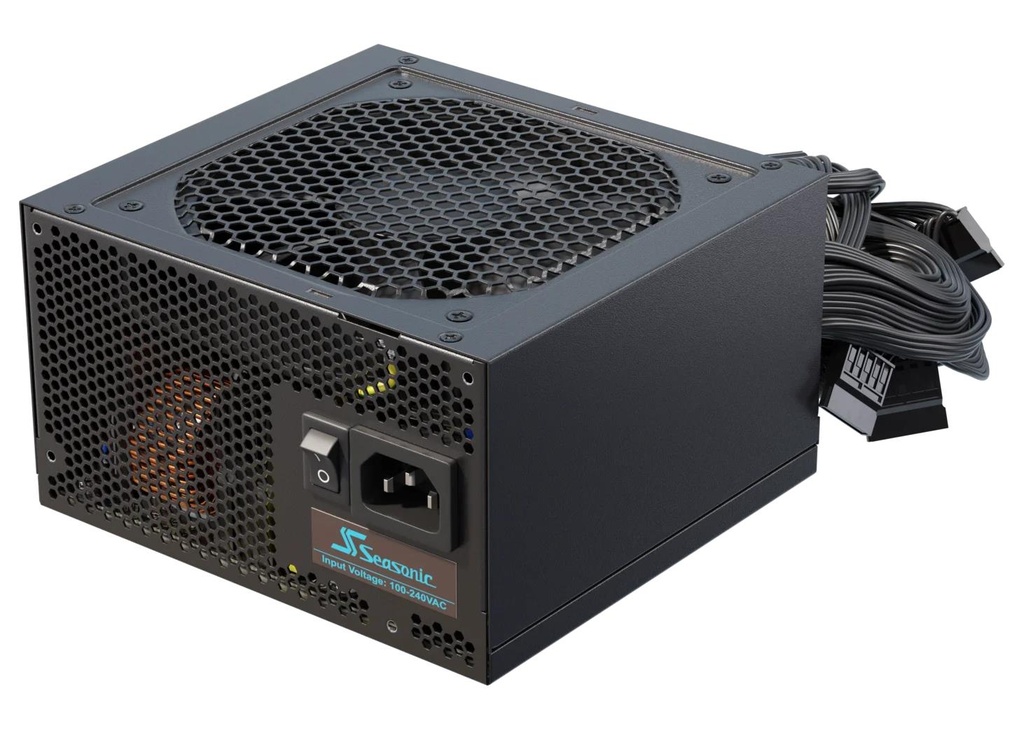

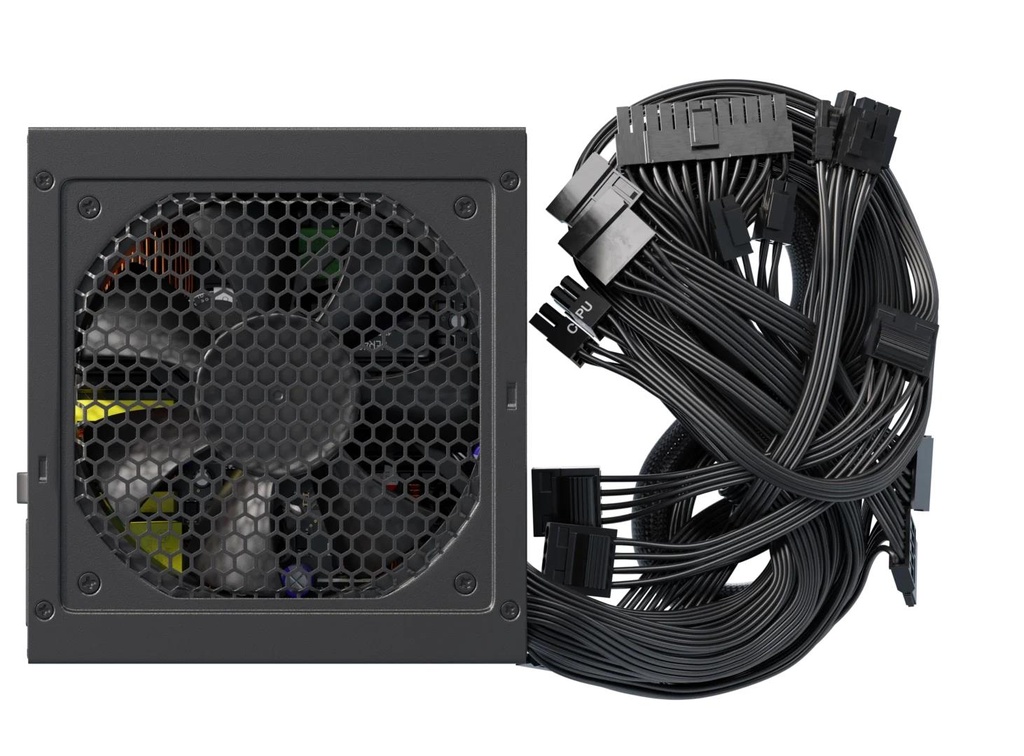

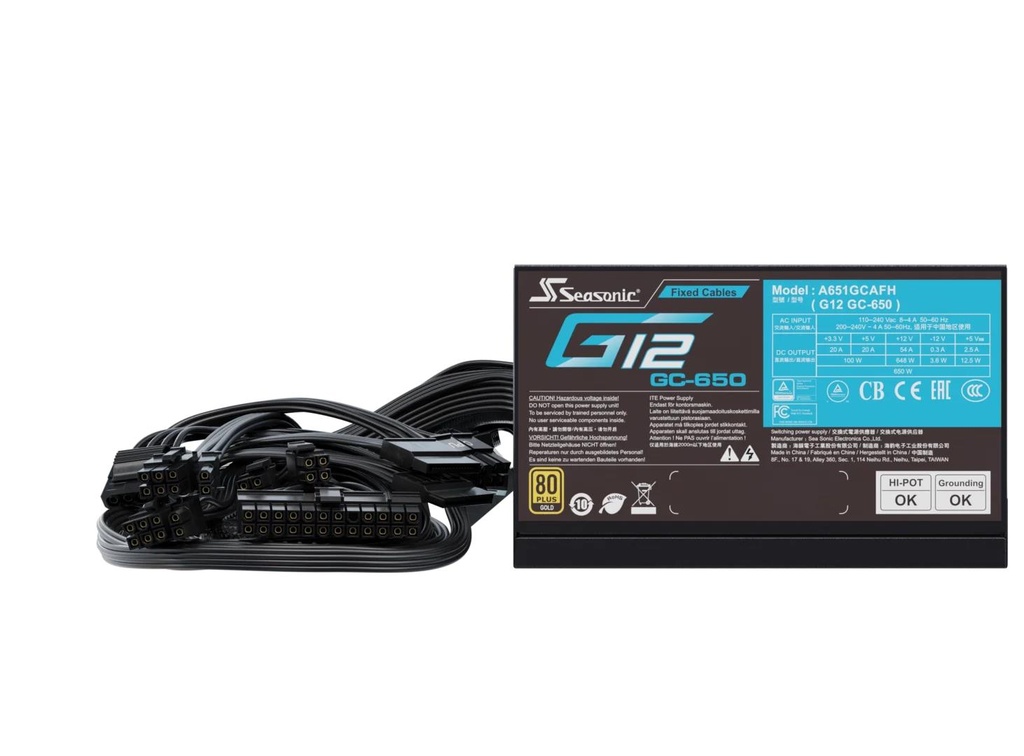

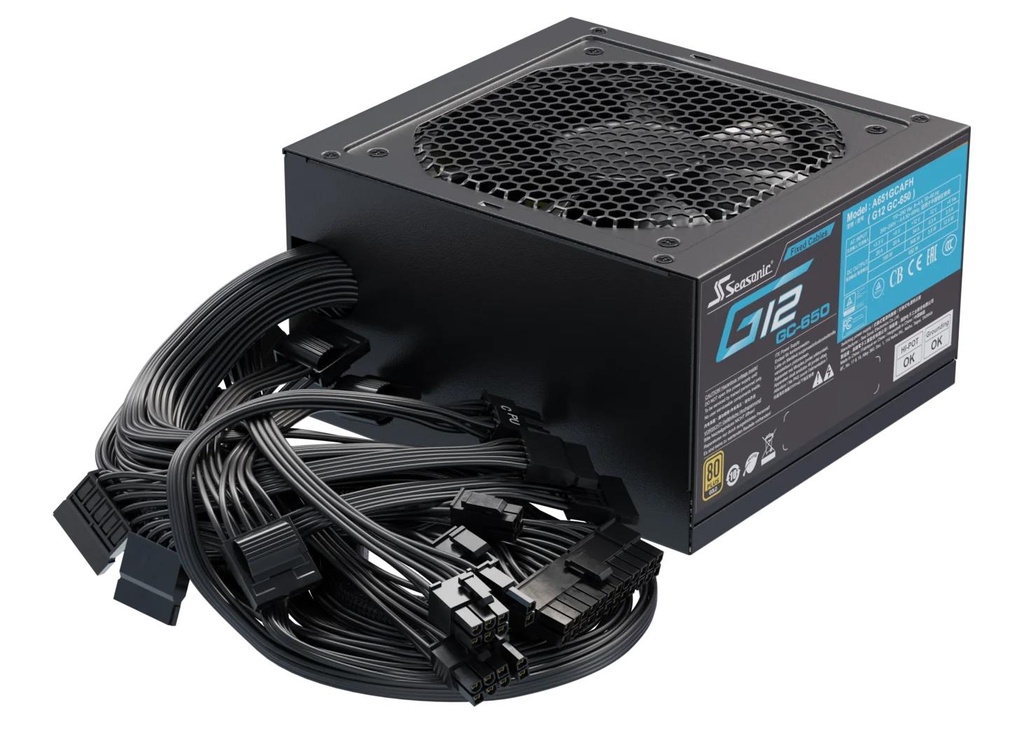

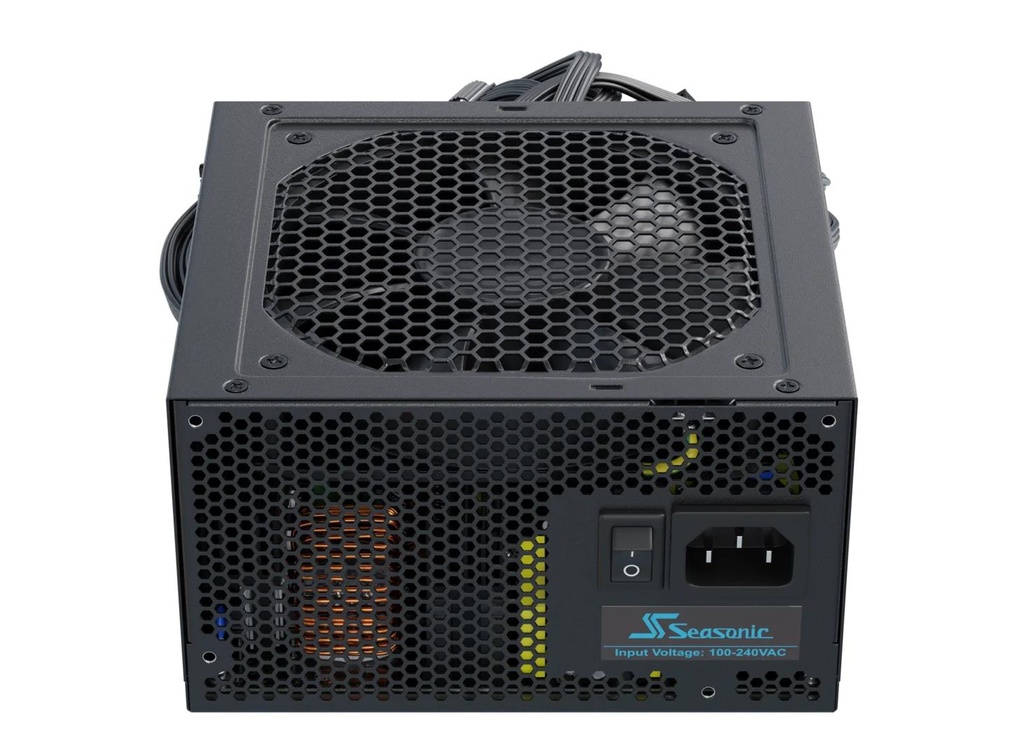

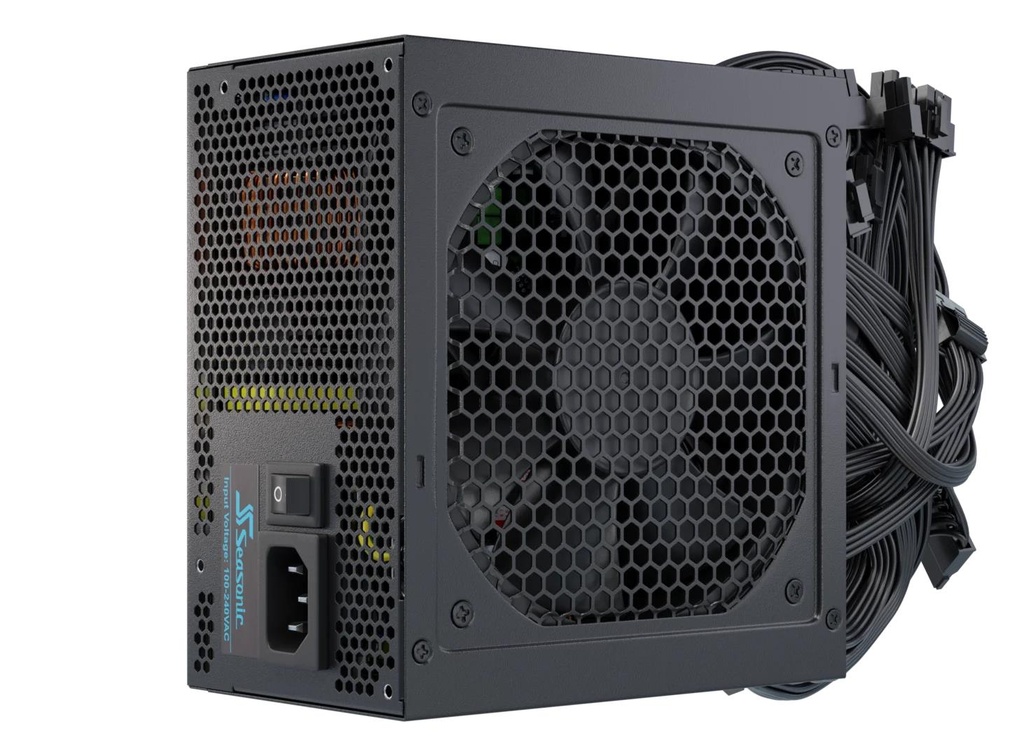

Seasonic Netzteil 650W G12 (GC-650)
The G12 GC Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GC-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GC series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GC units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).
General
| Unit Calculated Weight | 2.58 kg |
| Unit Calculated Volume | 0.007812 cubm |
| Units per Shipping Box | 5 |
| Units per Pallet | 0 |
| Summary | Seasonic Netzteil 650W G12 GC-650 80+Gold. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, SATA |
| Unit Box Height | 0.19 |
| Unit Box Length | 0.275 |
| Unit Box Width | 0.12 |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (+12V) | 648 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Efficiency | 90 % |
| Input current | 8 A |
| Max output current (+12V) | 54 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Power protection features | Over current/Over power/Over total voltage/Over voltage/Short circuit/Under voltage |
| Total power | 650 W |
Ports & interfaces
| Cabling type | Non-Modular |
Performance
| 80 PLUS certification | 80 PLUS Gold |
| Mean time between failures (MTBF) | 100000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
Packaging content
| Cables included | AC,CPU,PCIe,SATA |
Certificates
| Certification | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Compliance certificates | REACH/RoHS/WEEE |
Weight & dimensions
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
Packaging data
| Package type | Box |
