TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Core Clock:
- Extreme Performance: 2557 MHz (MSI Center)
- Boost: 2542 MHz
- TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred
- Core Pipe feature a square design to maximize contact with the GPU baseplate for optimal thermal management

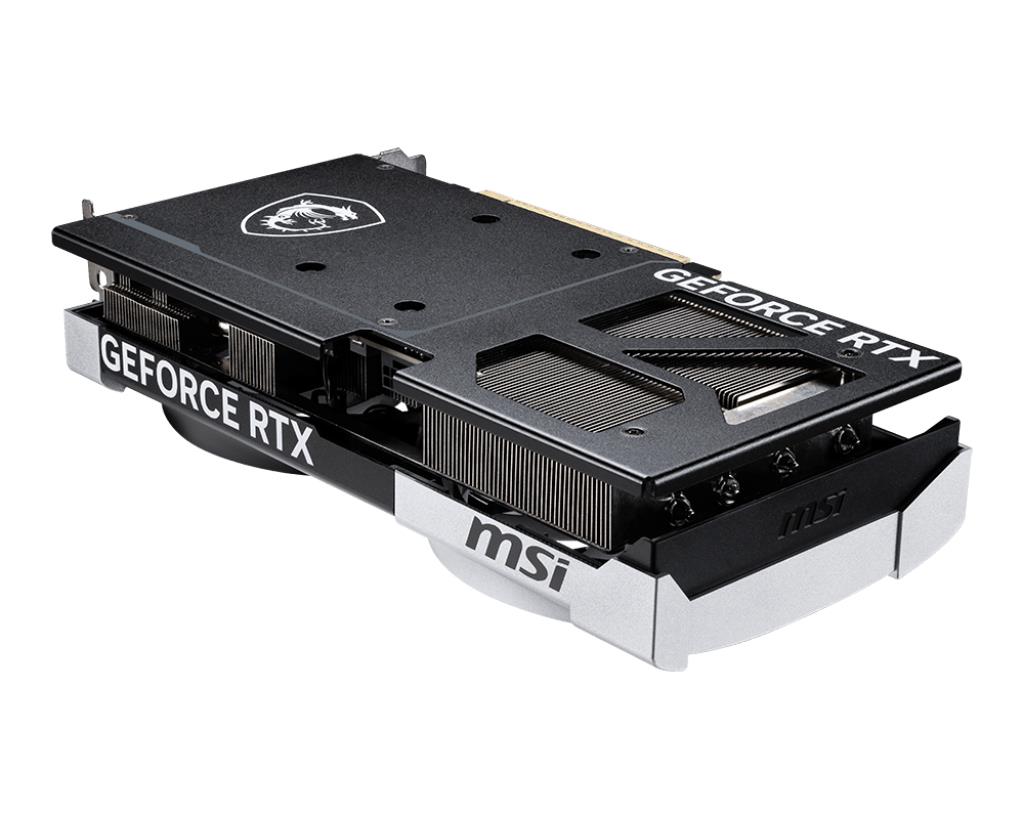

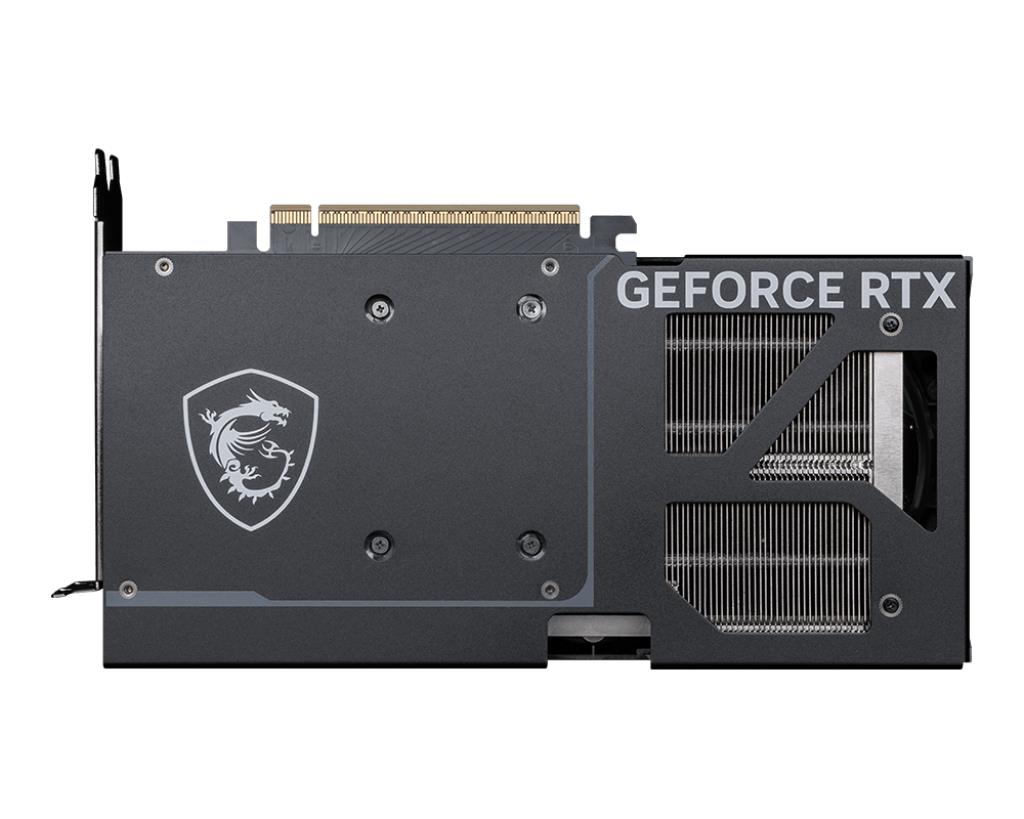

- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world
General
| Unit Calculated Weight | 1.38 kg |
| Product Net Weight | 0.774 kg |
| Unit Calculated Volume | 0.007875 cubm |
| Units per Shipping Box | 12 |
| Units per Pallet | 0 |

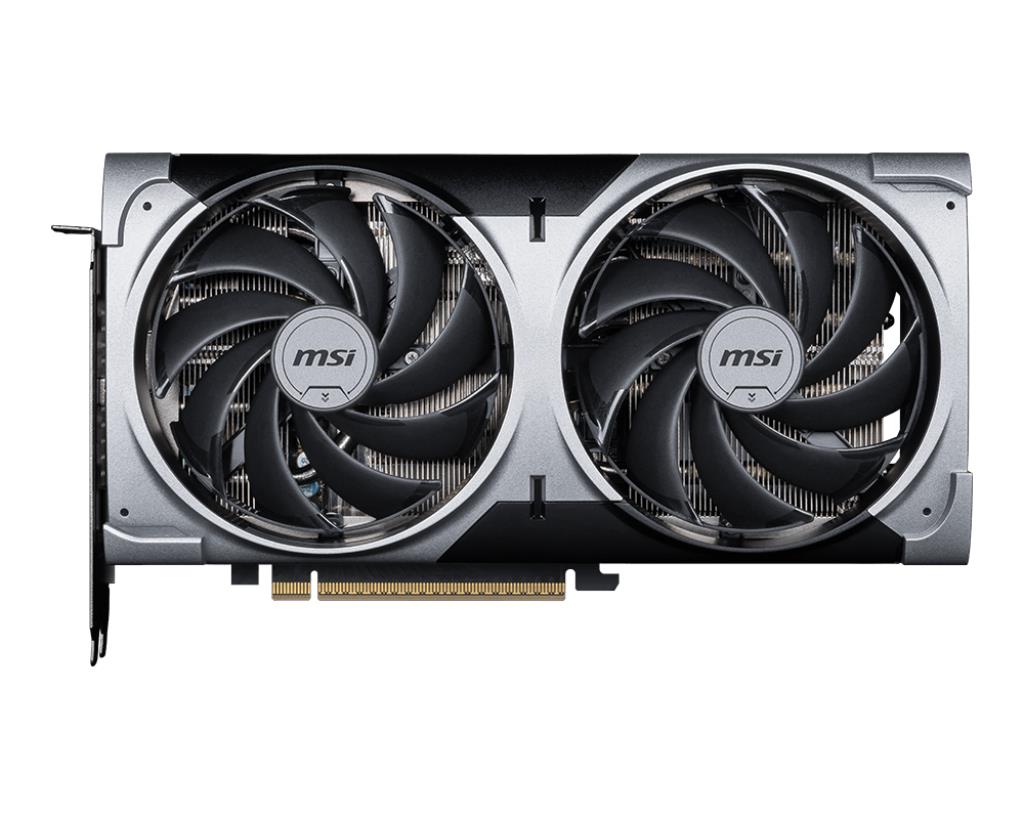

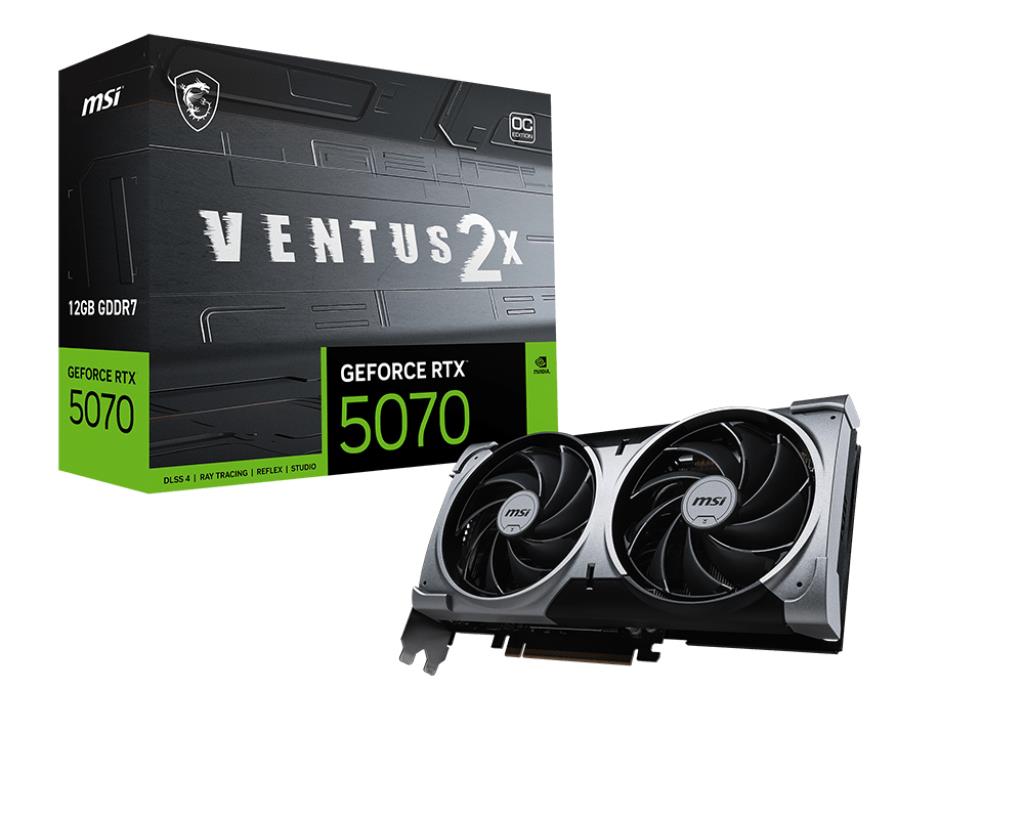

| Model | GeForce RTX™ 5070 12G VENTUS 2X OC |
| Summary | MSI GeForce RTX 5070 12G VENTUS 2X OC. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5070. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR7, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s) |
| Unit Box Height | 0.085 |
| Unit Box Length | 0.31 |
| Unit Box Width | 0.24 |
Processor
| CUDA | Yes |
| CUDA cores | 6144 |
| Graphics processor | GeForce RTX 5070 |
| Graphics processor family | NVIDIA |
| Maximum displays per videocard | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| Processor boost clock speed | 2542 MHz |
Memory
| Data transfer rate | 28 Gbit/s |
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 192 bit |

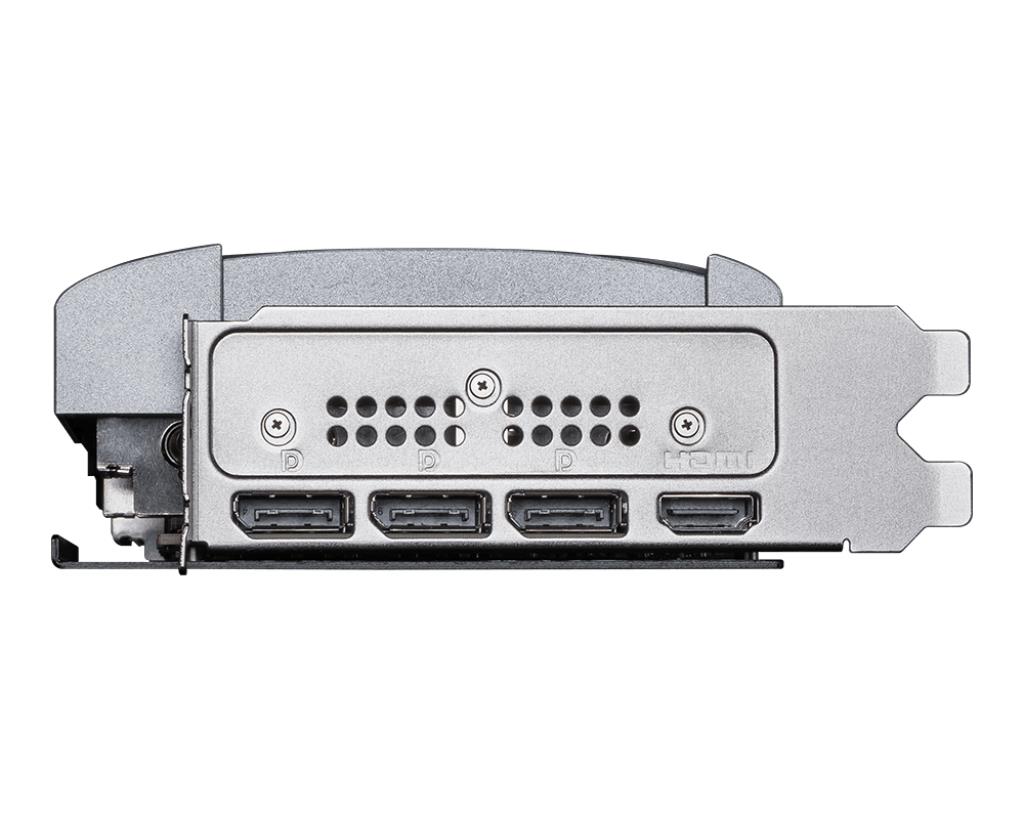

Ports & interfaces
| DisplayPort version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Interface type | PCI Express 5.0 |
Performance
| DirectX version | 12 Ultimate |
| Dual Link DVI | No |
| HDCP | Yes |
| NVIDIA G-SYNC | Yes |
| OpenGL version | 4.6 |
| Overclocked (OC) edition | Yes |
| TV tuner integrated | No |
Design
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| SFF ready | Yes |
Power
| Minimum system power supply | 650 W |
| Power consumption (typical) | 250 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Depth | 50 mm |
| Height | 126 mm |
| Length | 236 mm |
| Weight | 774 g |
Packaging data
| Package type | Box |
| Package weight | 1149 g |
Logistics data
| Products per shipping (inner) case | 1 pc(s) |
