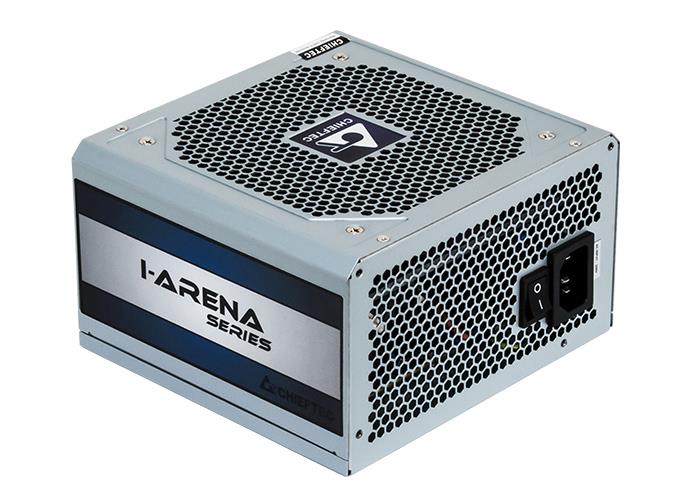

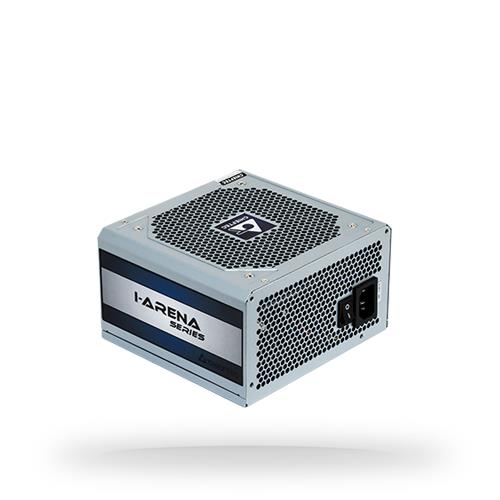

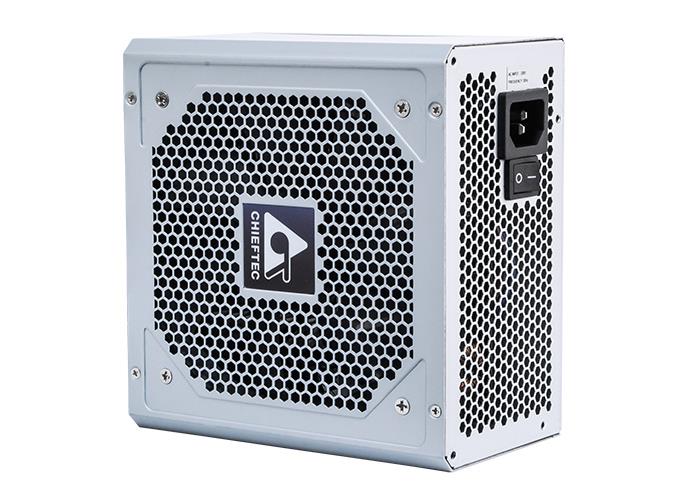

CASE PSU ATX 600W/GPC-600S CHIEFTEC
General
| Unit Calculated Weight | 1.6 kg |
| Unit Calculated Volume | 0.004625 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | Chieftec GPC-600S. Total power: 600 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 87 mm |
| CnCode | 85044095 |
| Unit Box Height | 0.225 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.085 |
Power
| AC input frequency | 50 Hz |
| AC input voltage | 230 V |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Input current | 6.3 A |
| Max output current (+12V1) | 45 A |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage |
| Total power | 600 W |
Ports & interfaces
| Cabling type | Non-Modular |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
Performance
| Power supply unit (PSU) form factor | PS/2 |
| Purpose | PC |
Design
| Fan diameter | 120 mm |
| Product colour | Silver |
Weight & dimensions
| Depth | 150 mm |
| Height | 87 mm |
| Width | 140 mm |
