In a continuous effort to align our high-end production with the extreme fast technological developments of the IT industry, CHIEFTEC introduces its NEW iARENA series. Initially dedicated to the SI market alone, the iARENA series has established a strong position amongst end users as well, owing to the implemented high-end components which have lead and proven longevity and ruggedness.
General
| Unit Calculated Weight | 1.65 kg |
| Unit Calculated Volume | 0.004671 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |

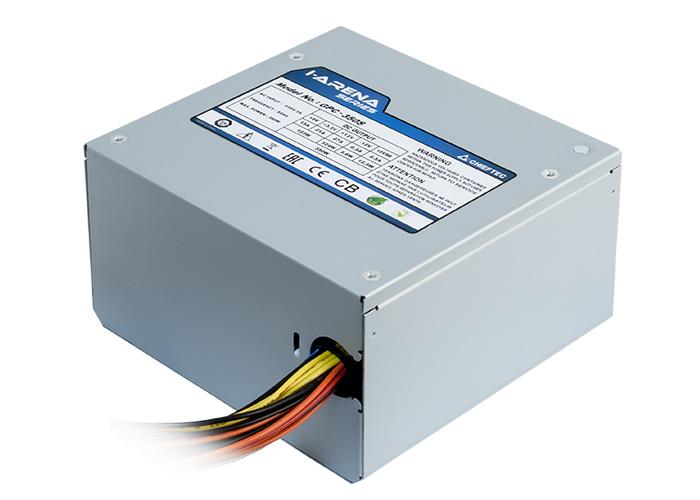

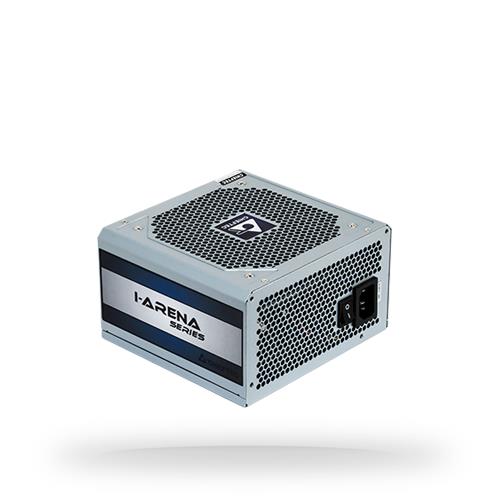

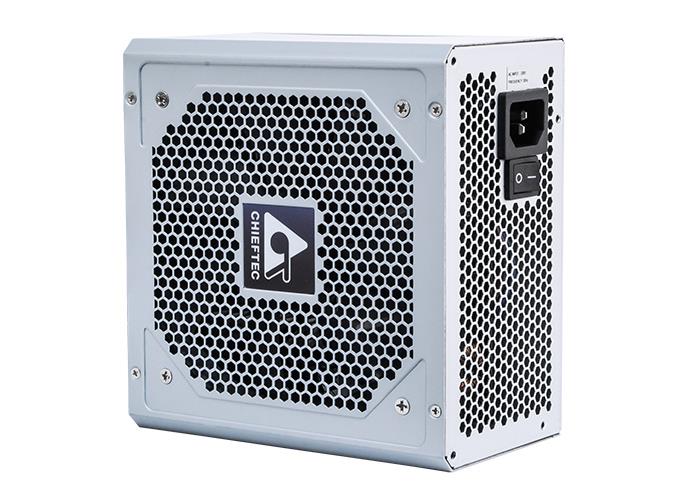

| Summary | Chieftec GPC-700S. Total power: 700 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 140 mm, Depth: 150 mm, Height: 87 mm |
| Unit Box Height | 0.21 |
| Unit Box Length | 0.145 |
| Unit Box Width | 0.09 |
Power
| AC input frequency | 50 Hz |
| AC input voltage | 230 V |
| Combined power (+3.3V) | 130 W |
| Combined power (+5Vsb) | 12.5 W |
| Input current | 6.3 A |
| Max output current (+12V1) | 52.5 A |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage |
| Total power | 700 W |
Ports & interfaces
| Cabling type | Non-Modular |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
Performance
| ATX version | 2.3 |
| Power supply unit (PSU) form factor | PS/2 |
| Purpose | PC |
Design
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Product colour | Silver |
Weight & dimensions
| Depth | 150 mm |
| Height | 87 mm |
| Width | 140 mm |
Logistics data
| Harmonized System (HS) code | 84733020 |
