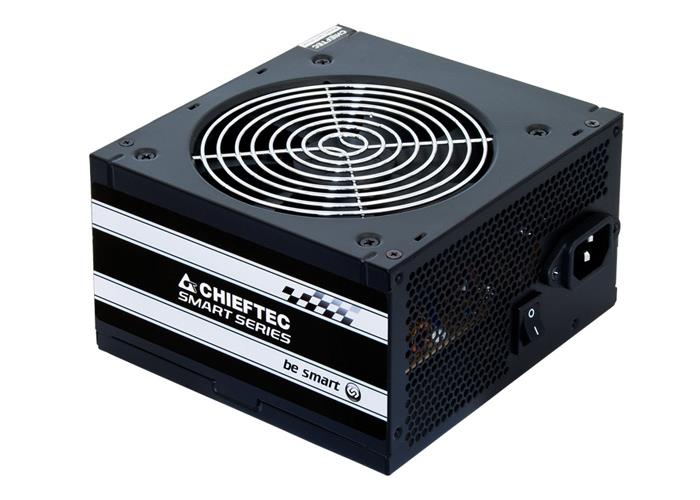

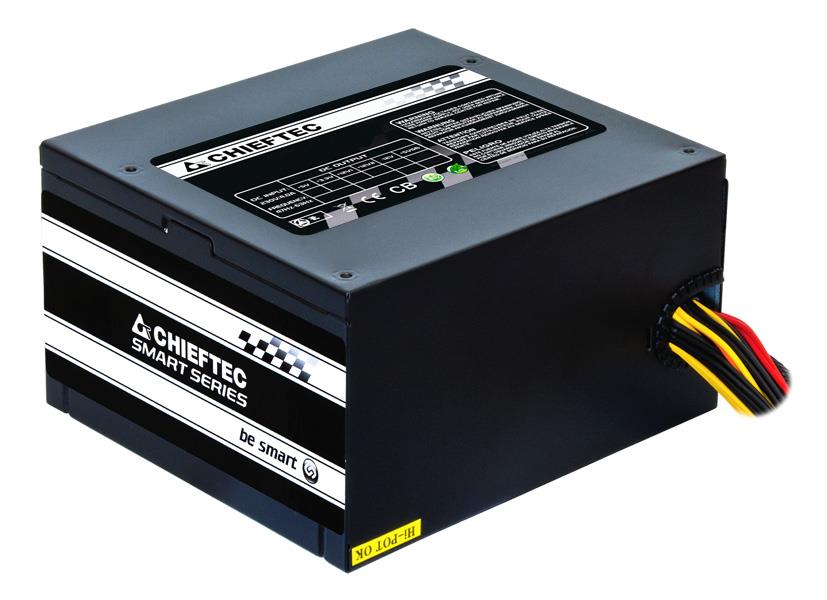

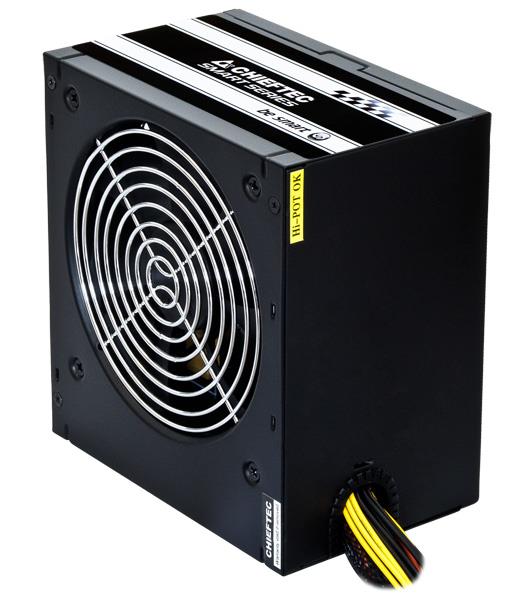

The smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.
General
| Unit Calculated Weight | 1.83 kg |
| Unit Calculated Volume | 0.004845 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Model name | GPS-700A8 |
| Summary | Chieftec Smart GPS-700A8. Total power: 700 W, AC input voltage: 230 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm |
| CnCode | 85044095 |
| Unit Box Height | 0.165 |
| Unit Box Length | 0.225 |
| Unit Box Width | 0.1 |
Power
| AC input voltage | 230 V |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Efficiency | 80 % |
| Max output current (+12V1) | 54 A |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage |
| Total power | 700 W |
Ports & interfaces
| Cabling type | Non-Modular |
| EPS power connector (8-pin) | Yes |
| Floppy drive power connector | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
Performance
| 80 PLUS certification | No |
| ATX version | 2.3 |
| Power supply unit (PSU) form factor | PS/2 |
| Purpose | PC |
Design
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Product colour | Black |
Weight & dimensions
| Depth | 140 mm |
| Height | 87 mm |
| Weight | 1620 g |
| Width | 150 mm |
