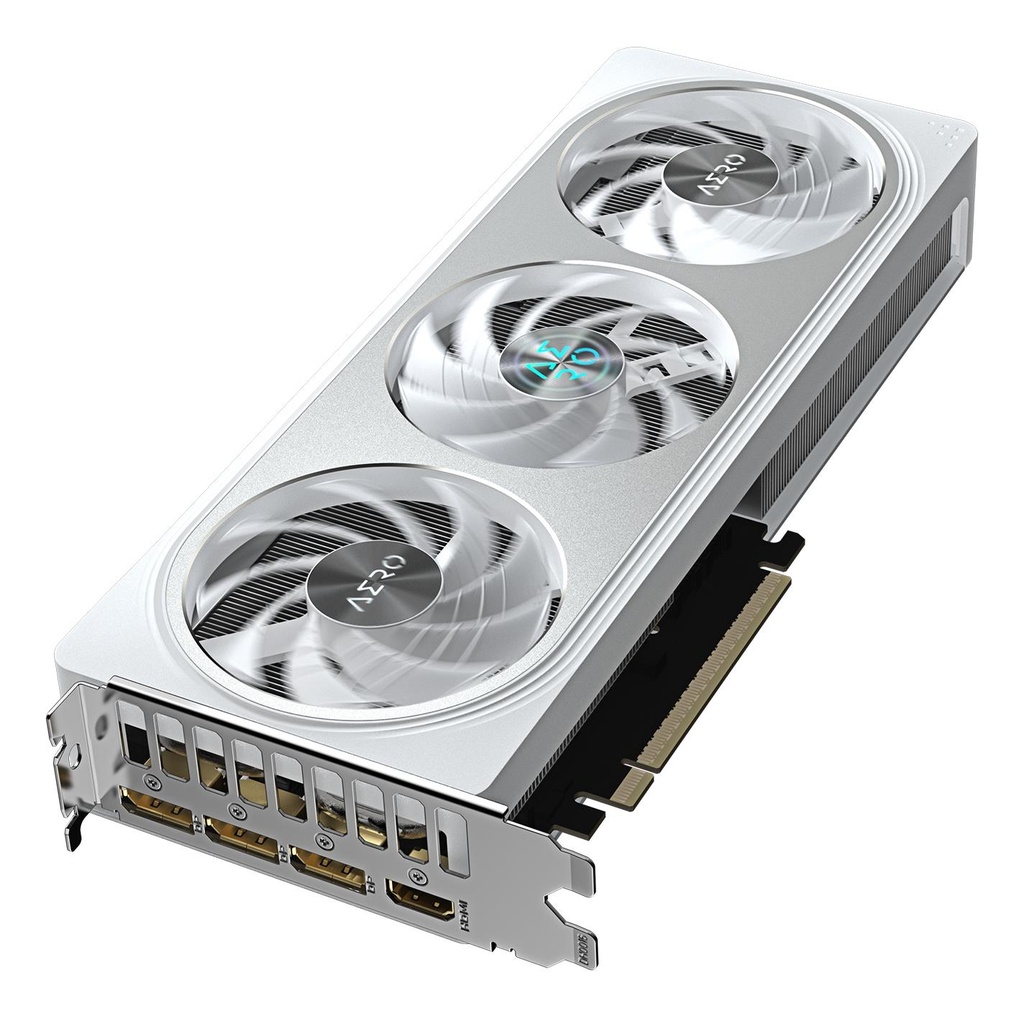

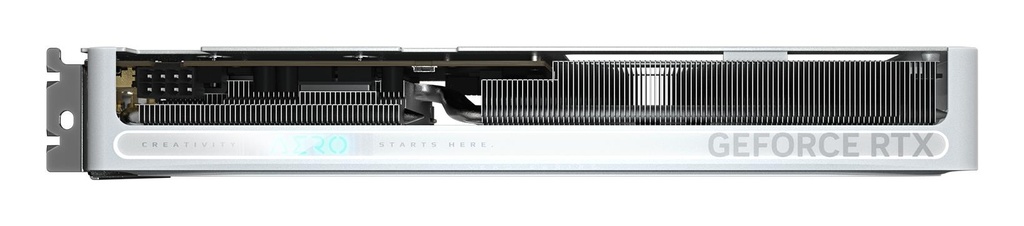

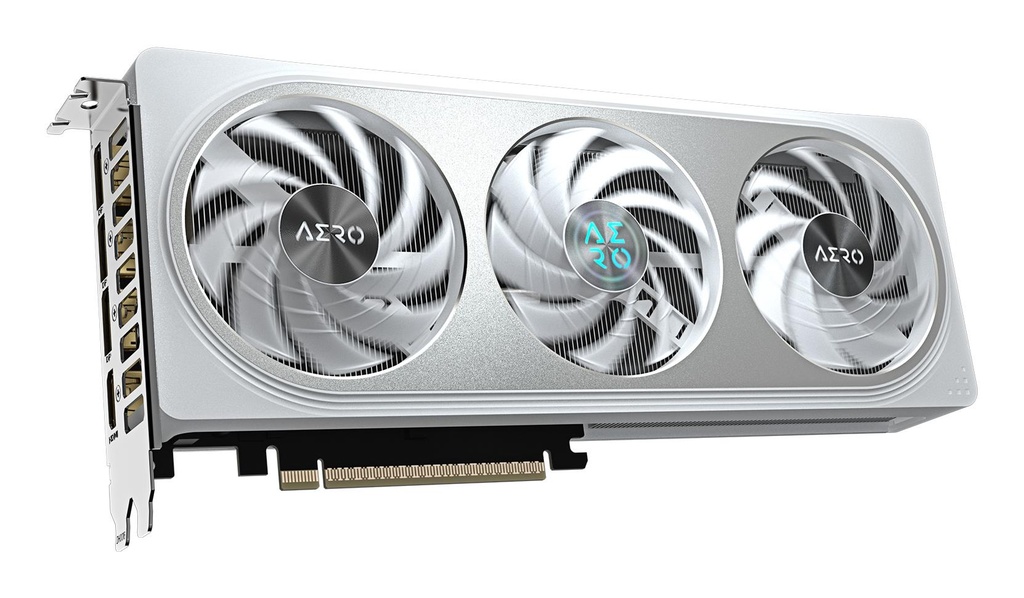

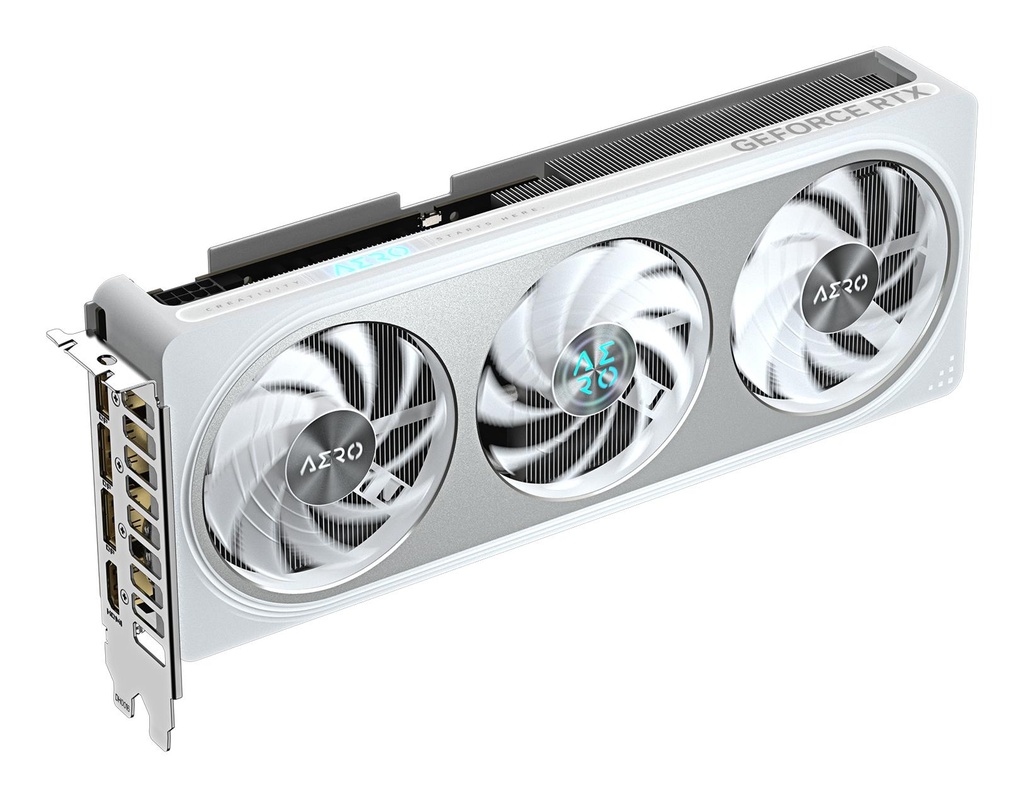

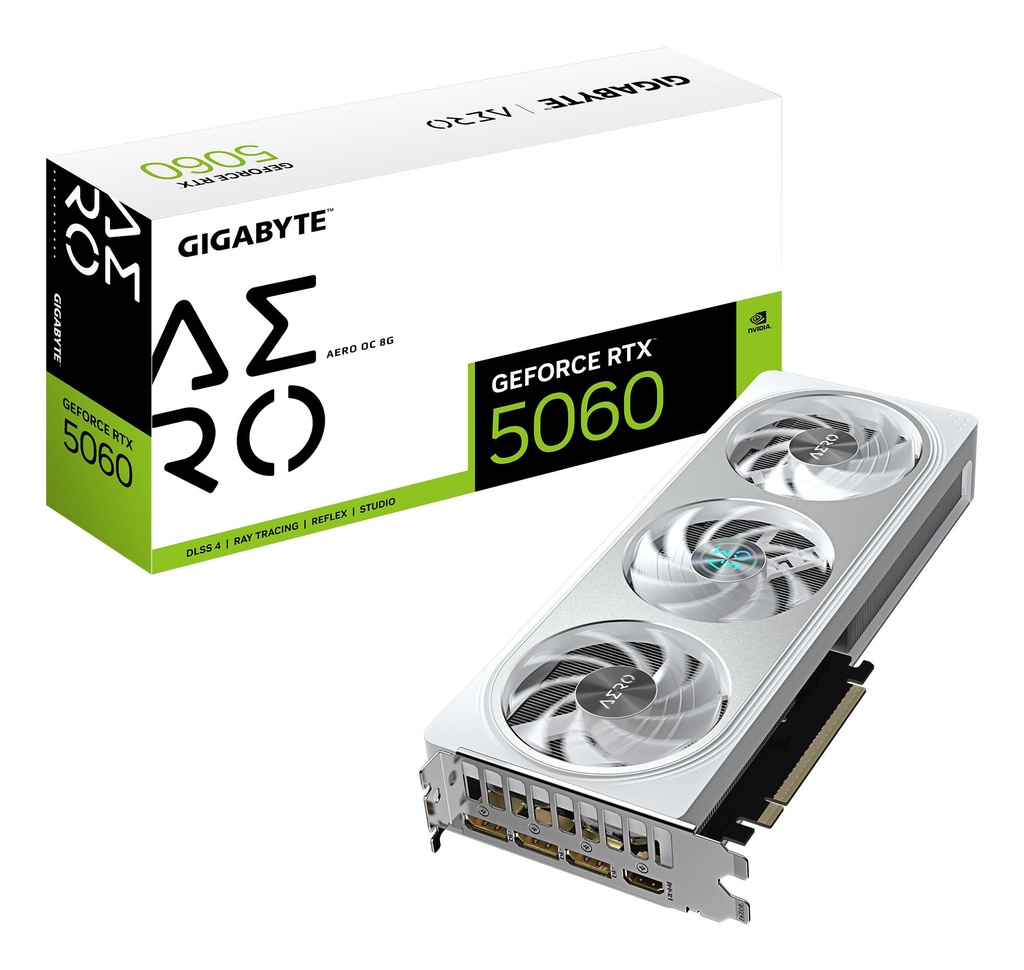

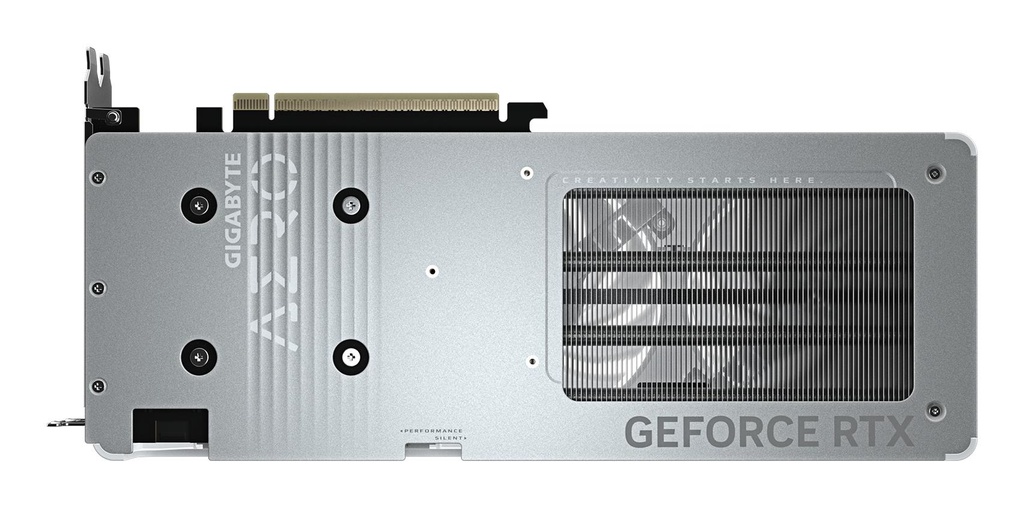

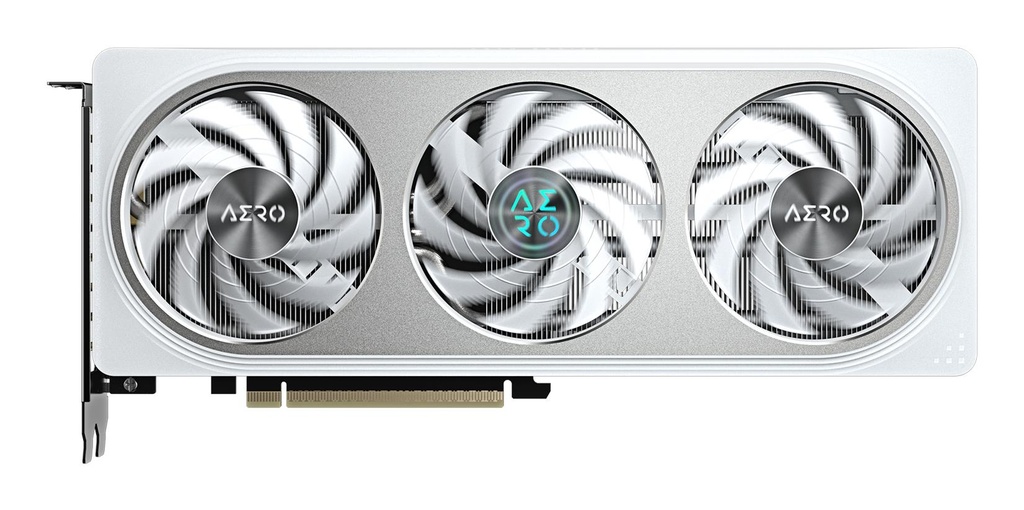

GIGABYTE GeForce RTX 5060 AERO OC 8G
Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5060
- Integrated with 8GB GDDR7 128bit memory interface
- WINDFORCE cooling system
- RGB Lighting
- Dual BIOS (Performance / Silent)
- Reinforced structure
General
| Unit Calculated Weight | 1.285 kg |
| Product Net Weight | 0.6 kg |
| Unit Calculated Volume | 0.0068825 cubm |
| Units per Shipping Box | 10 |
| Model | GV-N5060AERO OC-8GD |
| Summary | GIGABYTE GeForce RTX 5060 AERO OC 8G Graphics Card - 8GB GDDR7, 128bit, PCI-E 5.0, 2595 MHz Core Clock, 3 x DisplayPort, 1 x HDMI, GV-N5060AERO OC-8GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060, Processor frequency: 2595 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit, Memory clock speed: 28000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi |
| Unit Box Height | 0.081 |
| Unit Box Length | 0.361 |
| Unit Box Width | 0.187 |
Processor
| CUDA | Yes |
| CUDA cores | 3840 |
| Graphics processor | GeForce RTX 5060 |
| Graphics processor family | NVIDIA |
| Maximum displays per videocard | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Processor frequency | 2595 MHz |
Memory
| Data transfer rate | 28 Gbit/s |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Memory clock speed | 28000 MHz |

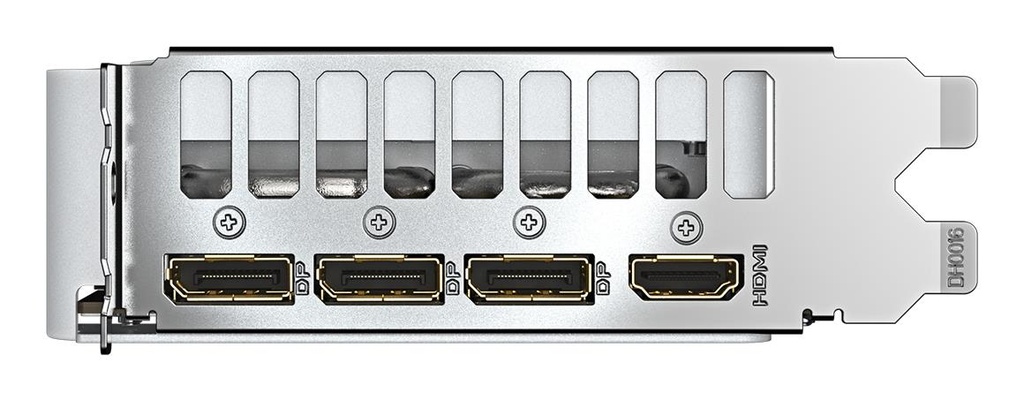

Ports & interfaces
| DisplayPort version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Interface type | PCI Express 5.0 |
Performance
| DirectX version | 12.0 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| OpenGL version | 4.6 |
| Overclocked (OC) edition | Yes |
| TV tuner integrated | No |
| Warranty period | 3 year(s) |
Design
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Illumination colour | Multi |
| Number of fans | 3 fan(s) |
| Number of slots | 2 |
| Product colour | White |
Power
| Minimum system power supply | 500 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 109 W |
Weight & dimensions
| Depth | 40 mm |
| Height | 117 mm |
| Length | 281 mm |
| Weight | 790 g |
Packaging data
| Package depth | 354 mm |
| Package height | 75 mm |
| Package type | Box |
| Package weight | 1140 g |
| Package width | 182.5 mm |
Packaging content
| Quick installation guide | Yes |
Logistics data
| Products per shipping (inner) case | 1 pc(s) |
