GIGABYTE GeForce RTX 5060 EAGLE OC ICE 8G
Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5060
- Integrated with 8GB GDDR7 128bit memory interface
- WINDFORCE cooling system
- Reinforced structure
General
| Unit Calculated Weight | 0.88 kg |
| Product Net Weight | 0.67 kg |
| Unit Calculated Volume | 0.0054486 cubm |
| Units per Shipping Box | 10 |
| Model | GV-N5060EAGLEOC ICE-8GD |
| Summary | GIGABYTE GeForce RTX 5060 EAGLE OC ICE 8G Graphics Card - 8GB GDDR7, 128bit, PCI-E 5.0, 2550 MHz Core Clock, 3 x DisplayPort, 1 x HDMI, GV-N5060EAGLEOC ICE-8GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060, Processor frequency: 2550 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit, Memory clock speed: 28000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s) |
| CnCode | 84718000 |
| Unit Box Height | 0.058 |
| Unit Box Length | 0.335 |
| Unit Box Width | 0.238 |
Processor
| CUDA | Yes |
| CUDA cores | 3840 |
| Graphics processor | GeForce RTX 5060 |
| Graphics processor family | NVIDIA |
| Maximum displays per videocard | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Processor frequency | 2550 MHz |
Memory
| Data transfer rate | 28 Gbit/s |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Memory clock speed | 28000 MHz |

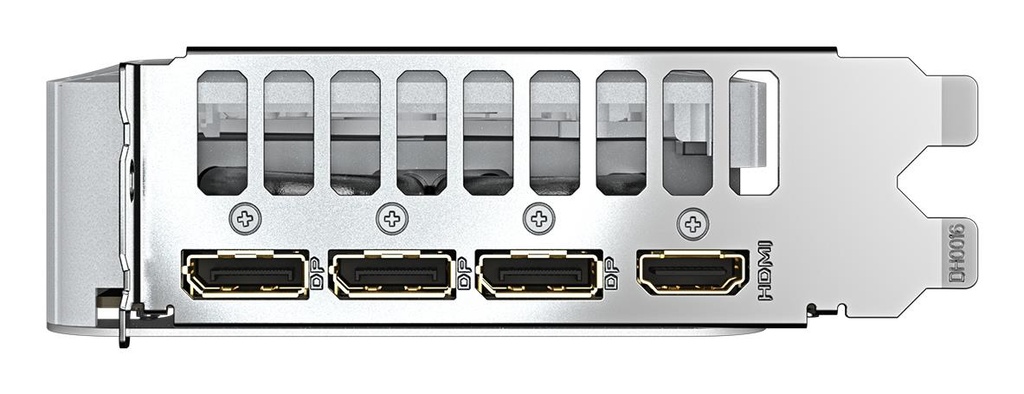

Ports & interfaces
| DisplayPort version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Interface type | PCI Express 5.0 |
Performance
| DirectX version | 12.0 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| OpenGL version | 4.6 |
| Overclocked (OC) edition | Yes |
| TV tuner integrated | No |
| Warranty period | 3 year(s) |
Design
| Cooling technology | GIGABYTE WINDFORCE 2X |
| Cooling type | Active |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of fans | 2 fan(s) |
| Number of slots | 2 |
| Product colour | White |
Power
| Minimum system power supply | 450 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 109 W |
Weight & dimensions
| Depth | 40 mm |
| Height | 120 mm |
| Length | 208 mm |
| Weight | 540 g |
Packaging data
| Package depth | 330 mm |
| Package height | 57 mm |
| Package type | Box |
| Package weight | 880 g |
| Package width | 235 mm |
Logistics data
| Products per shipping (inner) case | 1 pc(s) |
