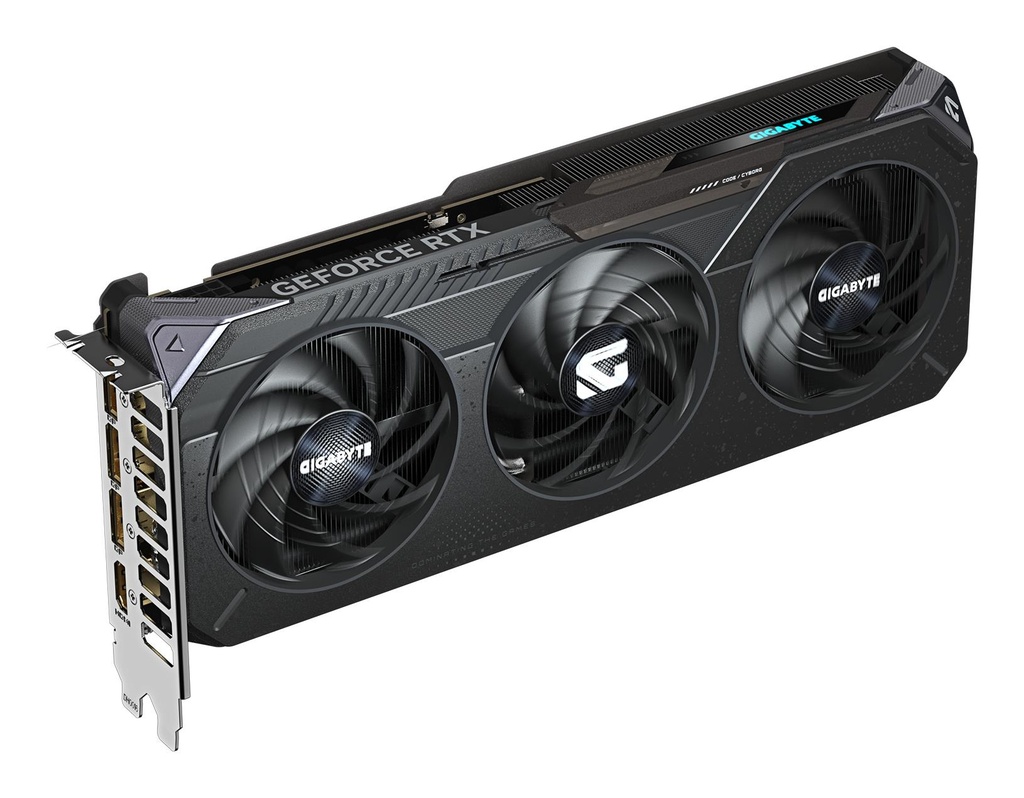

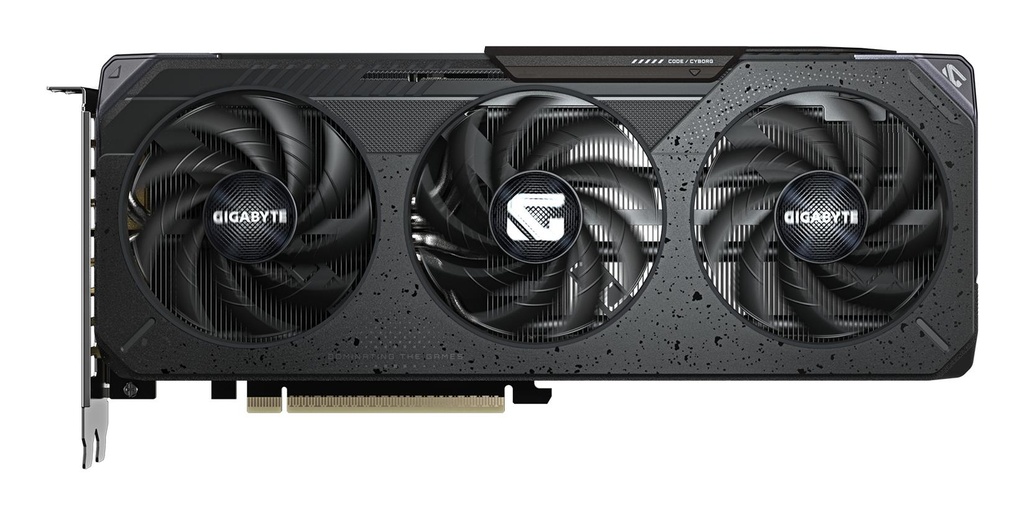

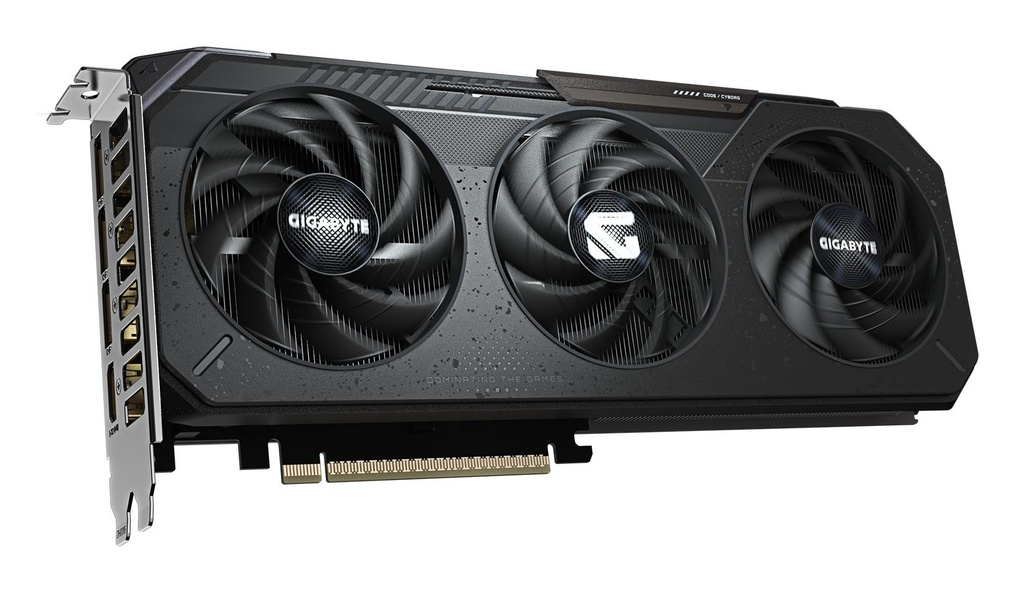

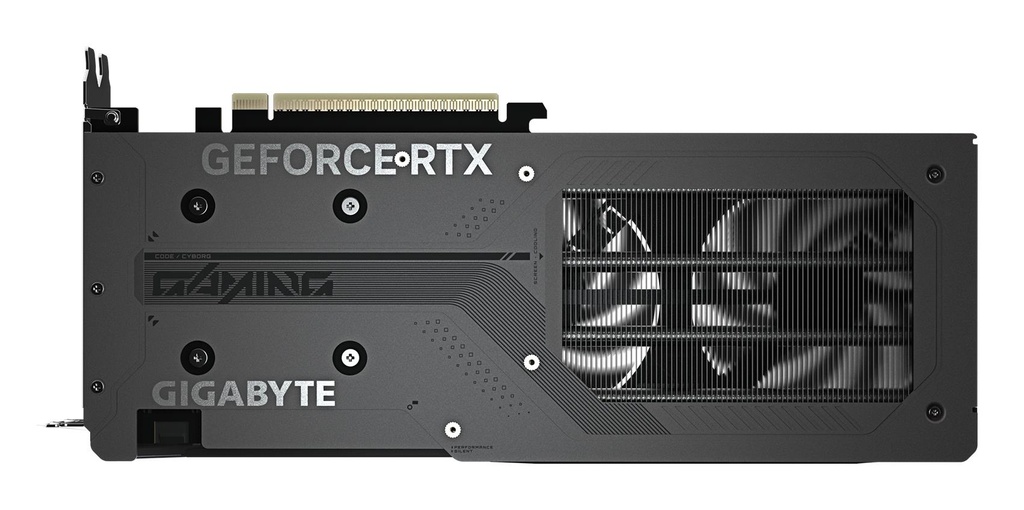

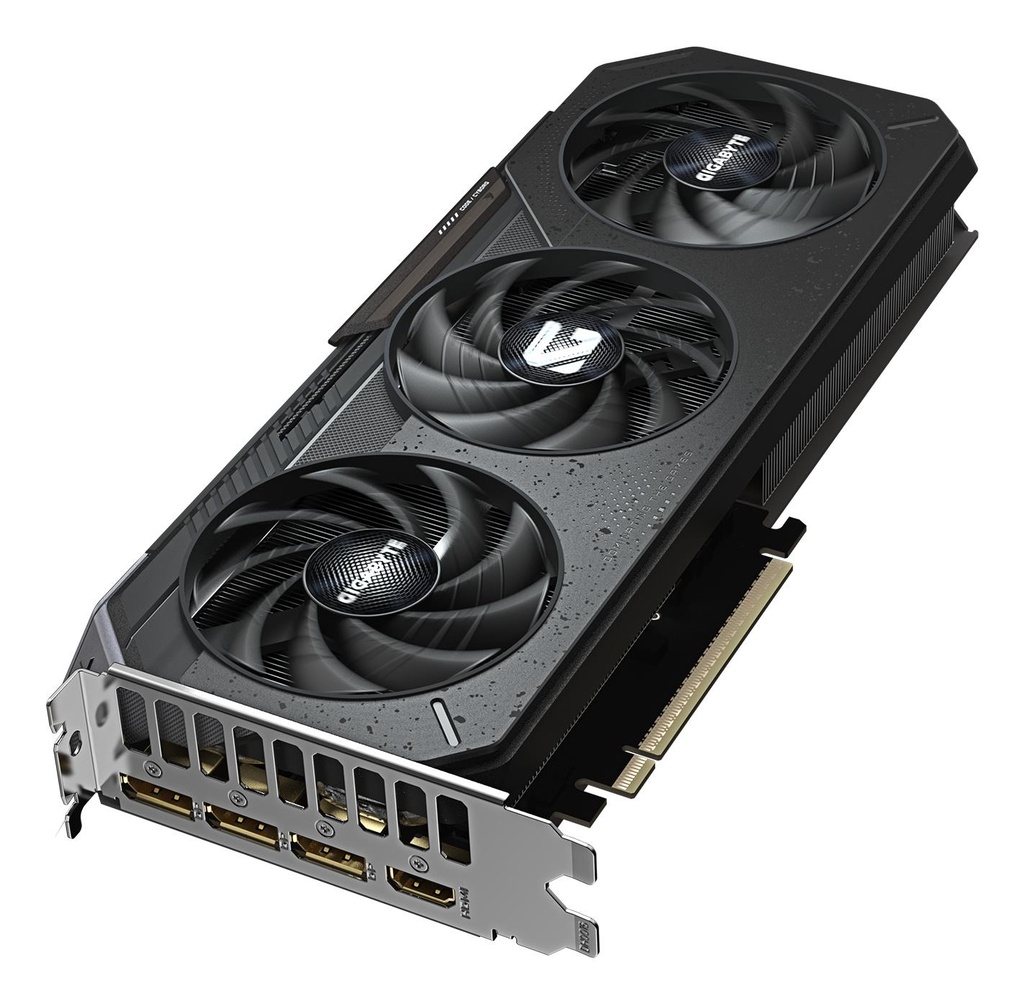

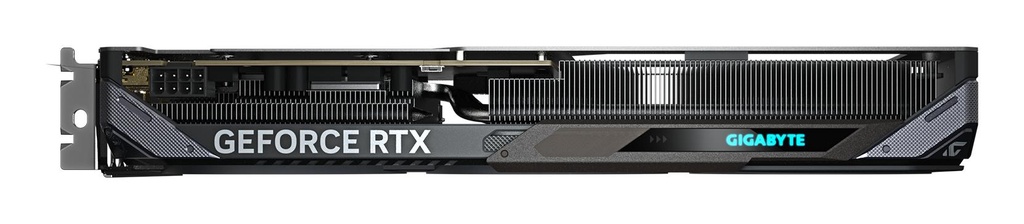

GIGABYTE GeForce RTX 5060 GAMING OC 8G (GV-N5060GAMING OC-8GD)
Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5060
- Integrated with 8GB GDDR7 128bit memory interface
- WINDFORCE cooling system
- RGB lighting
- Dual BIOS (Performance / Silent)
- Reinforced structure
General
| Unit Calculated Weight | 1.27 kg |
| Product Net Weight | 0.7 kg |
| Unit Calculated Volume | 0.006978 cubm |
| Units per Shipping Box | 10 |
| Model | GV-N5060GAMING OC-8GD |
| Summary | GIGABYTE GeForce RTX 5060 GAMING OC 8G Graphics Card - 8GB GDDR7, 128bit, PCI-E 5.0, 2595 MHz Core Clock, 3 x DisplayPort, 1 x HDMI, GV-N5060GAMING OC-8GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060, Processor frequency: 2595 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit, Memory clock speed: 28000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.362 |
| Unit Box Width | 0.187 |
Processor
| CUDA | Yes |
| CUDA cores | 3840 |
| Graphics processor | GeForce RTX 5060 |
| Graphics processor family | NVIDIA |
| Maximum displays per videocard | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Processor frequency | 2595 MHz |
Memory
| Data transfer rate | 28 Gbit/s |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Memory clock speed | 28000 MHz |

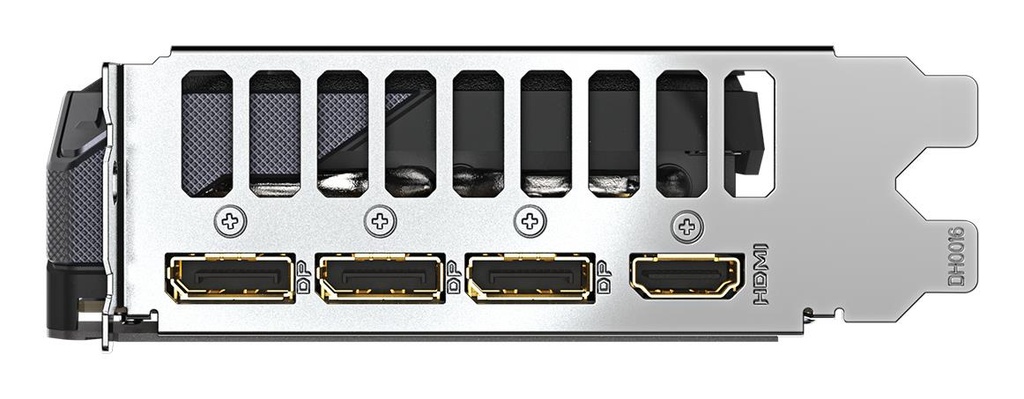

Ports & interfaces
| DisplayPort version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Interface type | PCI Express 5.0 |
Performance
| DirectX version | 12.0 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| OpenGL version | 4.6 |
| Overclocked (OC) edition | Yes |
| TV tuner integrated | No |
| Warranty period | 3 year(s) |
Design
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Cooling type | Active |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Illumination | Yes |
| Illumination colour | Multi |
| Number of fans | 3 fan(s) |
| Number of slots | 2 |
| Product colour | Black |
Power
| Minimum system power supply | 500 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 109 W |
Weight & dimensions
| Depth | 40 mm |
| Height | 119 mm |
| Length | 281 mm |
| Weight | 800 g |

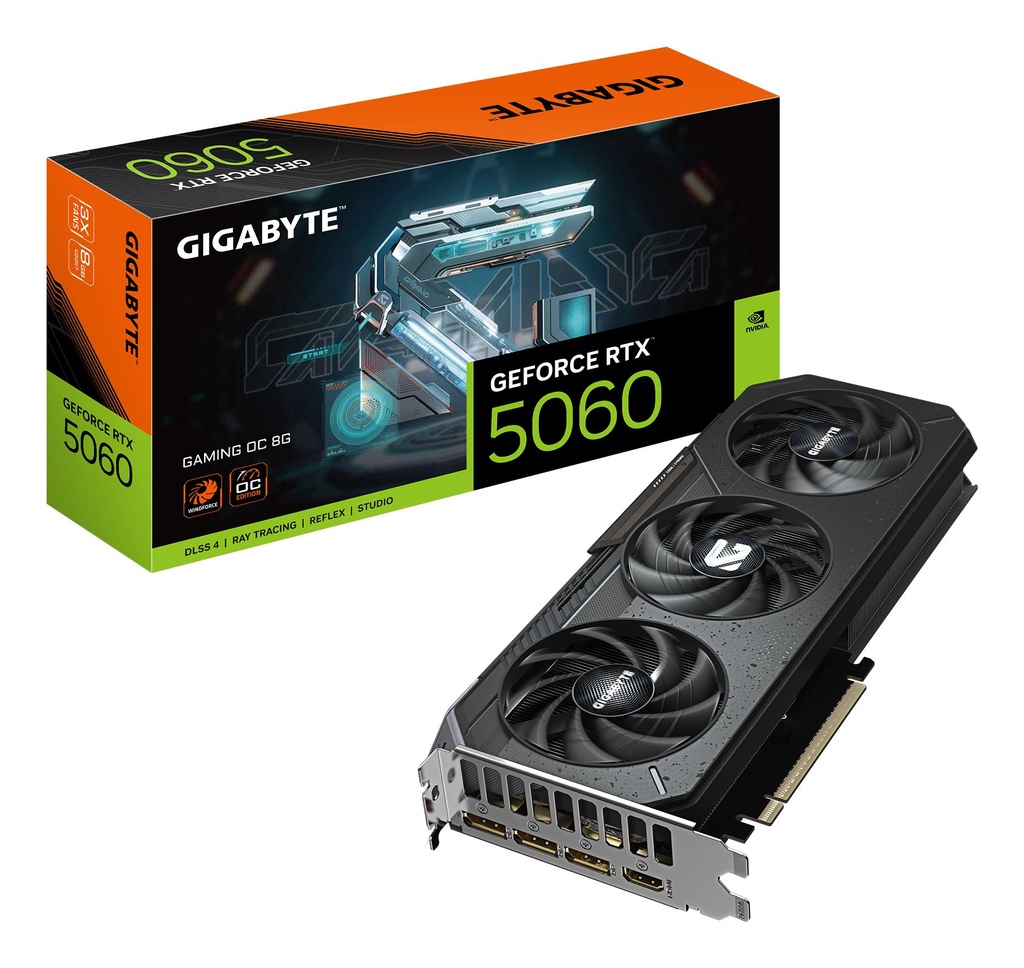

Packaging data
| Package depth | 354 mm |
| Package height | 75 mm |
| Package type | Box |
| Package weight | 1280 g |
| Package width | 182.5 mm |
Packaging content
| Quick installation guide | Yes |
Logistics data
| Products per shipping (inner) case | 1 pc(s) |
