Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision./
Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5060 Ti
- Integrated with 16GB GDDR7 128bit memory interface
- WINDFORCE cooling system
- RGB Lighting
- Dual BIOS (Performance / Silent)
- Reinforced structure
General
| Unit Calculated Weight | 1.38 kg |
| Product Net Weight | 1 kg |
| Unit Calculated Volume | 0.006952 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |

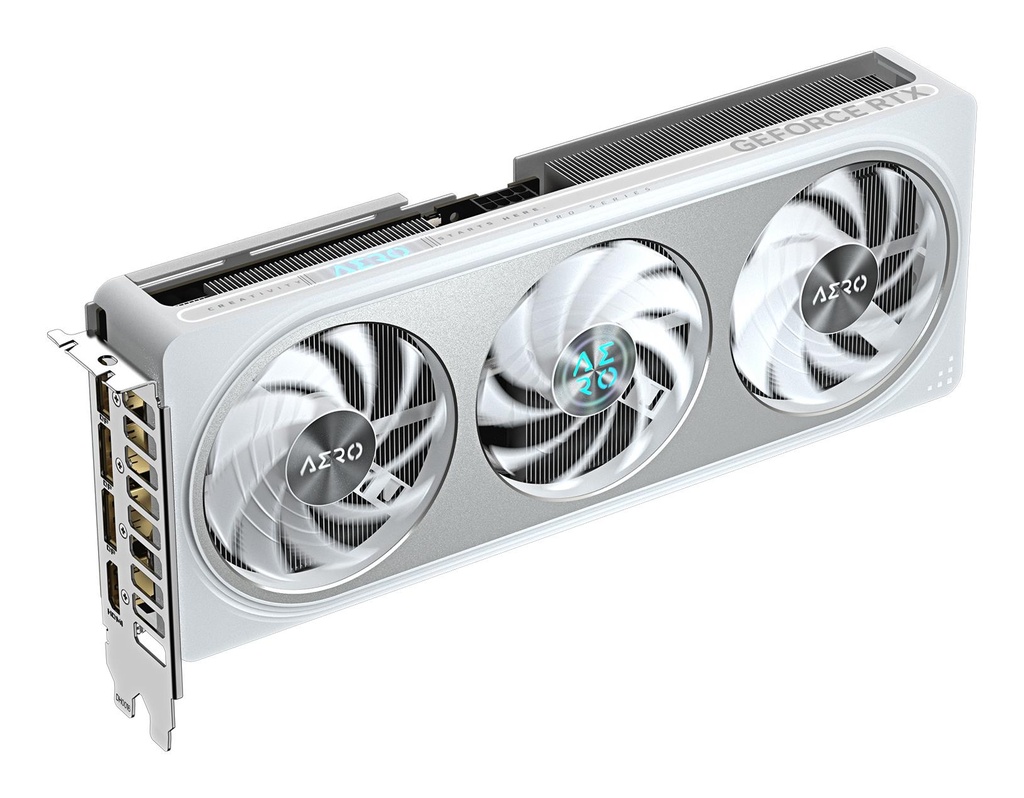

| Model | GV-N506TAERO OC-16GD |
| Long Description | GIGABYTE GeForce RTX 5060 Ti AERO OC 16G Graphics Card - 16GB GDDR7, 128bit, PCI-E 5.0, 2647MHz Core Clock, 3 x DisplayPort, 1 x HDMI, GV-N506TAERO OC-16GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060 Ti, Processor frequency: 2647 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit, Memory clock speed: 28000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s) |
| Bullet Points |
|
| Summary | GIGABYTE GeForce RTX 5060 Ti AERO OC 16G Graphics Card - 16GB GDDR7, 128bit, PCI-E 5.0, 2647MHz Core Clock, 3 x DisplayPort, 1 x HDMI, GV-N506TAERO OC-16GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060 Ti, Processor frequency: 2647 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit, Memory clock speed: 28000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s) |
| Unit Box Height | 0.183 |
| Unit Box Length | 0.363 |
| Unit Box Width | 0.081 |
Processor
| CUDA | Yes |
| CUDA cores | 4608 |
| Graphics processor | GeForce RTX 5060 Ti |
| Graphics processor family | NVIDIA |
| Maximum displays per videocard | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Processor frequency | 2647 MHz |
Memory
| Data transfer rate | 28 Gbit/s |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Memory clock speed | 28000 MHz |
Ports & interfaces

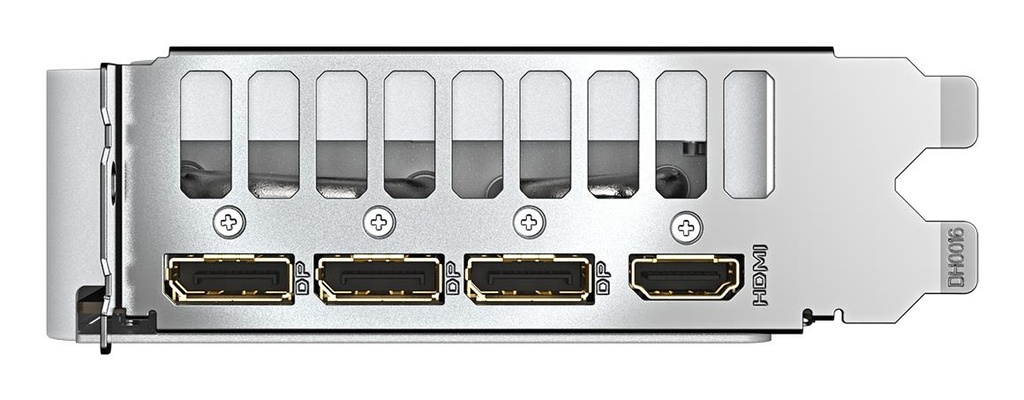

| DisplayPort version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Interface type | PCI Express x16 5.0 |
Performance
| DirectX version | 12.0 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| OpenGL version | 4.6 |
| Overclocked (OC) edition | Yes |
| TV tuner integrated | No |
| Warranty period | 3 year(s) |
Design
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Number of slots | 2 |
| Product colour | White |
Power
| Minimum system power supply | 650 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Depth | 40 mm |
| Height | 117 mm |
| Length | 281 mm |
| Weight | 820 g |
Packaging data
| Package depth | 354 mm |
| Package height | 75 mm |
| Package type | Box |
| Package weight | 1290 g |
| Package width | 182.5 mm |
Logistics data
| Products per shipping (inner) case | 1 pc(s) |
