Experience the next level of gaming immersion with GIGABYTE's AMD graphics cards. Crafted to deliver uncompromising performance and stunning visuals, our GPUs redefine gaming excellence. Featuring advanced cooling solutions and innovative technologies, GIGABYTE AMD graphics cards empower gamers to push the boundaries of what's possible, delivering unmatched gaming experiences.
- Powered by Radeon RX 9070 XT
- WINDFORCE cooling system
- RGB Lighting
- Dual BIOS (Performance/ Silent)
- Reinforced structurement
General
| Unit Calculated Weight | 1.88 kg |
| Product Net Weight | 0.7 kg |
| Unit Calculated Volume | 0.01246 cubm |
| Units per Shipping Box | 10 |
| Model | GV-R9070XTGAMING OC-16GD |
| Summary | GIGABYTE Radeon RX 9070 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 256bit, PCI-E 5.0, 3060 MHz Core Clock, 2 x DisplayPort, 2 x HDMI, GV-R9070XTGAMING OC-16GD. Graphics processor family: AMD, Graphics processor: Radeon RX 9070 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit, Memory clock speed: 20000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi |
| CnCode | 84718000 |
| Unit Box Height | 0.235 |
| Unit Box Length | 0.4 |
| Unit Box Width | 0.09 |
Processor
| CUDA | No |
| Graphics processor | Radeon RX 9070 XT |
| Graphics processor family | AMD |
| Maximum displays per videocard | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Processor boost clock speed | 3060 MHz |
| Stream processors | 4096 |
Memory
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Memory clock speed | 20000 MHz |

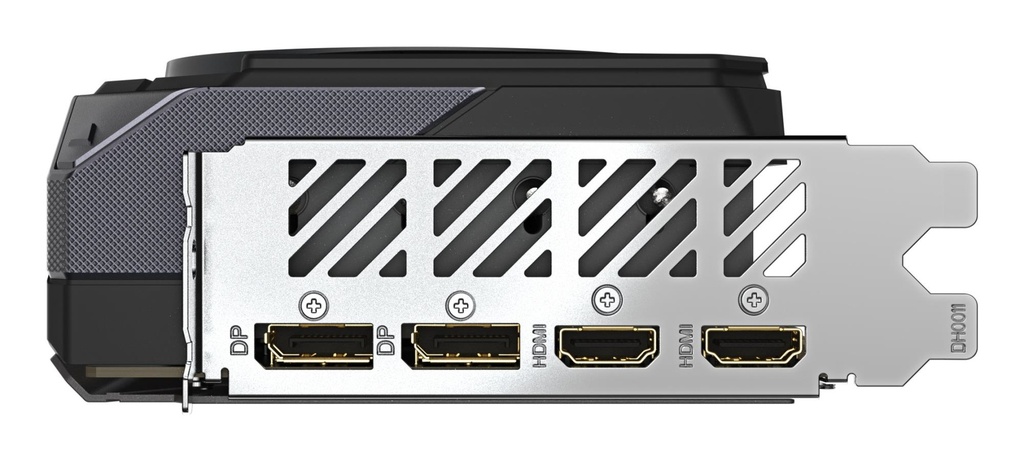

Ports & interfaces
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1b |
| Interface type | PCI Express 5.0 |
Performance
| DirectX version | 12.0 |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| TV tuner integrated | No |
| Warranty period | 3 year(s) |
Design
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Illumination colour | Multi |
| Number of fans | 3 fan(s) |
| Number of slots | 2.7 |
| Product colour | Black |
Power
| Minimum system power supply | 850 W |
| Supplementary power connectors | 3x 8-pin |
Weight & dimensions
| Depth | 56 mm |
| Height | 132 mm |
| Length | 288 mm |
| Weight | 1260 g |
Packaging data
| Package depth | 488 mm |
| Package height | 425 mm |
| Package type | Box |
| Package weight | 1880 g |
| Package width | 470 mm |
Logistics data
| Products per shipping (inner) case | 1 pc(s) |
