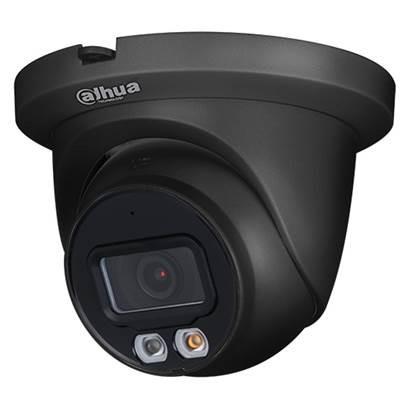

4MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
> 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.
General
| Unit Calculated Weight | 0.695 kg |
| Unit Calculated Volume | 0.003013 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.11 |
| Model | DHI-IPC-HDW2449TM-S-IL-0280B-B |
Design
| Form factor | Eyeball |
| International Protection (IP) code | IP67 |
| Product colour | Black |
Performance
| Connectivity technology | Wired |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Camera shutter speed | 1/3 s–1/100,000 s s |
| Minimum illumination | 0.0008 lx |
Image sensor
| Number of sensors | 1 |
| Optical sensor size | 1/2.9 " |
| Sensor type | CMOS |
Night vision
| B/W night vision distance | 30 m |
| LED type | IR |
Video
| Back Light Compensation (BLC) | Yes |
| Maximum resolution | 2688 × 1520 pixels |
| Total megapixels | 4 MP |
Audio
| Built-in microphone | Yes |
Storage
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Power
| DC output voltage | 12 |
| Power source type | DC,PoE |
Operational conditions
| Operating temperature (T-T) | –40 °C to +60 °C °C |
Weight & dimensions
| Diameter | 121.9 mm |
| Height | 99.1 mm |
| Weight | 460 g |
Technical details
| Lens mount interface | M12 |
