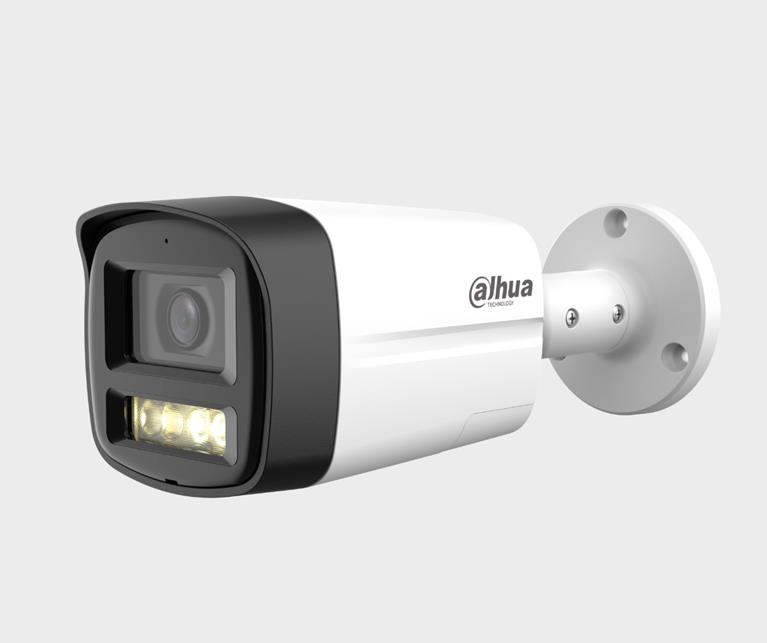

5MP Smart Dual Light HDCVI Two-way Talk Fixed-focal Bullet Camera
> Max. 25 fps@5MP
> Two-way Talk
> Smart Light+
> Smart Dual Light.
> 40 m illumination distance.
> 3DNR
> 3.6 mm fixed lens (2.8 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.
> Focal Length 2.8 mm
> Field of View 113.3°
General
| Unit Calculated Weight | 0.5 kg |
| Unit Calculated Volume | 0.00242 cubm |
| Units per Shipping Box | 1 |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.11 |
| Model | HFW1500TLM-IL-T-0280B |
Performance
| Connectivity technology | Wired |
| Placement supported | Outdoor |
Camera
| Camera shutter speed | PAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000 s s |
| Camera shutter type | Electronic |
| Minimum illumination | 0.001 lx |
Image sensor
| Effective sensor resolution | 5 pixels |
| Number of effective pixels (H x V) | 2880 x 1620 pixels |
Lens system
| Fixed focal length | 3.6 mm |
Power
| DC output voltage | 12 |
| Power consumption (max) | 9.5 W |
Weight & dimensions
| Depth | 80.2 mm |
| Height | 198.4 mm |
| Weight | 340 g |
| Width | 76.2 mm |
