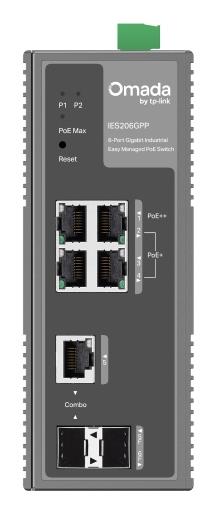

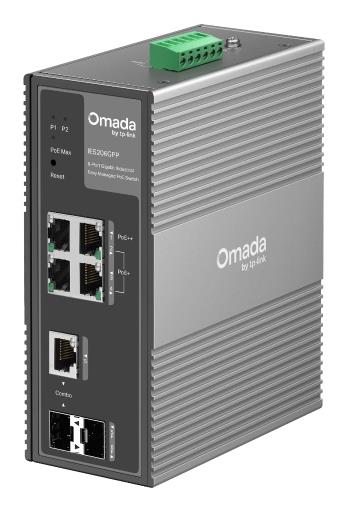

Industrial-Grade Protection Built for Harsh Environments
Enhanced Networking Stability and Security
Easy Operation and Maintenance with Omada’s Free Cloud Management
- 4× Gigabit RJ45 Ports (1× PoE++, 3× PoE+)
- 1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot
- 120W Power Budget* with up to 60W for PoE++ Port
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 820ft (250m) PoE,** VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
General
| Unit Calculated Weight | 1.4875 kg |
| Unit Calculated Volume | 0.00473 cubm |
| Units per Shipping Box | 4 |
| Units per Pallet | 0 |
| Summary | TP-Link IES206GPP. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE.... DC input voltage: 12 - 57 V. Power over Ethernet (PoE). Wall mountable, Rack mounting |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.19 |
| Unit Box Width | 0.2 |
| Model | IES206GPP |
Management features
| Switch type | Managed |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
| SFP module slots quantity | 1 |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3x |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Forwarding rate | 8.93 Mpps |
| Jumbo frames | 15000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Switching capacity | 12 Gbit/s |
Security
| DHCP features | DHCP client |
| IGMP snooping | Yes |
Multicast features
| Multicast support | Yes |
Design
| DIN rail mounting | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Wall mountable | Yes |
Performance
| Fanless | Yes |
Power
| DC input voltage | 12 - 57 V |
| Power source | DC/PoE |
| Redundant power supply (RPS) support | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) type supported | PoE+/PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 3 |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Depth | 120 mm |
| Height | 60 mm |
| Width | 155 mm |
Packaging content
| Quick start guide | Yes |
Certificates
| Certification | FCC, CE, RoHS |
