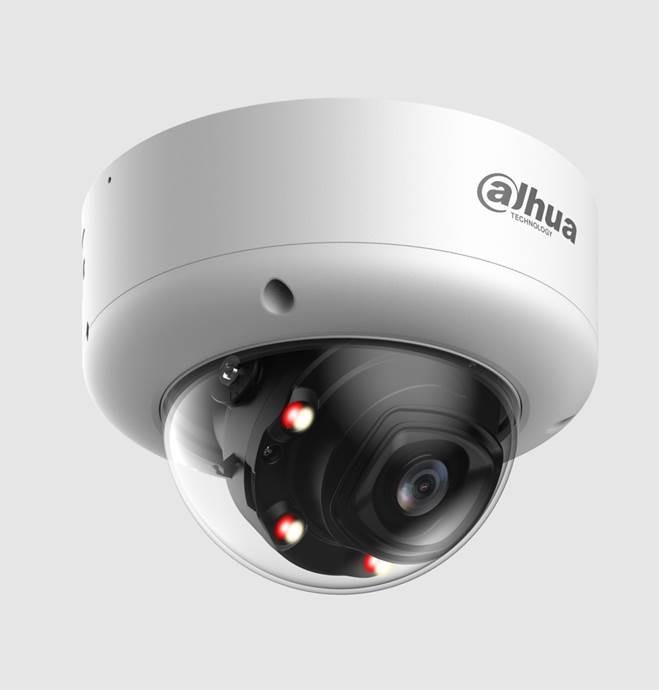

4MP Smart Dual Light Vari-focal Vandal-proof Dome WizMind Network Camera
> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520) @25/30 fps.
> Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions.
> With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card; built-in Mic
> 12 VDC/PoE power supply; ePoE
> IP67 and IK10 protection.
> Focal Length: 2.7 mm–12 mm (115°–47°)
General
| Unit Calculated Weight | 1.61 kg |
| Unit Calculated Volume | 0.00882 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Unit Box Height | 0.2 |
| Unit Box Length | 0.21 |
| Unit Box Width | 0.21 |
| Model | IPC-HDBW5459E1-ZE-IL-2712 |
Design
| Form factor | Dome |
| Product colour | White |
Performance
| Connectivity technology | Wired |
Camera
| Camera shutter speed | 1/3 s–1/100,000 s s |
| Camera shutter type | Electronic/Mechanical |
Image sensor
| Effective sensor resolution | 4 pixels |
| Optical sensor size | 1/1.8" " |
| Sensor type | CMOS |
Night vision
| B/W night vision distance | 60 m |
| Night vision | Yes |
Audio
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Built-in microphone | Yes |
Storage
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1024 GB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Alarm input channels | 2 |
| Alarm output channels | 1 |
Power
| DC output voltage | 12 |
| Power consumption (max) | 16.1 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Operating temperature (T-T) | –40 °C to +60 °C °C |
Weight & dimensions
| Diameter | 159 mm |
| Height | 118 mm |
Technical details
| Lens mount interface | M14 |
