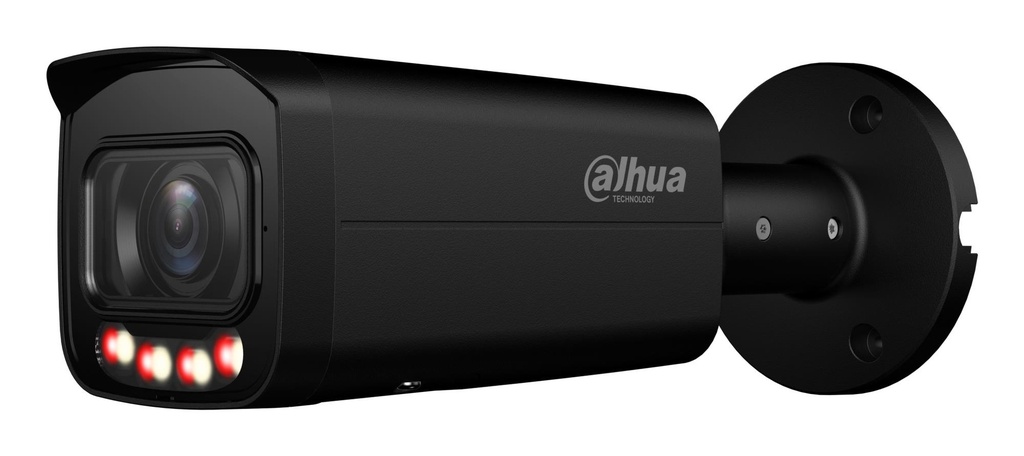

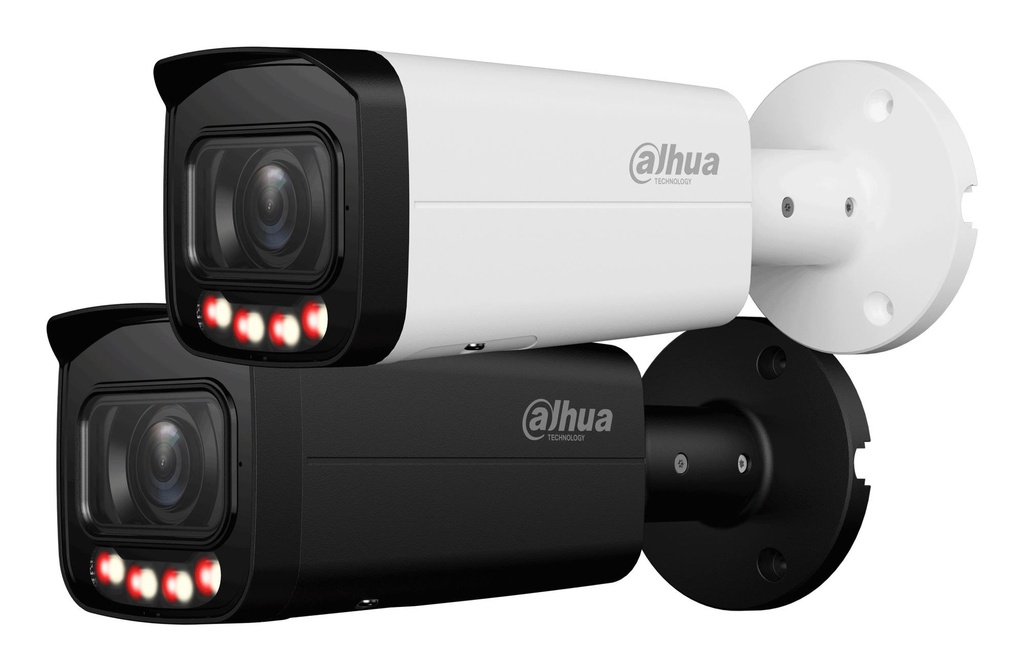

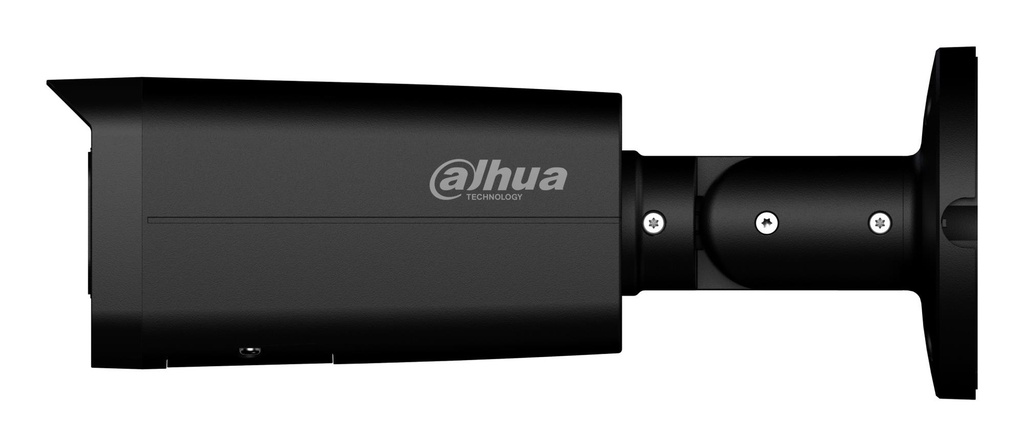

8MP Smart Dual Light Vari-focal Bullet WizSense Network Camera
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Series Overview
With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Full-color
With high-performance sensor and large aperture lens, Dahua Fullcolor technology can display clear colorful image in the environment of ultra-low illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.
Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
- 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
- Outputs max. 8 MP (3840 × 2160)@20 fps, and supports 2688 × 1520 (2688 × 1520)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 60 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in Mic
- 12 VDC/PoE power supply, easy for installation
- IP67, IK10 (optional) protection
- SMD Plus
General
| Unit Calculated Weight | 0.96 kg |
| Unit Calculated Volume | 0.004104 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Dahua Technology WizSense IPC-HFW2849T-ZAS-IL. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 114 - 32°, Lens viewing angle, vertical: 58 - 17°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 280 m, Observe distance: 112 m, Recognize distance: 56 m |
| Unit Box Height | 0.12 |
| Unit Box Length | 0.12 |
| Unit Box Width | 0.285 |
Design
| Form factor | Bullet |
| Housing material | Metal |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | Black |
| Protection features | Corrosion resistant/Waterproof |
Performance
| Alarm input/output | Yes |
| Built-in light | Yes |
| Certification | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Angle of rotation | 360 ° |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera shutter type | Electronic |
| Lens viewing angle, diagonal | 138 - 36 ° |
| Lens viewing angle, horizontal | 114 - 32 ° |
| Lens viewing angle, vertical | 58 - 17 ° |
| Minimum illumination | 0 lx |
| Number of Privacy masking areas | 4 |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 90 ° |
| White balance | Auto/Manual/Natural/Outdoor/Street lamp |
Image sensor
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Lens system
| Closest focusing distance | 0.8 m |
| Detect distance | 280 m |
| Fixed focal length | 2.7 mm |
| Focal length range | 2.7 - 13.5 mm |
| Identify distance | 28 m |
| Maximum aperture number | 1.5 |
| Number of lenses | 1 |
| Observe distance | 112 m |
| Recognize distance | 56 m |
Night vision
| B/W night vision distance | 60 m |
| LED type | IR/White |
| Night vision | Yes |
| Night vision distance | 60 m |
| Number of illumination LEDs | 4 |
Video
| Back Light Compensation (BLC) | Yes |
| Bit rate | 12 Kbps - 8192 Kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2688 x 1512/2880 x 1620/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576 |
| Total megapixels | 8 MP |
| Video compression formats | H.264/H.264+/H.264B/H.265/H.265+ |
| Video streaming | Yes |
Audio
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Voice codecs | G.711a/G.711Mu/G.726/PCM |
Network
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af |
| Number of users | 20 user(s) |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| RAM capacity | 256 MB |
| ROM capacity | 128 MB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Intelligent Video Surveillance (IVS) system features | Intrusion/Tripwire |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Privacy protection | Yes |
| Video motion detection | Yes |
Management features
| Management software | Smart PSS, DSS, DMSS |
| Web browser | Yes |
Power
| DC output voltage | 12 |
| Power consumption (max) | 10.2 W |
| Power consumption (Power over Ethernet (PoE)) | 12.7 W |
| Power consumption (typical) | 2.6 W |
| Power source type | DC,PoE |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -30 - 60 °C |
System requirements
| Mobile operating systems supported | Android/iOS |
Weight & dimensions
| Height | 90.7 mm |
| Length | 238.5 mm |
| Weight | 760 g |
| Width | 90.7 mm |
Packaging data
| Package weight | 950 g |
Packaging content
| Number of cameras | 1 |
