Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
Xinghan Large-Scale AI Models-Vision
Xinghan Large-Scale AI Models-Vision seamlessly expands the storage and operational capacity of algorithmic models through the powerful integration of edge AI model algorithms and NPU computing power. Engineered with a lightweight transformer architecture and enhanced by model distillation and quantization techniques, it optimizes the computing power consumption of ViT operators. This enables the system to collaborate on multiple tasks simultaneously through joint inference between small and large models optimized for edge devices.
Self-Learning
Empowered by deep learning technology, the device recognizes different types of targets and their statuses through learning and analyzing target features to detect targets and filter out false alarms.
Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.
AcuPick
This industry-leading search technology effectively utilizes both frontend and back-end intelligence to help with searching through massive video data to quickly and conveniently locate targets with greater precision.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
- High-Quality Imaging with 8MP Resolution
- Xinghan Vision Models: Comprehensive Enhancement of Target Detection, Imaging
- Longer Detection Distance with Xinghan Vision Models
- Supports Over 7 AI Functions, Applicable for Multi-scenario Targets Detection and Analysis
- Built-in Mic for Real-Time Audio Security
- IP67 and IK10 Ratings for Protection Against Harsh Environments
General

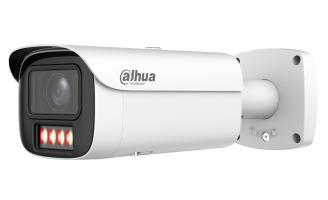

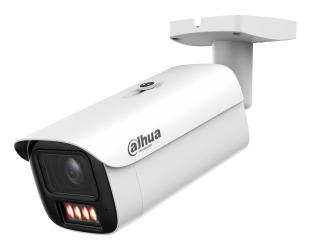

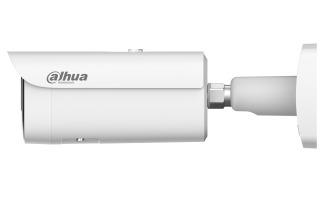

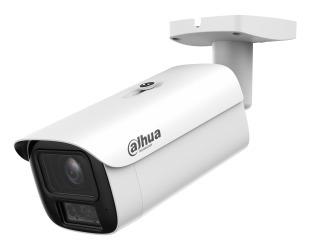

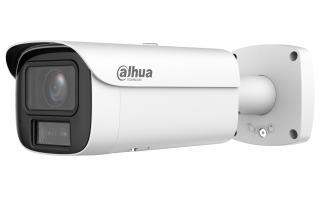

| Summary | Dahua Technology WizMind IPC-HFW5859E1-ZHE-IL. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0004 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 113 - 47°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 2.7 - 12 mm, Detect distance (wide): 83.4 m, Detect distance (tele): 189.6 m |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.335 |
| Unit Box Width | 0.145 |
| Name | NET CAMERA 8MP BULLET/HFW5859E1-ZHE-IL-2712 DAHUA |
Design
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Protection features | Dustproof/Waterproof |
| Housing material | Metal |
| Product colour | White |
| Mounting type | Pole clamp |
| Form factor | Bullet |
Performance
| Dynamic range | 120 dB |
| Smart search function | Yes |
| Alarm input/output | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| People counting function | Yes |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Type | IP security camera |
Camera
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera shutter type | Electronic |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 90 ° |
| Lens viewing angle, diagonal | 133 - 53 ° |
| Lens viewing angle, vertical | 60 - 23 ° |
| Lens viewing angle, horizontal | 113 - 47 ° |
| Angle of rotation | 360 ° |
| Rotating | Yes |
| Minimum illumination | 0.0004 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
Image sensor
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 1/1.8 " |
Lens system
| Closest focusing distance | 0.13 m |
| Detect distance (tele) | 189.6 m |
| Detect distance (wide) | 83.4 m |
| Identify distance (tele) | 19 m |
| Identify distance (wide) | 8.3 m |
| Lens distortion correction (LDC) | Yes |
| Observe distance (tele) | 75.8 m |
| Observe distance (wide) | 33.4 m |
| Recognize distance (tele) | 37.9 m |
| Recognize distance (wide) | 16.7 m |
| Maximum aperture number | 1.8 |
| Focal length range | 2.7 - 12 mm |
| Number of lenses | 1 |
Night vision
| Number of illumination LEDs | 4 |
| LED type | IR |
| Night vision distance | 60 m |
| Night vision | Yes |
Video
| Back Light Compensation (BLC) | Yes |
| Bit rate | 3 - 16384 kbps |
| Bit rate control | Constant Bit Rate (CBR),Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Image stabilizer | Yes |
| Region of Interest (ROI) encoding | Yes |
| Scene self-adaptation (SSA) | Yes |
| Smart IR | Yes |
| Gain control type | Auto/Manual |
| Image stabilizer type | Electronic Image Stabilization (EIS) |
| Noise reduction technology | 3D noise reduction |
| Image rotation angles | 270 ° |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Video recording | Yes |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Total megapixels | 8 MP |
| Maximum resolution | 3840 x 2160 pixels |
Audio
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.723/G.726/PCM |
| Audio output channels | 1.0 channels |
| Audio input channels | 1.0 channels |
Network
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Number of users | 20 user(s) |
| Bluetooth | No |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P |
| Networking standards | IEEE 802.1x/IEEE 802.3at |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
Storage
| Maximum memory card size | 1000 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Built-in HDD | No |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Active tampering alarm | Yes |
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection/Heat map/Intrusion/People counting/Tripwire |
| Mirror | Yes |
| Motion detection system | SMD 4.0 |
| Network access storage (NAS) | Yes |
| Security algorithms | 256-bit AES/SSL/TLS |
| Video motion detection | Yes |
| Alarm output channels | 1 |
| Alarm input channels | 2 |
Management features
| Management software | DSS, DMSS, DoLynk Care |
Power
| DC output voltage | 12 |
| Power consumption (Power over Ethernet (PoE)) (max) | 16.1 W |
| Power consumption (Power over Ethernet (PoE)) | 5 W |
| Power consumption (max) | 12.9 W |
| Power consumption (typical) | 3.7 W |
| Power source type | PoE,DC |
Operational conditions
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | -40 - 60 °C |
System requirements
| Mobile operating systems supported | Android/iOS |
Weight & dimensions
| Weight | 1090 g |
| Length | 279.8 mm |
| Height | 94.9 mm |
| Width | 96.7 mm |
Sustainability
| Compliance certificates | CE |
Packaging data
| Package weight | 1390 g |
Packaging content
| Manual | Yes |
| Number of cameras | 1 |
Other features
| Browser supported | IE 11+, Chrome 102+, Firefox 88+ |
Technical details
| Iris | Yes |
