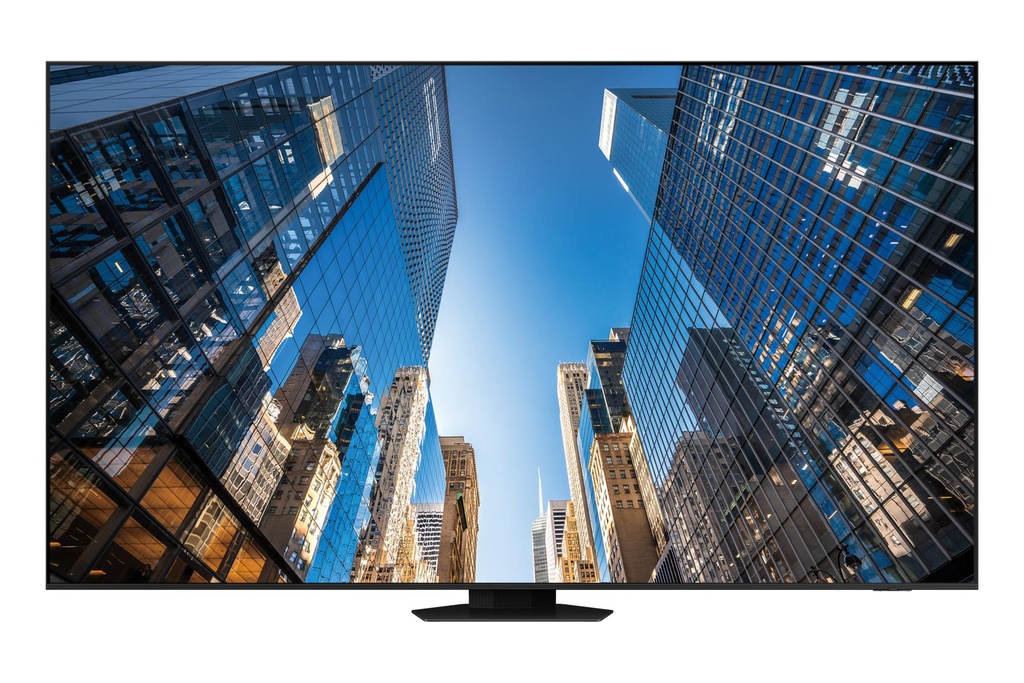

DISPLAY LCD 98" QE98C/LH98QECEDGCXEN SAMSUNG
General
| Summary | Samsung QE98C. Product design: Digital signage flat panel. Display diagonal: 2.49 m (98"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 450 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 6.5. Product colour: Black |
| Unit Box Height | 1.42 |
| Unit Box Length | 2.38 |
| Unit Box Width | 0.36 |
| Model | LH98QECEDGCXEN |
Display
| Active display area (W x H) | 1214.35 x 2158.85 mm |
| Colour saturation | 93 % |
| Contrast ratio (typical) | 5000:1 |
| Display brightness | 450 cd/m² |
| Display diagonal | 98 " |
| Display diagonal (metric) | 247.65 cm |
| Display number of colours | 16.7 million colours |
| Display resolution | 3840 x 2160 pixels |
| Display technology | LCD |
| HD type | 4K Ultra HD |
| LED backlight | Yes |
| LED backlighting type | Edge-LED |
| Native aspect ratio | 16:9 |
| Panel type | VA |
| Pixel pitch | 0.562 x 0.562 mm |
| Response time | 8 ms |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Ports & interfaces
| DVI port | No |
| HDMI ports quantity | 4 |
| HDMI version | 2.0 |
| RS-232 interface | Yes |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
Audio
| Audio output channels | 2.2 channels |
| Built-in speaker(s) | Yes |
| RMS rated power | 40 W |
Design
| Panel mounting interface | 600 x 400 mm |
| Product colour | Black |
| Product design | Digital signage flat panel |
| VESA mounting | Yes |
Performance
| Operating hours (hours/days) | 16/7 |
| Purpose | Universal |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 275 W |
Computer system
| Operating system installed | Tizen 6.5 |
Weight & dimensions
| Display depth | 48.4 mm |
| Display height | 1243.9 mm |
| Display weight | 65800 g |
| Display width | 2180.6 mm |
Packaging data
| Package depth | 350 mm |
| Package height | 1431 mm |
| Package weight | 87800 g |
| Package width | 2379 mm |
Operational conditions
| Operating relative humidity (H-H) | 10 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
Network
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
Other features
| RJ-45 input ports | 1 |
| RS-232 input ports | 1 |
ELKO Internal Logistics Data
| Battery | AAA x2 |
| Battery weight | 23 g |
| Shipping Box Depth | 238 cm |
| Shipping Box Height | 142 cm |
| Shipping Box Weight | 87.8 kg |
| Shipping Box Width | 36 cm |
| Unit Calculated Volume | 1.217 cubm |
ELKO Logistics Data
| Product Net Weight | 65.8 kg |
| Unit Calculated Weight | 87.8 kg |
| Units per Shipping Box | 1 |
