Need a fast, stable connection across large distances? Whether you’re bridging two buildings, connecting a remote site, or sharing your internet with nearby infrastructure — the new LHG Wi-Fi 6 series is built for the challenge. And here’s the best part: we’ve kept the same pricing as the previous generation. High performance, long range, and Wi-Fi 6 — all without breaking the budget.
The 802.11ax standard brings crucial improvements for long-distance wireless links — including better spectral efficiency, higher modulation rates (1024-QAM), and lower latency. That means stronger performance even in noisy environments and faster, more stable connections over a greater distance. Combined with WPA3 encryption and RouterOS v7, the LHG ax series is ready for the challenges of modern outdoor networking. Order yours today — and be ready too!

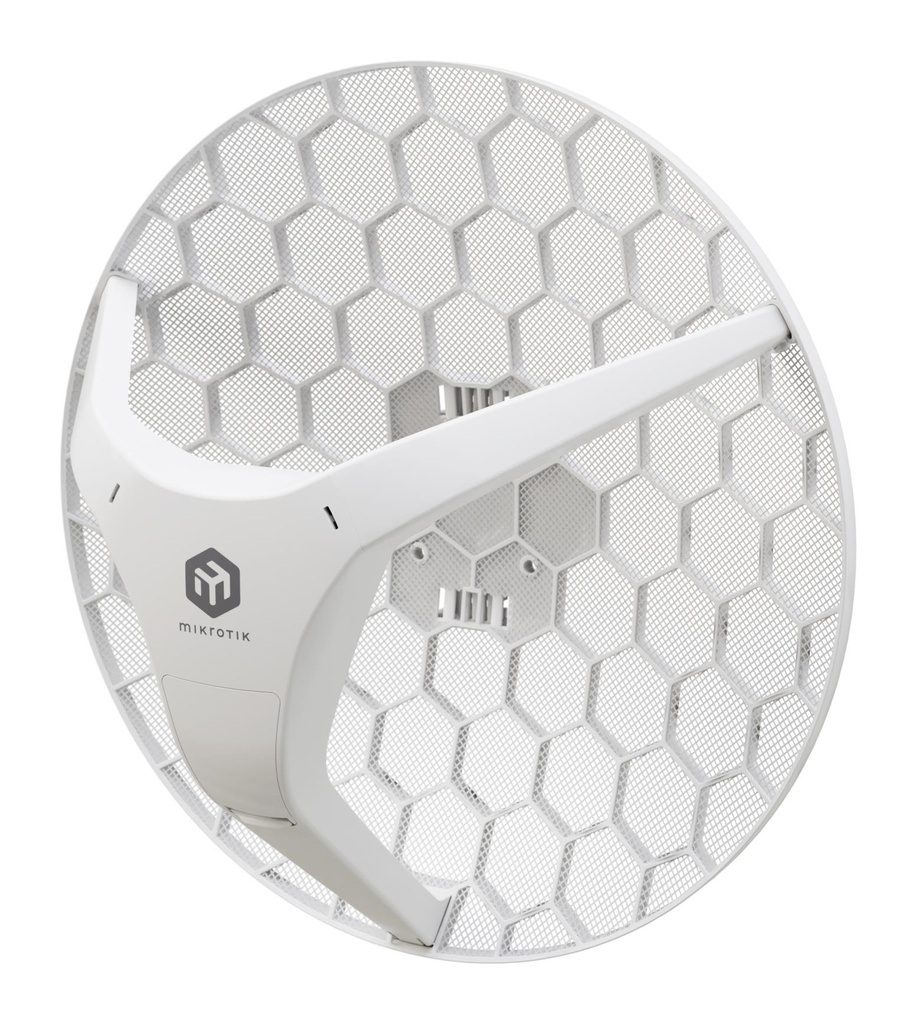

LHG 5 ax is compact, long-range CPE with a 24.5 dBi antenna. Perfect for links up to 20 km in most scenarios. Check related devices below for the XL version if you need a longer distance!
General
| Unit Calculated Weight | 10.8 kg |
| Unit Calculated Volume | 0.1737 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Mikrotik LHG 5 ax. 5 GHz, Maximum data transfer rate: 1200 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 5 W |
| Unit Box Height | 0.47 |
| Unit Box Length | 0.77 |
| Unit Box Width | 0.48 |
| Model name | LHG 5 ax |
| Model | LHG-5AXD |
Features
| 2.4 GHz | No |
| 5 GHz | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Maximum data transfer rate | 1200 Mbit/s |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11n |
| Receiver sensitivity | -96, -80, -75, -70, -67 |
| Transmitting power | 24 dBmW |
Ports & interfaces

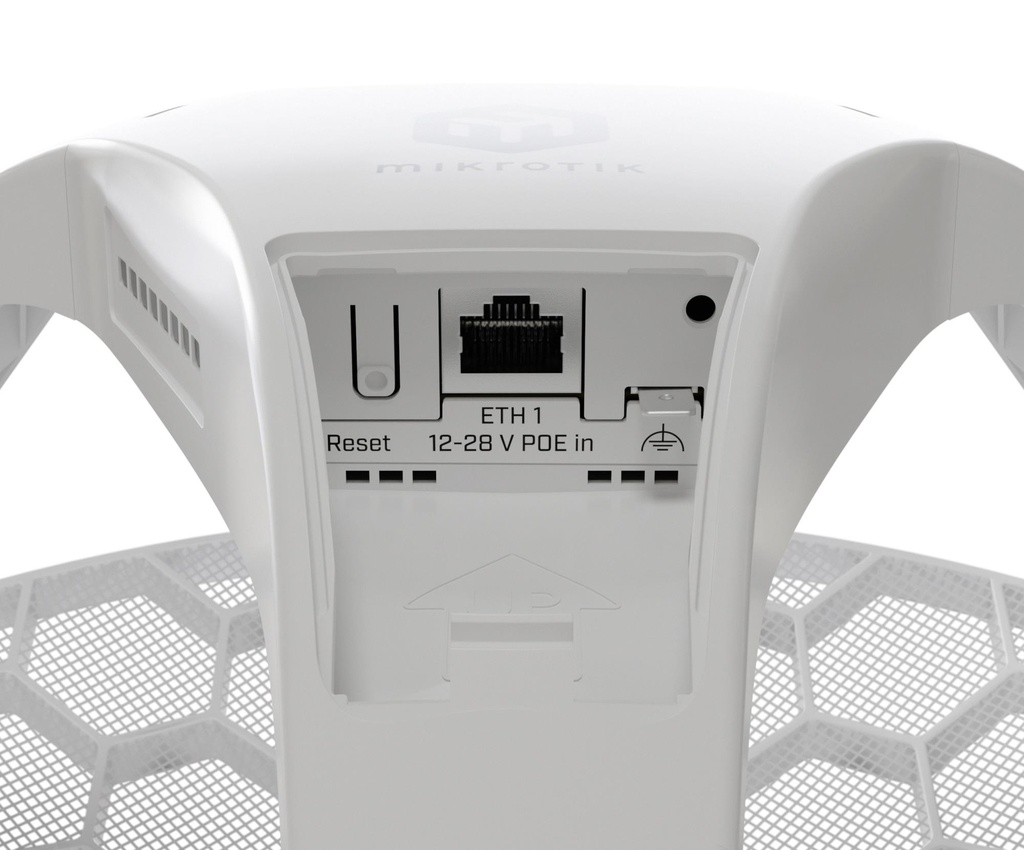

| DC-in jack | Yes |
Power
| Power consumption (max) | 5 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
Design
| Placement | Pole |
| Product colour | White |
Antenna
| Antenna gain level (max) | 24.5 dBi |
| Antenna type | Internal |
Performance
| Built-in processor | Yes |
| Flash memory | 128 MB |
| Internal memory | 256 MB |
Certificates
| Certification | CE, FCC, IC, EAC, ROHS |
Packaging content

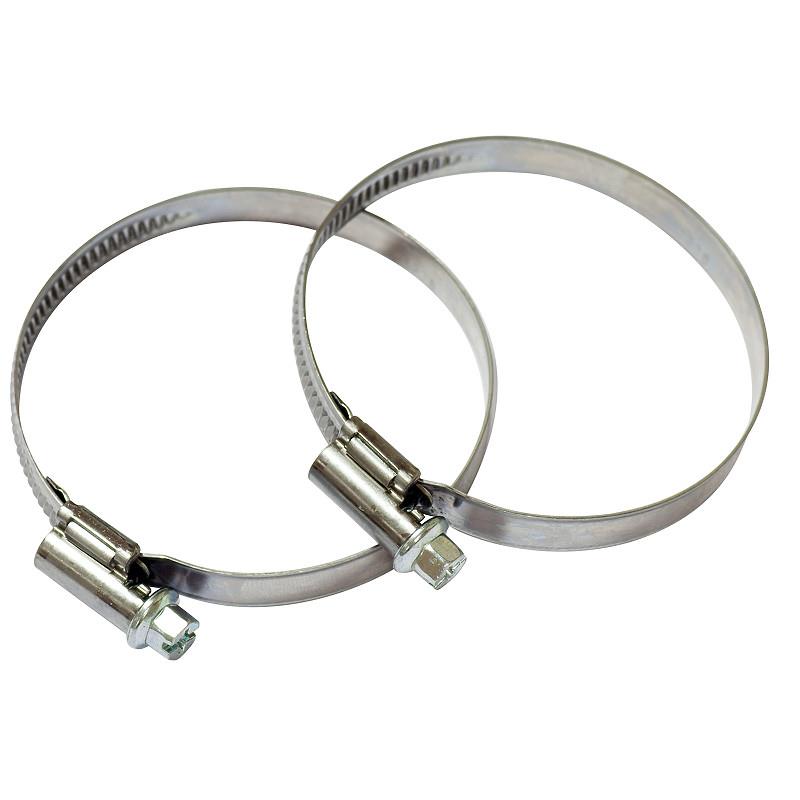

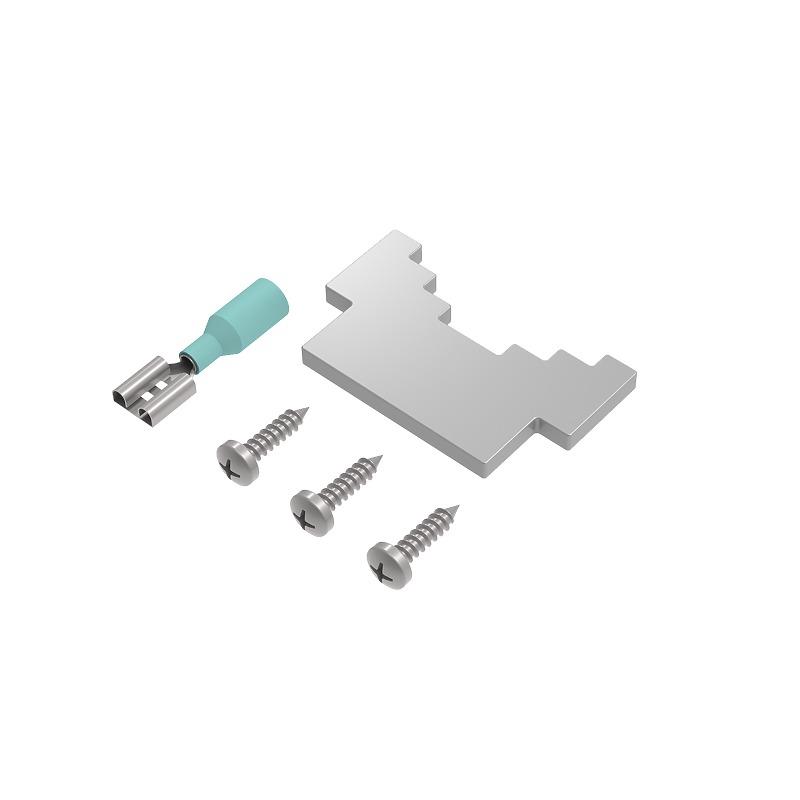

| Mounting kit | Yes |

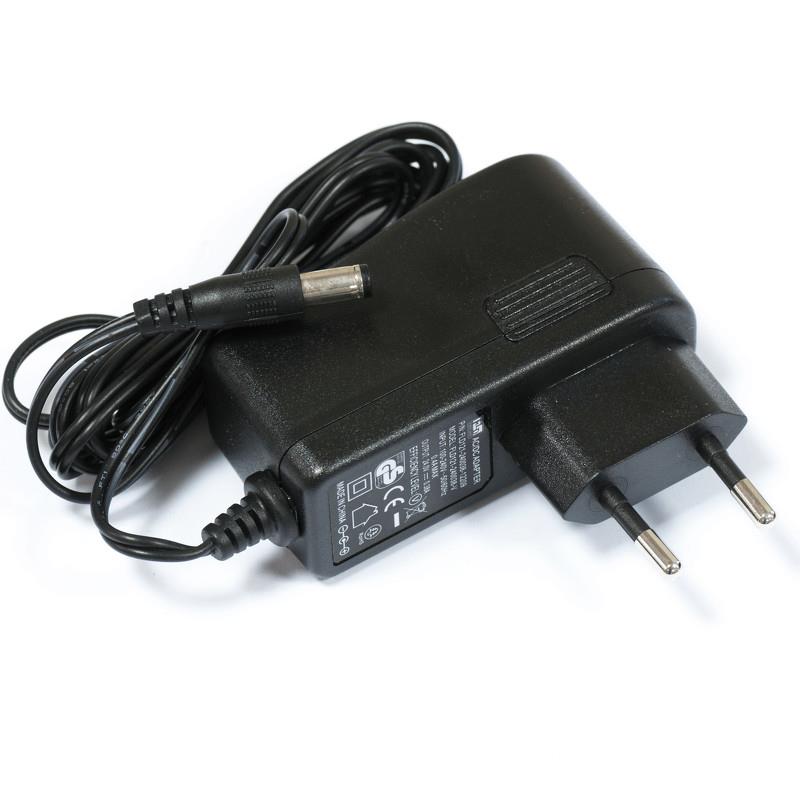

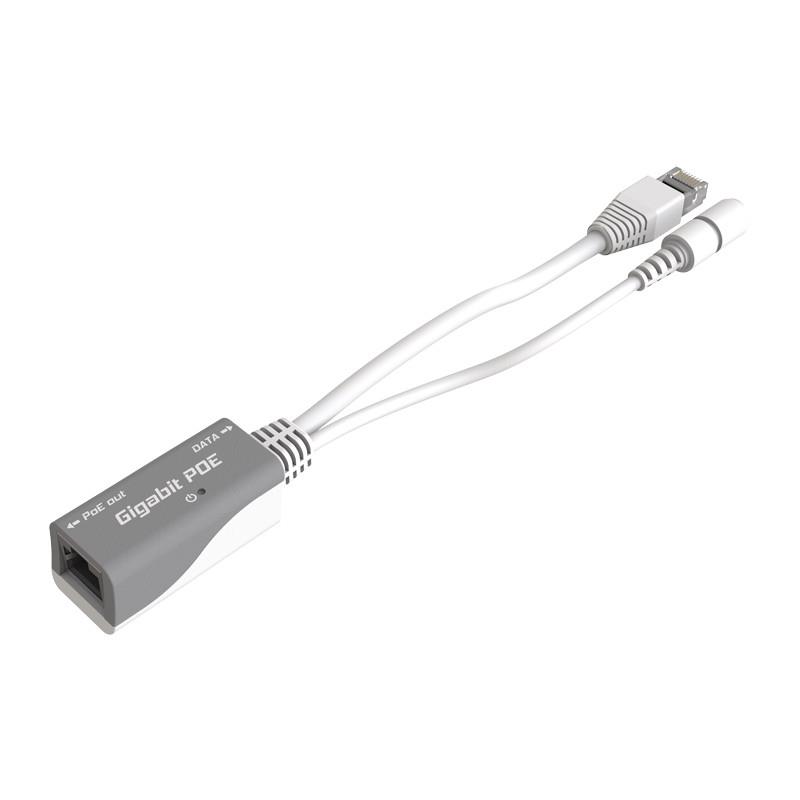

| PoE adapter included | Yes |
| Quantity per pack | 1 pc(s) |
Operational conditions
| Operating temperature (T-T) | -40 - 70 °C |
