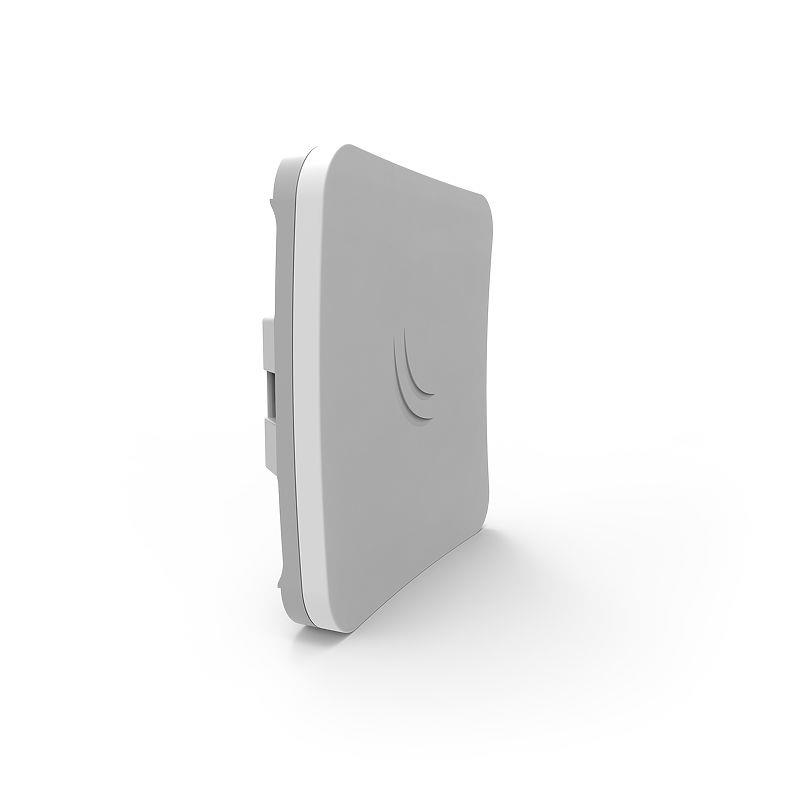

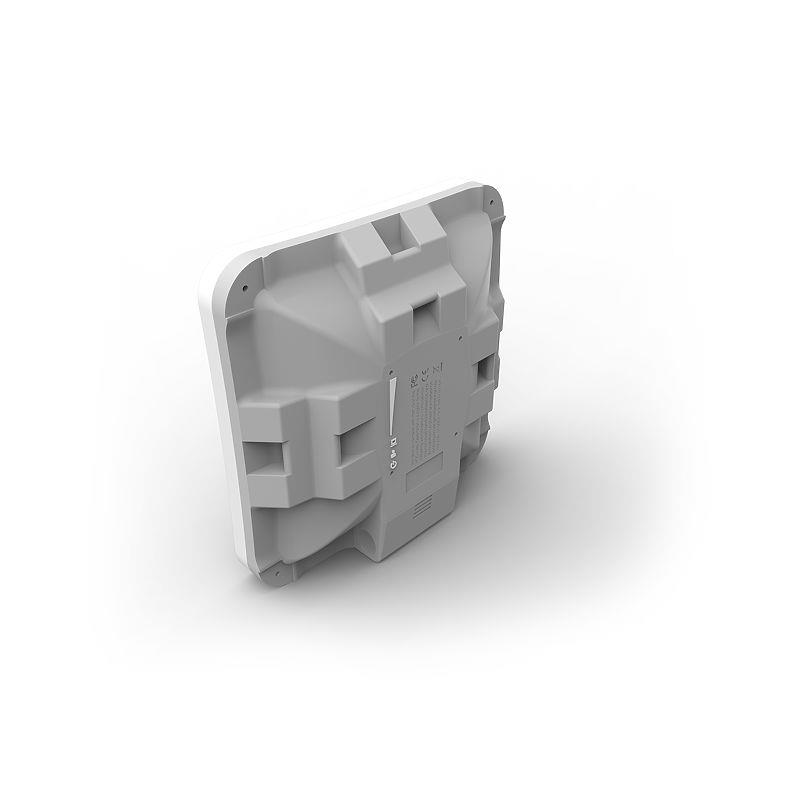

The SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.
The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.
- The SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides
- The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner
General
| Unit Calculated Weight | 0.52 kg |
| Unit Calculated Volume | 0.002067 cubm |
| Units per Shipping Box | 20 |
| Summary | Mikrotik RBSXTsqG-5acD. 5 GHz, Maximum data transfer rate: 1000 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 7 W |
| Unit Box Height | 0.39 |
| Unit Box Length | 0.53 |
| Unit Box Width | 0.011 |
| Model name | SXTsq 5 ac // RBSXTsqG-5acD |
Features
| 2.4 GHz | No |
| 5 GHz | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Frequency band | 5.150 - 5.875 GHz |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11n |
| Receiver sensitivity | 6MBit/s 25 -96 54MBit/s 21 -80 MCS0 25 -96 MCS7 20 -75 MCS9 18 -70 |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Power
| AC input voltage | 10 - 30 V |
| Power consumption (max) | 7 W |

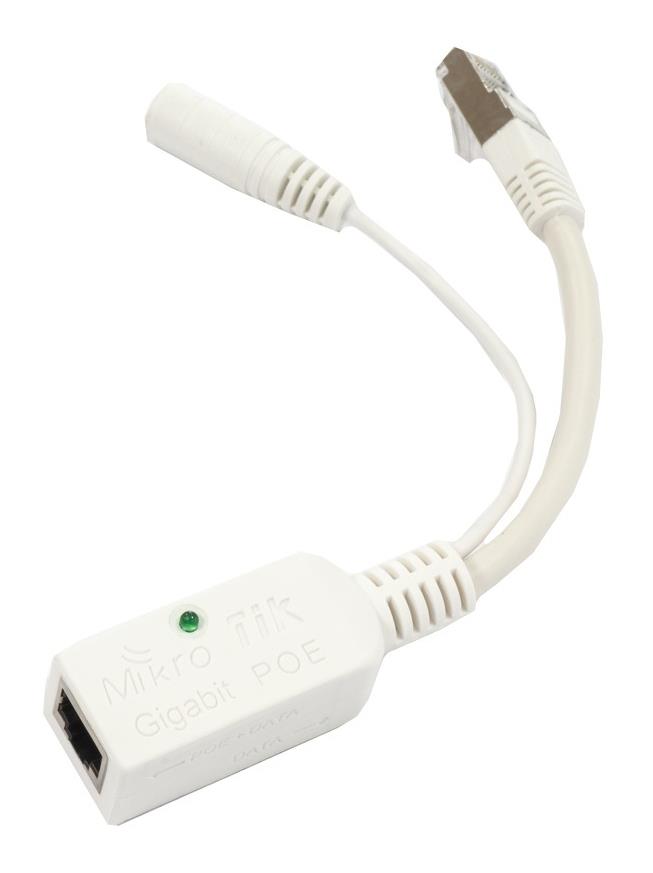

| Power over Ethernet (PoE) | Yes |
Design
| Internal | No |
| International Protection (IP) code | IP55 |
| Placement | Pole,Wall |
| Product colour | White |
Antenna
| Antenna gain level (max) | 16 dBi |
| Antenna type | Internal |
Performance
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 256 MB |
| Operating system installed | RouterOS |
| Processor frequency | 716 MHz |
Weight & dimensions
| Depth | 129 mm |
| Height | 34 mm |
| Weight | 295 g |
| Width | 129 mm |
Packaging data
| Package depth | 180 mm |
| Package height | 45 mm |
| Package weight | 492 g |
| Package width | 255 mm |
Operational conditions
| Operating relative humidity (H-H) | -40 - 70 % |
Logistics data
| Harmonized System (HS) code | 85176990 |
