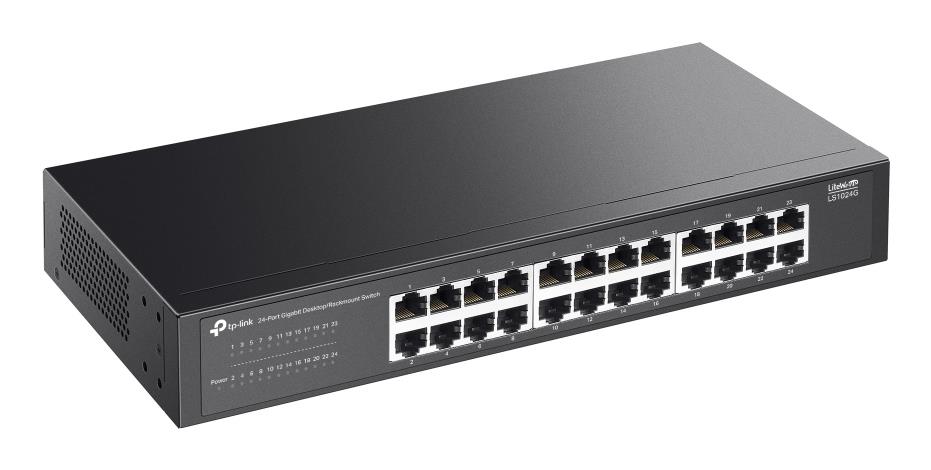

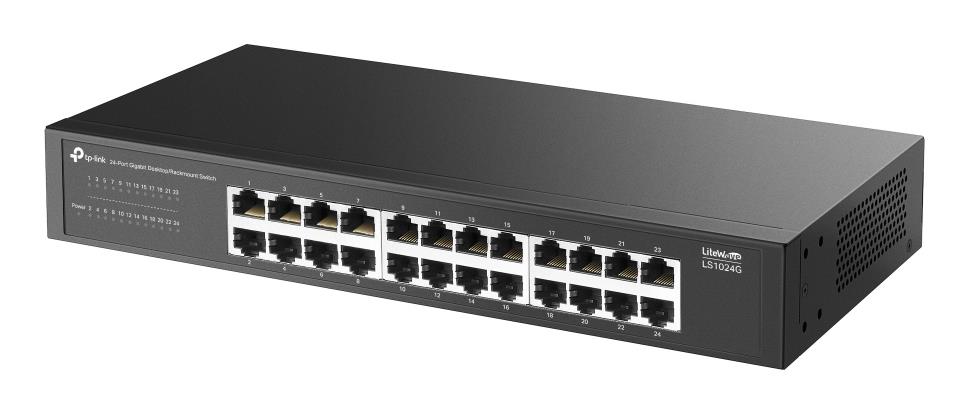

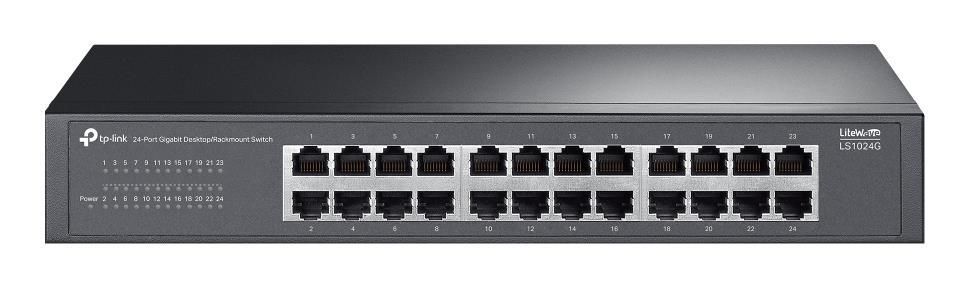

The LS1024G Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the LS1024G can save power consumption, making it an eco-friendly solution for your business network.
- Supports MAC address self-learning, Auto MDI/MDIX and Auto Negotiation
- Plug & play design
- QoS ensures smooth traffic for latency sensitive applications such as voice or video
- Innovative energy-efficient technology saves power consumption
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses
- Durable metal casing provides improved heat dissipation and ensures a longer product life
- Desktop or rackmount installation
General
| Unit Calculated Weight | 1.95 kg |
| Unit Calculated Volume | 0.006392 cubm |
| Units per Shipping Box | 1 |
| Summary | TP-Link LS1024G. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| CnCode | 85176200 |
| Unit Box Height | 0.235 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.08 |
| Model | LS1024G |
Management features
| Switch type | Unmanaged |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3p/IEEE 802.3u/IEEE 802.3x |
Data transmission
| Forwarding rate | 35.712 Mpps |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Packet buffer memory | 2 MB |
| Store-and-forward | Yes |
| Switching capacity | 48 Gbit/s |
Design
| Product colour | Black |
| Rack mounting | No |
Performance
| Fanless | Yes |
| Mean time between failures (MTBF) | 1183684 h |

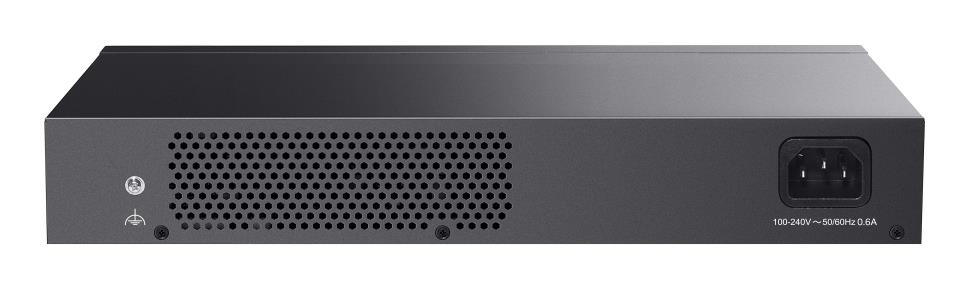

Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Power consumption (max) | 12.6 W |
| Power source | AC |
| Power supply included | Yes |
Operational conditions
| Heat dissipation | 42.77 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 140 mm |
| Height | 44 mm |
| Width | 294 mm |
Packaging content
| Cables included | Power |
| Rack mount kit | Yes |
| User guide | Yes |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
