Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

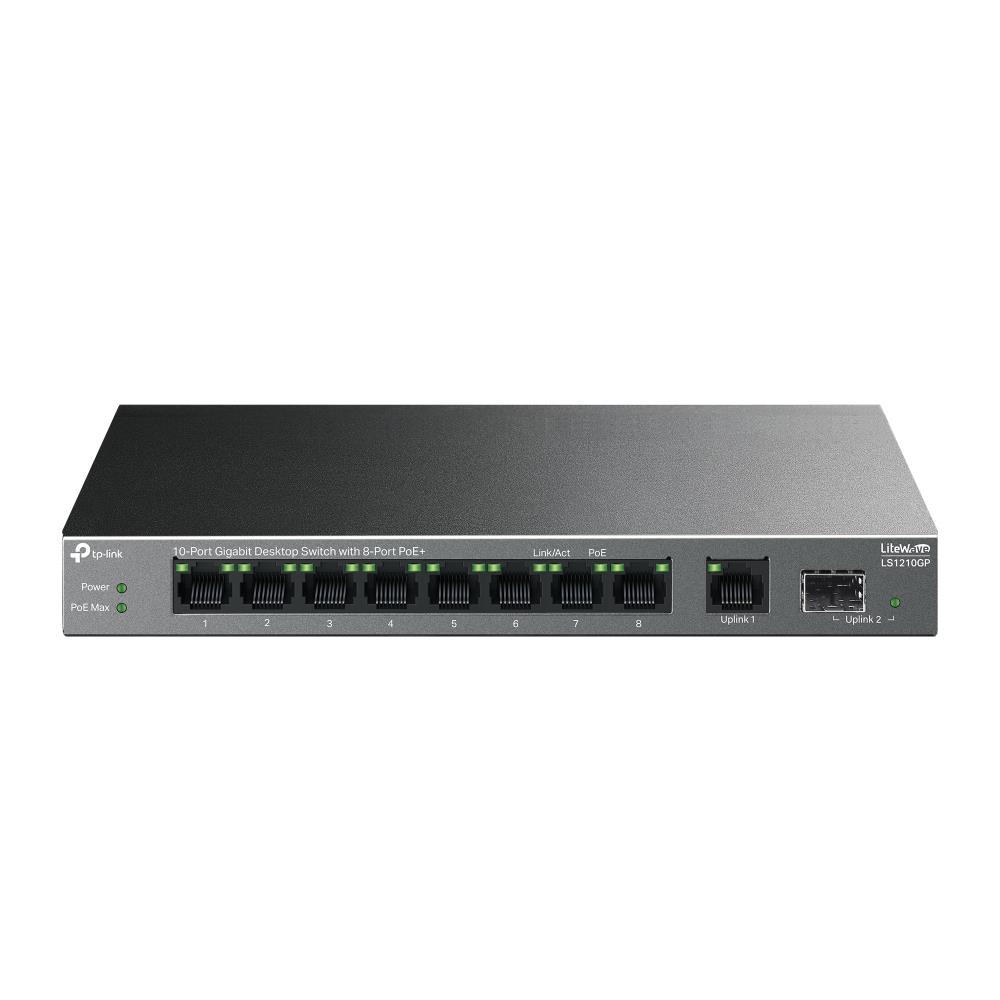

- Full Gigabit Ports: 9× gigabit auto-negotiation RJ45 Ethernet ports and 1× gigabit SFP port provide up to 20 Gbps switching capacity
- 61 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*

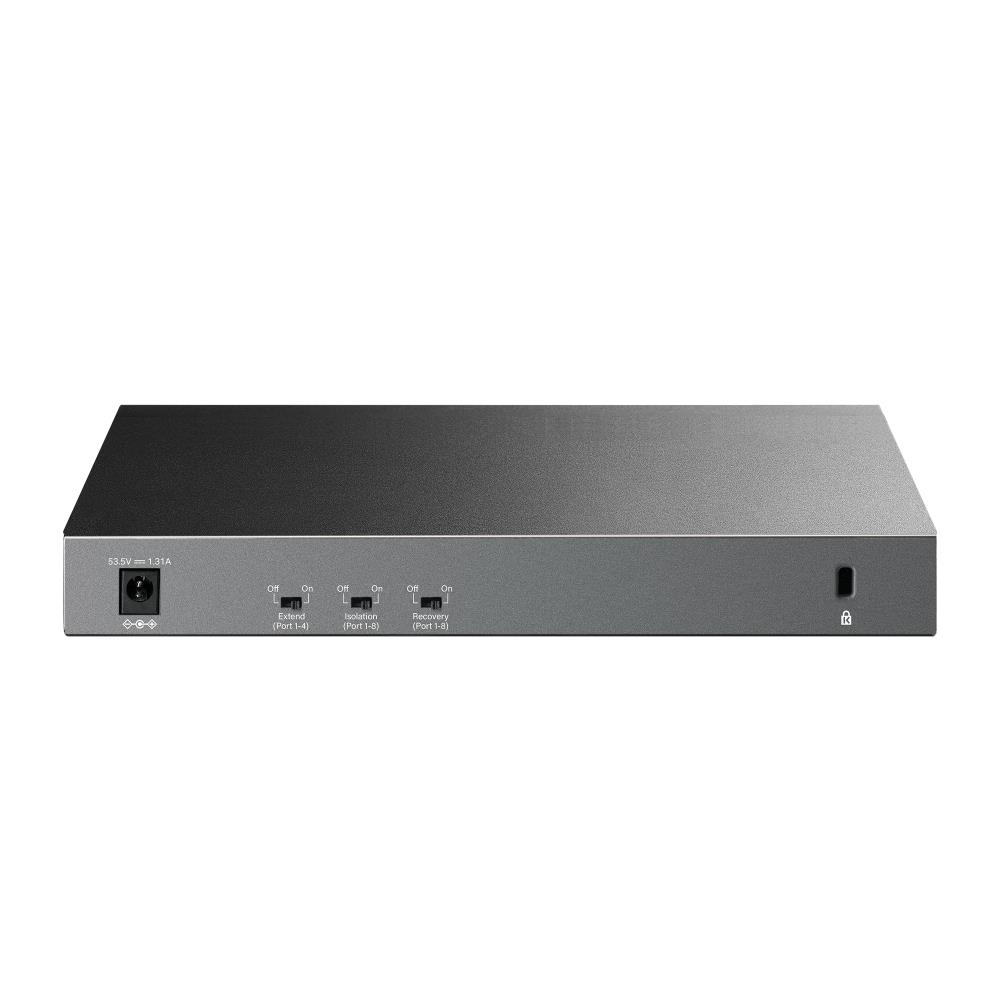

- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
- Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm
- Plug and Play: Simply plug and play for instant connectivity with no configuration required
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses

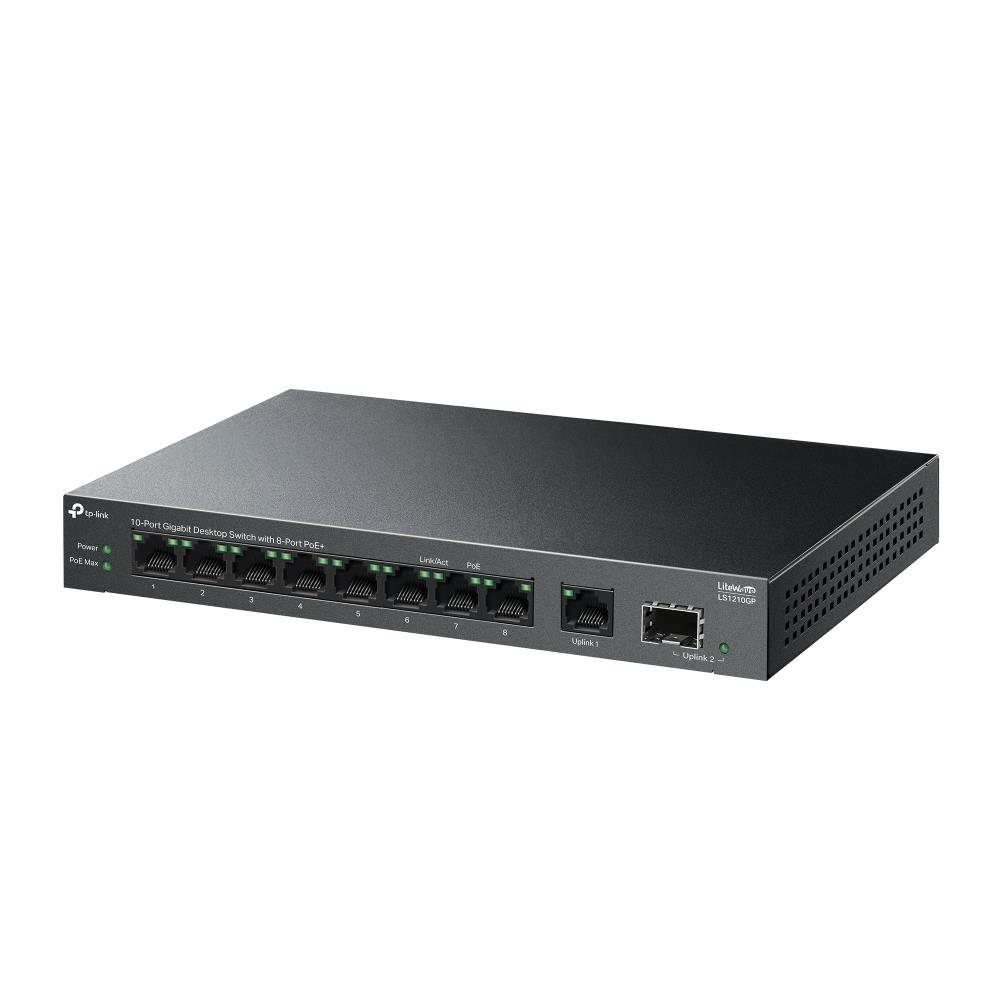

- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments
General
| Unit Calculated Weight | 1.2 kg |
| Unit Calculated Volume | 0.005376 cubm |
| Units per Shipping Box | 1 |
| Summary | TP-Link LiteWave 10-Port Gigabit Desktop Switch with 8-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE.... DC input voltage: 53.5 V. Power over Ethernet (PoE) |
| CnCode | 85176200 |
| Unit Box Height | 0.24 |
| Unit Box Length | 0.32 |
| Unit Box Width | 0.07 |
| Model name | LS1210GP |
Management features
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e |
| Flow control support | Yes |
| Networking standards | IEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
Data transmission
| Forwarding rate | 14.88 Mpps |
| Jumbo frames | 16000 |
| MAC address table | 4000 entries |
| Store-and-forward | Yes |
| Switching capacity | 20 Gbit/s |
Design
| LED indicators | Yes |
| Product colour | Black |
Power
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| DC input voltage | 53.5 V |
| Power consumption (max) | 76.96 W |
| Power source | DC/PoE |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 61 W |
Operational conditions
| Heat dissipation | 261.66 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 126 mm |
| Height | 26 mm |
| Width | 209 mm |
Packaging content
| User guide | Yes |
Packaging data
| Package type | Box |
Certificates
| Certification | CE, FCC, RoHS |
