MSI's flagship MEG series exemplifies relentless innovation, continuously setting new benchmarks in the gaming hardware space. This trailblazing series employs pioneering technology to push the boundaries of gaming, consistently leading with innovations that redefine what gamers expect.
General
| Unit Calculated Weight | 6.4 kg |
| Unit Calculated Volume | 0.018942 cubm |
| Units per Shipping Box | 2 |
| Model name | MEG AI1600T PCIE5 |
| Summary | MSI MEG Ai1600T PCIE5. Total power: 1600 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 24-pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Fan diameter: 13.5 cm. Width: 190 mm, Depth: 150 mm, Height: 86 mm |
| Unit Box Height | 0.25 |
| Unit Box Length | 0.385 |
| Unit Box Width | 0.15 |
Power
| AC input voltage | 100 - 240 V |
| Combined power (+12V) | 1600 W |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Efficiency | 94 % |
| Max output current (+12V) | 133.3 A |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Power Factor Correction (PFC) type | Active |
| Total power | 1600 W |

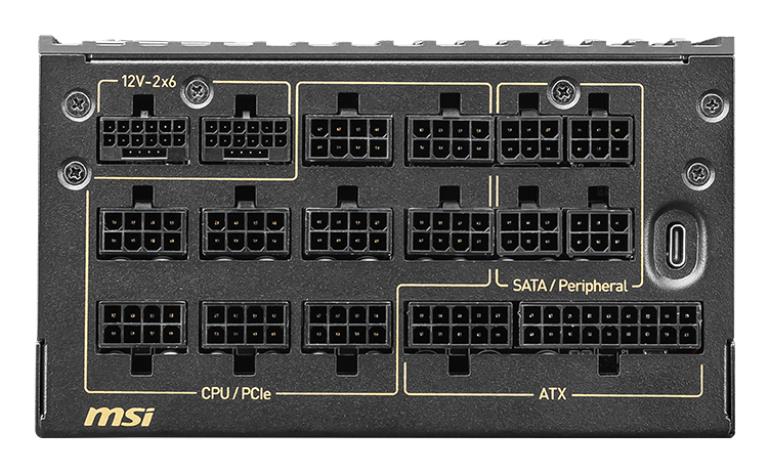

Ports & interfaces
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | No |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 8 |
| PCI Express power connectors (16-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 9 |
| Peripheral (Molex) power connectors (4-pin) | 8 |
Performance
| 80 PLUS certification | 80 PLUS Titanium |
| Bearing technology | DBB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design

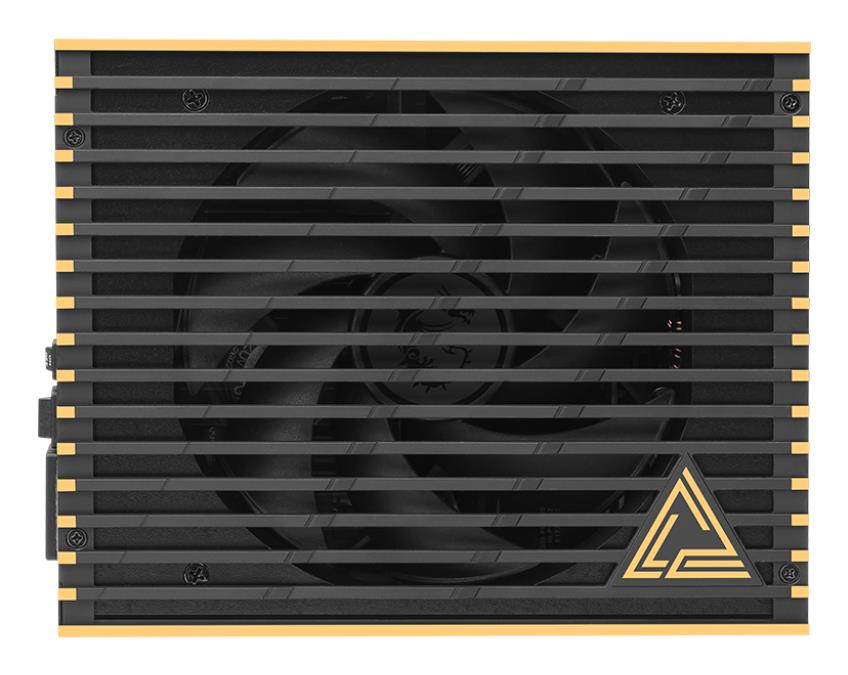

| Fan diameter | 135 mm |
| Product colour | Black |
Weight & dimensions
| Depth | 150 mm |
| Height | 86 mm |
| Width | 190 mm |
