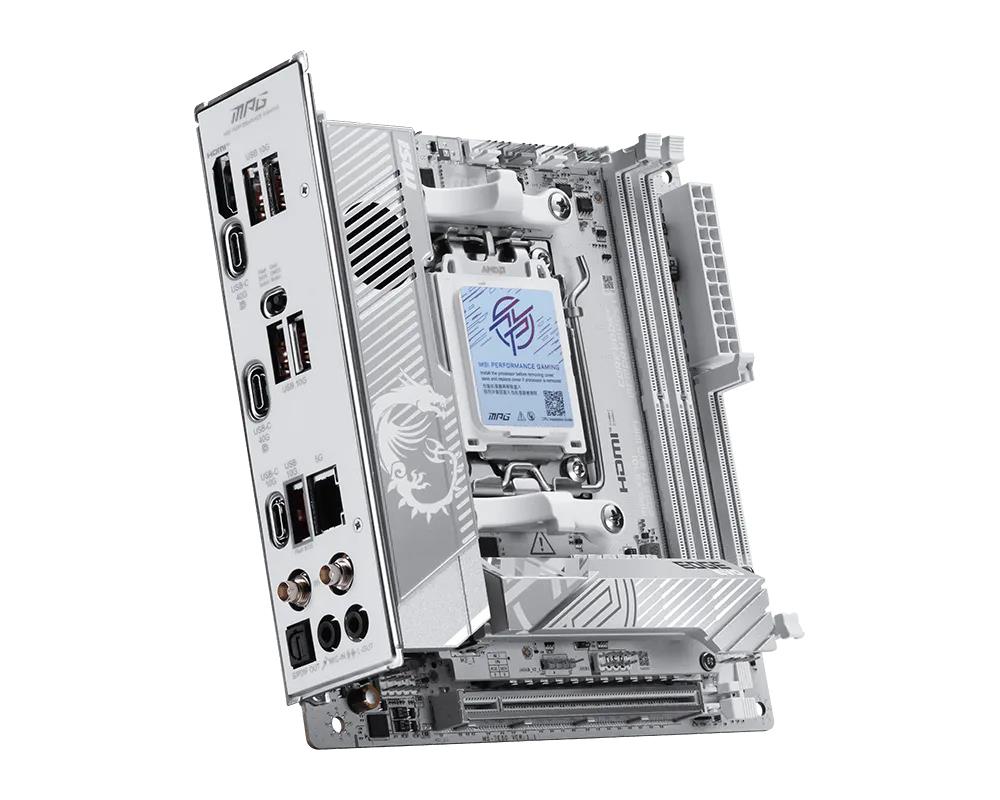

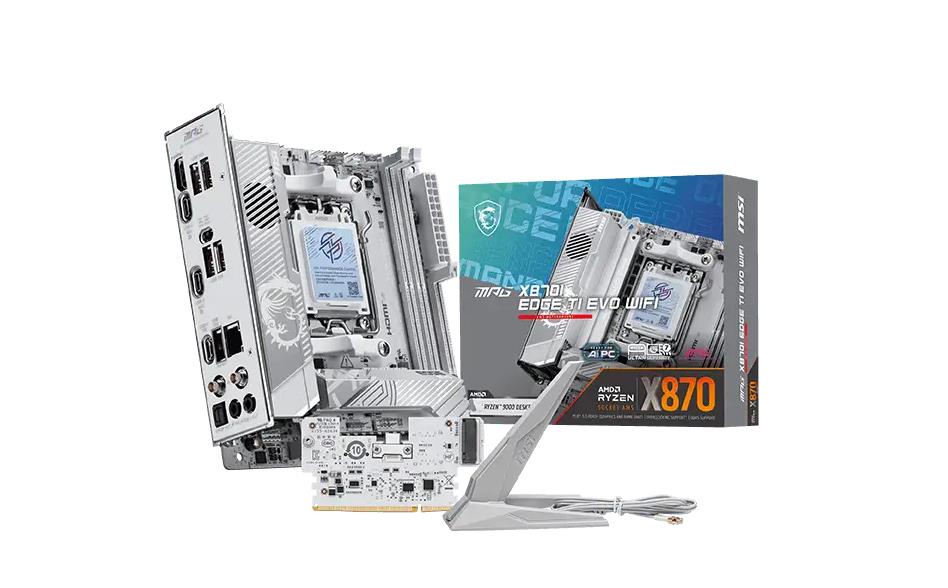

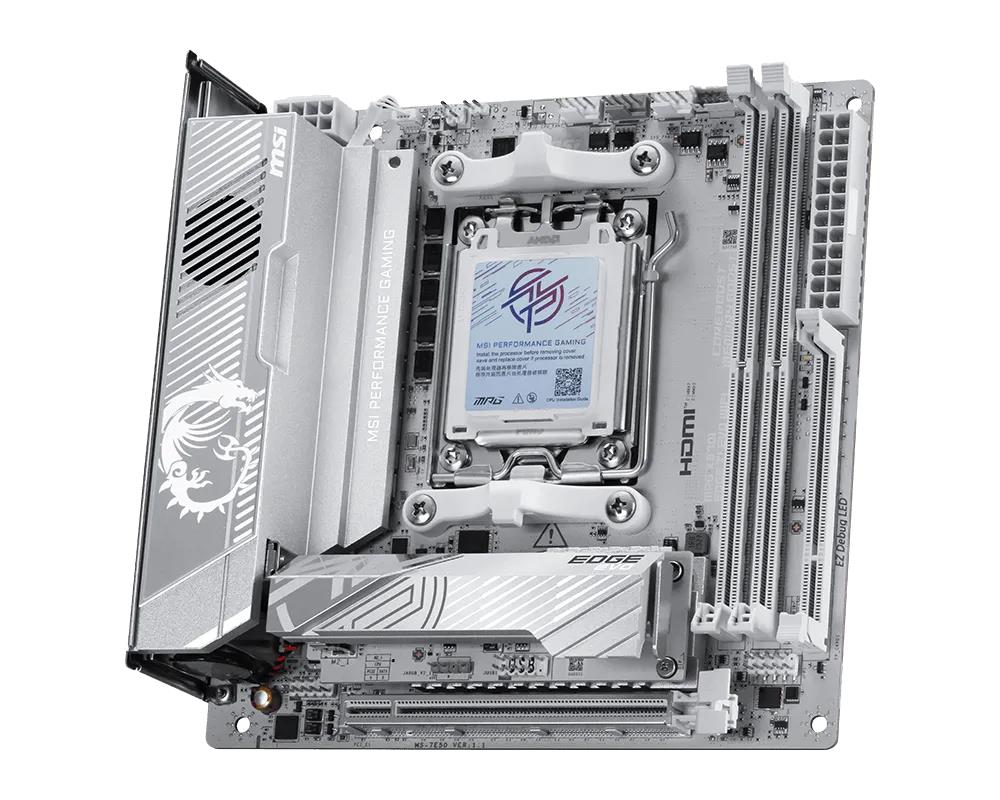

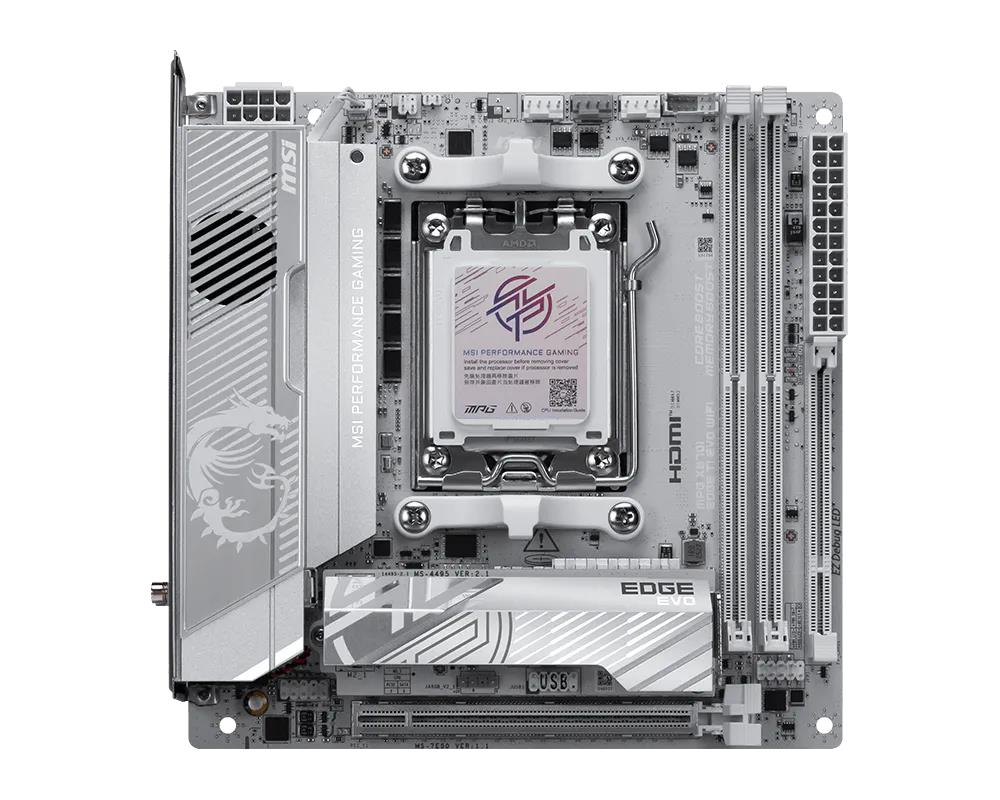

MPG X870I EDGE TI EVO WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, and this is the best white theme X870 ITX motherboard for AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 10000+ MT/s (OC)
- Ultra Performance: 8+2+1 Duet Rail Power System, Core Boost, Memory Boost, 12-layer PCB made by 1oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ Antenna, EZ Conn-Design and EZ Front Panel Cable
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
General
| Summary | MSI MPG X870I EDGE TI EVO WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: AMD |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.225 |
| Name | MB AMD X870 SAM5 MITX/MPG X870I EDGE TI EVO WIFI MSI |
Features
| Motherboard chipset family | AMD |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| PC health monitoring | CPU/Fan/Temperature/Voltage |
| Product colour | White |
| Audio chip | Realtek ALC4080 |
| Motherboard chipset | AMD X870 |
Processor
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
Memory
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 9000 MHz |
| Supported memory clock speeds | 7000/8000/9000 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
Storage controllers
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Number of HDDs supported | 2 |
| Number of storage drives supported | 3 |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
Graphics
| On-board graphics card | No |
Internal I/O
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Total number of SATA connectors | 2 |
| Number of SATA III connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 2 |
Rear panel I/O ports
| S/PDIF out port | Yes |
| Microphone in | Yes |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB4 Gen 2x2 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
Network
| Bluetooth version | 5.4 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8126 |
| Ethernet interface type | 5 Gigabit Ethernet |
| Ethernet LAN | Yes |
Expansion slots
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
BIOS
| System Management BIOS (SMBIOS) version | 3.7 |
| ACPI version | 6.5 |
| BIOS memory size | 512 Mbit |
| BIOS type | UEFI AMI |
Weight & dimensions
| Depth | 170 mm |
| Width | 170 mm |
