Indoor/Outdoor airMAX® CPE Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
General
| Unit Calculated Weight | 0.67 kg |
| Unit Calculated Volume | 0.002772 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |
| Summary | Ubiquiti NanoStation M2. Antenna gain level (max): 11.2 dBi. Wi-Fi band: Single-band (2.4 GHz), Frequency band: 2.412 - 2.462 GHz. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Connectivity technology: Wired & Wireless. Product type: Network bridge, Material: Plastic, Mounting type: Pole |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.3 |
| Unit Box Width | 0.085 |
Antenna
| Antenna gain level (max) | 11.2 dBi |
Wireless LAN features
| Frequency band | 2.412 - 2.462 GHz |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (2.4 GHz) |
Network
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Ethernet LAN interface type | Fast Ethernet |
Ports & interfaces
| Connectivity technology | Wired & Wireless |

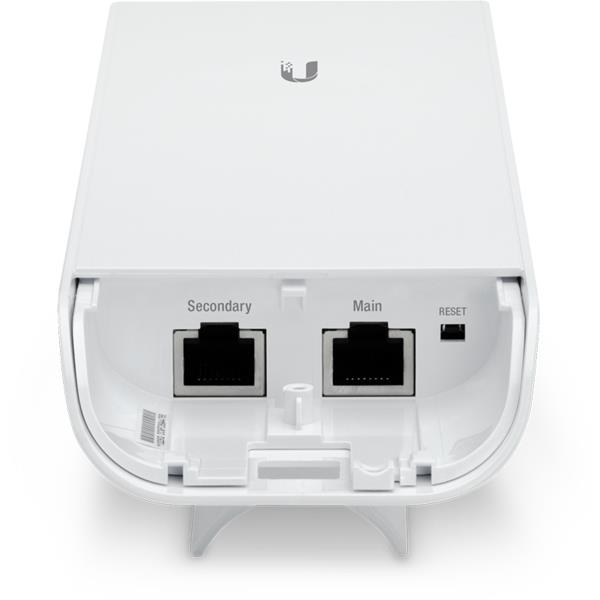

| Ethernet LAN (RJ-45) ports | 2 |
Features
| Internal memory | 32 MB |
| Material | Plastic |
| Mounting type | Pole |
| Processor family | Atheros |
| Processor frequency | 400 MHz |
| Processor model | MIPS 24Kc |
| Product colour | White |
| Product type | Network bridge |
| RAM type | SDRAM |
Power
| Power consumption (max) | 8 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 24 V |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -30 - 75 °C |
Certificates
| Certification | FCC 15.247, IC RS210, CE, RoHS |
Weight & dimensions
| Depth | 31 mm |
| Height | 294 mm |
| Weight | 400 g |
| Width | 80 mm |
Memory
| Flash memory | 8 MB |
Logistics data
| Harmonized System (HS) code | 85176990 |
