- 4 IP channel max, up to 16MP resolution
- Max: 80Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps
- 1 SATA III port, up to 16 TB for a single HDD
- PoE 4 ports, 10/100 Mbps, IEEE 802.3 af/at, total 36W max
- No front panel control, no alarm I/O, 2 USB, Two-way Talk: 1/1
- Desktop mounted chassis
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.
- Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
- Other brands IP cameras supported
General

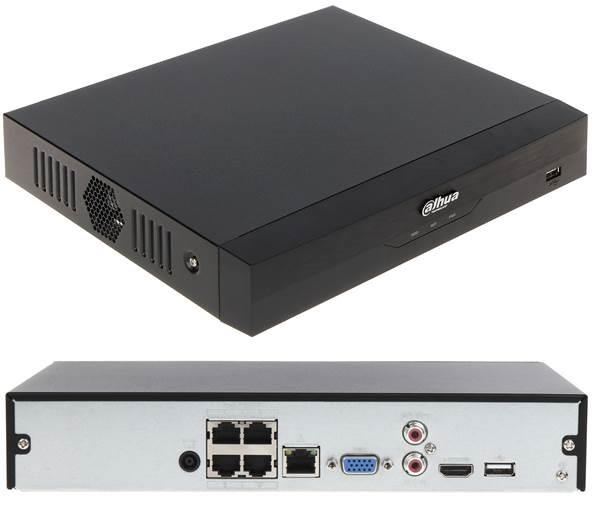

| Model | NVR4104HS-P-EI |
| Number of Channels | 4 |
| Number of drives/bays | 1 |
| Unit Box Height | 0.305 |
| Unit Box Length | 0.37 |
| Unit Box Width | 0.115 |
| PoE ports | 4 |
| Power supply requirements | 53 VDC, 1.226 A |
| Power consumption | 36 Watts |
| Dimensions | 260 mm × 232.7 mm × 47.6 mm |
| Operating temperature range | –10 °C to +55 °C |
| Units per Pallet | 0 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.0151 cubm |
| Product Net Weight | 0.86 kg |
| Unit Calculated Weight | 2.1 kg |
Input/Output connectors
| 15pin D-sub | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
