- 4 IP channel max, up to 8MP resolution
- Max: 160Mbps recording bandwidth, Smart H.265/H.265/Smart H.264/H.264/MJPE
- VGA/HDMI up to 4K output, decoding 4 × 1080p @ 30 fps
- 2 SATA III ports, up to 10 TB for a single HDD
- No front panel control, 4/2 alarm I/O, 2 USB, Two-way Talk: 1/1 I/O
- Desktop mounted chassis
- AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
- Free IP monitoring software available, ONVIF(profile T/S/G); CGI; SDK
- Other brands IP cameras supported
General

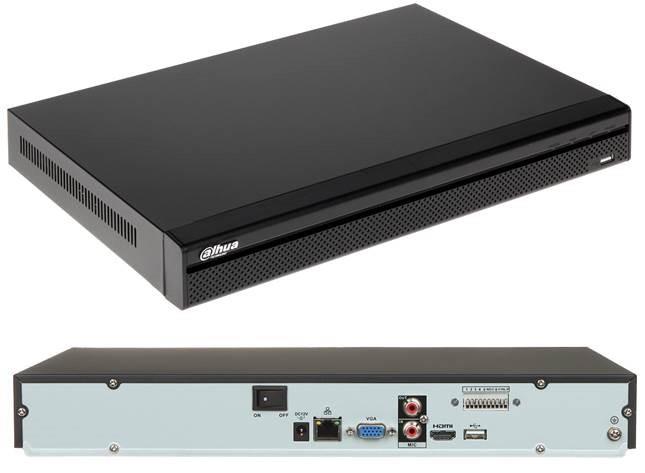

| Model | NVR4204-4KS2/L |
| Number of Channels | 4 |
| Unit Box Height | 0.36 |
| Unit Box Length | 0.435 |
| Unit Box Width | 0.14 |
| Power supply requirements | DC12 V, 4 A |
| Dimensions | 375 mm × 282.4 mm × 53 mm |
| Operating temperature range | –10 °C to +55 °C |
| Colour | Black |
| Units per Pallet | 0 |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.02621 cubm |
| Product Net Weight | 1.51 kg |
| Unit Calculated Weight | 3.06 kg |
Input/Output connectors
| 15pin D-sub | 1 |
| Alarm In | 4 |
| Alarm Out | 2 |
| Audio-In | 1 |
| Audio-Out | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
