- 8 IP channel max, up to 16 MP resolution
- 256 Mbps record rate, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG encoding
- VGA/HDMI up to 4K output
- Decoding Capability: 16 × 1080p @ 30 fps
- 2 SATA III ports, up to 16 TB for a single HDD, 10/100M/1G LAN
- No front panel control, 1/1 Audio I/O, 4/2 Alarm I/O, 2 USB
- 8 PoE ports: Total output power of PoE is 130W, the maximum output power of a single port is 25.5W
- Desktop mounted chassis (black), mouse included
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
- Free IP monitoring software available
- ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK
- Other brands IP cameras supported by ONVIF; RTSP.
General

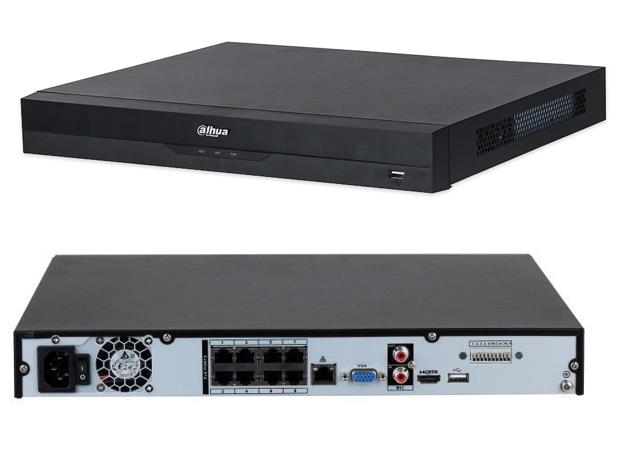

| Model | NVR4208-8P-EI |
| Number of Channels | 8 |
| Unit Box Height | 0.42 |
| Unit Box Length | 0.455 |
| Unit Box Width | 0.143 |
| PoE ports | 8 |
| Power supply requirements | 100–240 VAC, 47-63 Hz |
| Dimensions | 375x329.3x53mm |
| Operating temperature range | –10 °C to +55 °C |
| Units per Pallet | 0 |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.0219 cubm |
| Product Net Weight | 2.51 kg |
| Unit Calculated Weight | 4 kg |
Input/Output connectors
| 15pin D-sub | 1 |
| Alarm In | 4 |
| Alarm Out | 2 |
| Audio-In | 1 |
| Audio-Out | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
