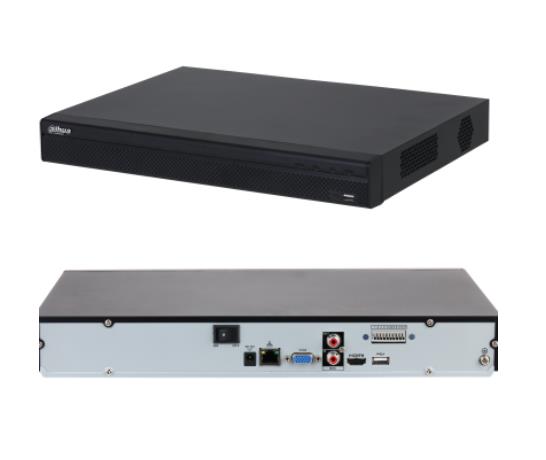

32CH 1U 2HDDs Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
> Max. 160/128/60 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 2-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
> Supports EPTZ, and one-click arming and disarming.
General
| Number of Channels | 32 |
| Number of drives/bays | 2 |
| Unit Box Height | 0.365 |
| Unit Box Length | 0.43 |
| CPU | Industrial-grade |
| Unit Box Width | 0.14 |
| Power supply requirements | 12 VDC, 4 A |
| Power consumption | 10 Watts |
| Dimensions | 375.0 × 282.9 × 53.0 mm |
| Operating temperature range | –10 °C to +55 °C |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.02197 cubm |
| Product Net Weight | 1.49 kg |
| Unit Calculated Weight | 2.8 kg |
Mounting Type
| Desktop/pedestal | Yes |
| Rack 1U | Yes |
Input/Output connectors
| 15pin D-sub | 1 |
| Alarm In | 4 |
| Alarm Out | 2 |
| Audio-In | 1 |
| Audio-Out | 1 |
| HDMI | 1 |
| RJ45 | 1 |
