The CHIEFTEC VEGA Series power supply is built to Intel’s ATX 12V 3.1 standard and supports PCIe GEN5 with 80PLUS Gold certified efficiency. It prioritizes a competitive price-to-performance ratio up to 850W while maintaining the trusted Chieftec quality.
The Vega Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability. The equipped extra-long native black cables make it suitable for mainstream gamers to build their system, even in larger PC cases.

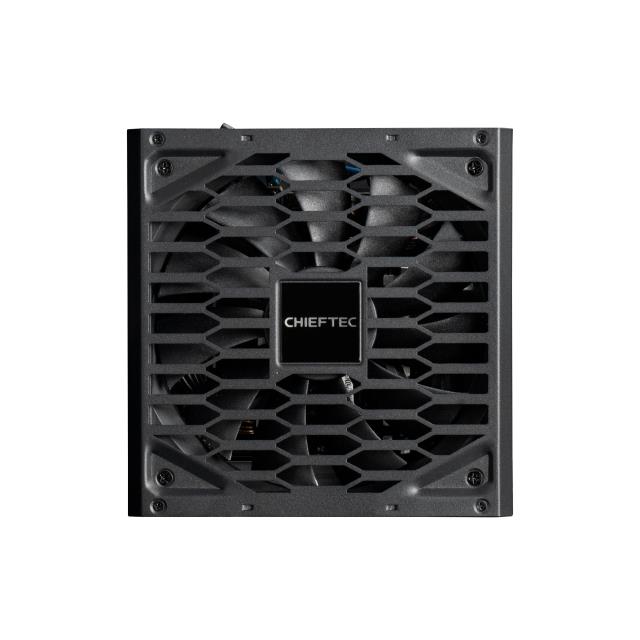

Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels. The Vega Series is your trusted reliable choice for all computing needs incorporating all necessary modern protection and safety features.
- Compliant with ATX 12V 3.1
- Support PCIe GEN5
- 80PLUS Gold certified efficiency
- LLC Half-Bridge converter with DC to DC technology
General
| Unit Calculated Weight | 2.54 kg |
| Unit Calculated Volume | 0.007626 cubm |
| Units per Shipping Box | 5 |
| Model name | PPG-850-S |
| Summary | Chieftec Vega PPG-850-S Watt. Total power: 850 W, AC input voltage: 100 - 240 V, Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection.... Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Certification: 80PLUS Gold |
| CnCode | 85044095 |
| Unit Box Height | 0.21 |
| Unit Box Length | 0.28 |
| Unit Box Width | 0.105 |
Power
| AC input voltage | 100 - 240 V |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Surge and inrush/Under voltage |
| Total power | 850 W |
Ports & interfaces
| ATX power connector (20+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Non-Modular |
| CPU power cable length | 650 mm |
| CPU power connector (4+4 pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Motherboard power cable length | 600 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power cable length | 600 mm |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 400 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 400 mm |
Performance
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design
| Cooling type | Active |
| Fan diameter | 135 mm |
| Illumination | No |
| Number of fans | 1 fan(s) |
| Product colour | Black |
Certificates
| Certification | 80PLUS Gold |
Weight & dimensions
| Weight | 2070 g |
Packaging data
| Package weight | 2540 g |
