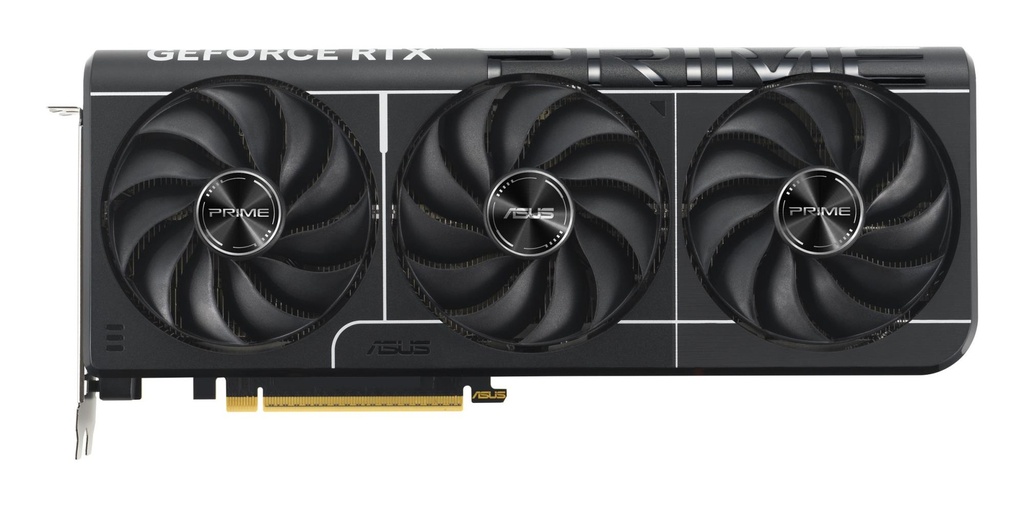

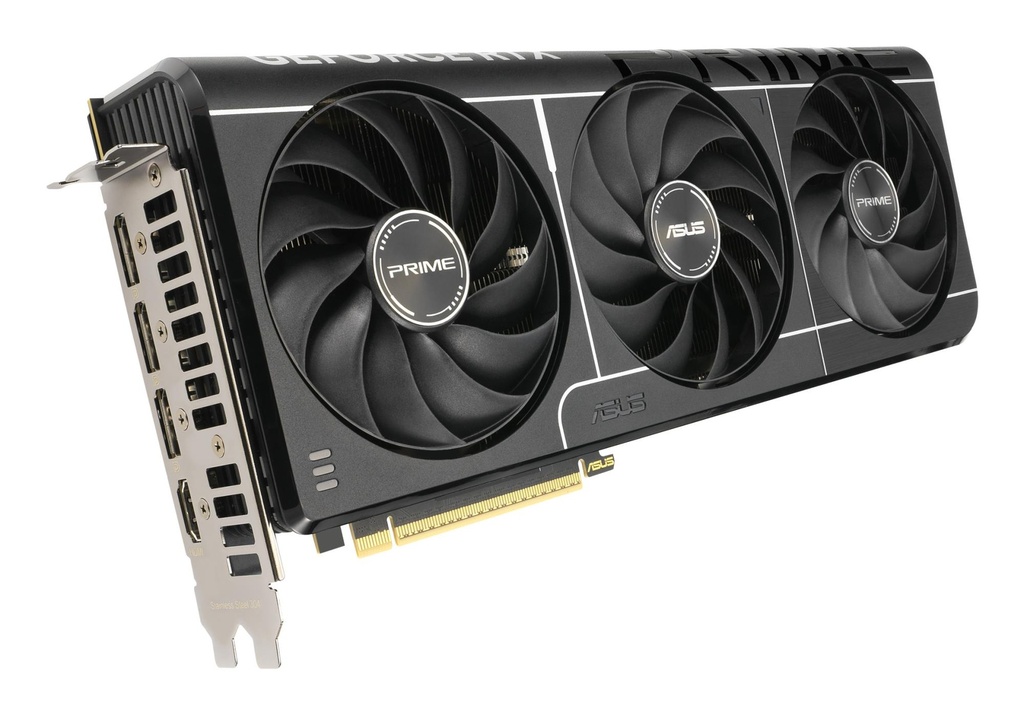

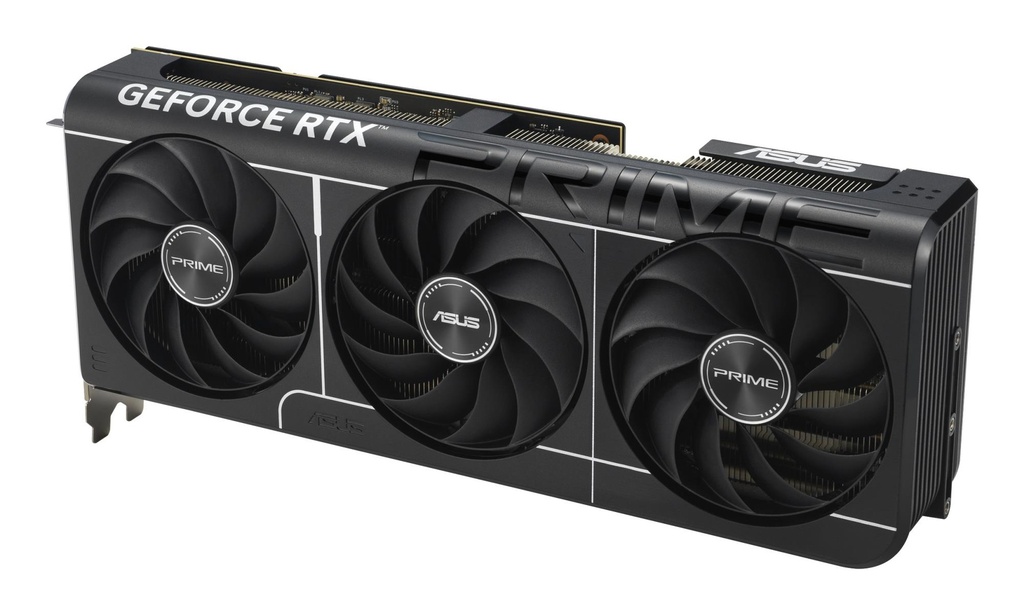

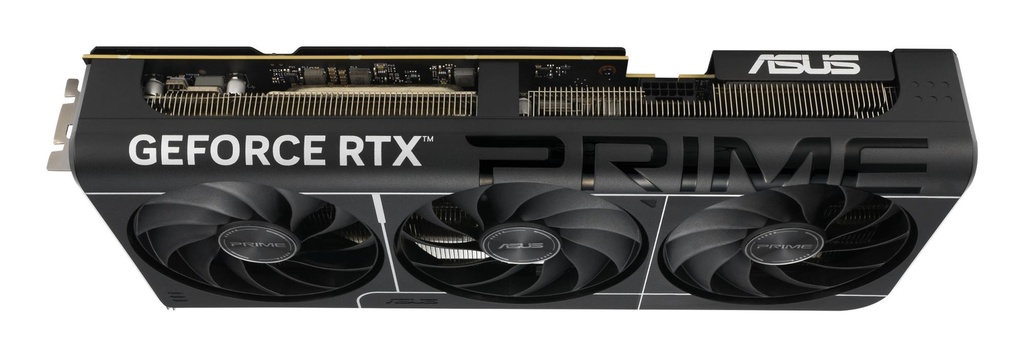

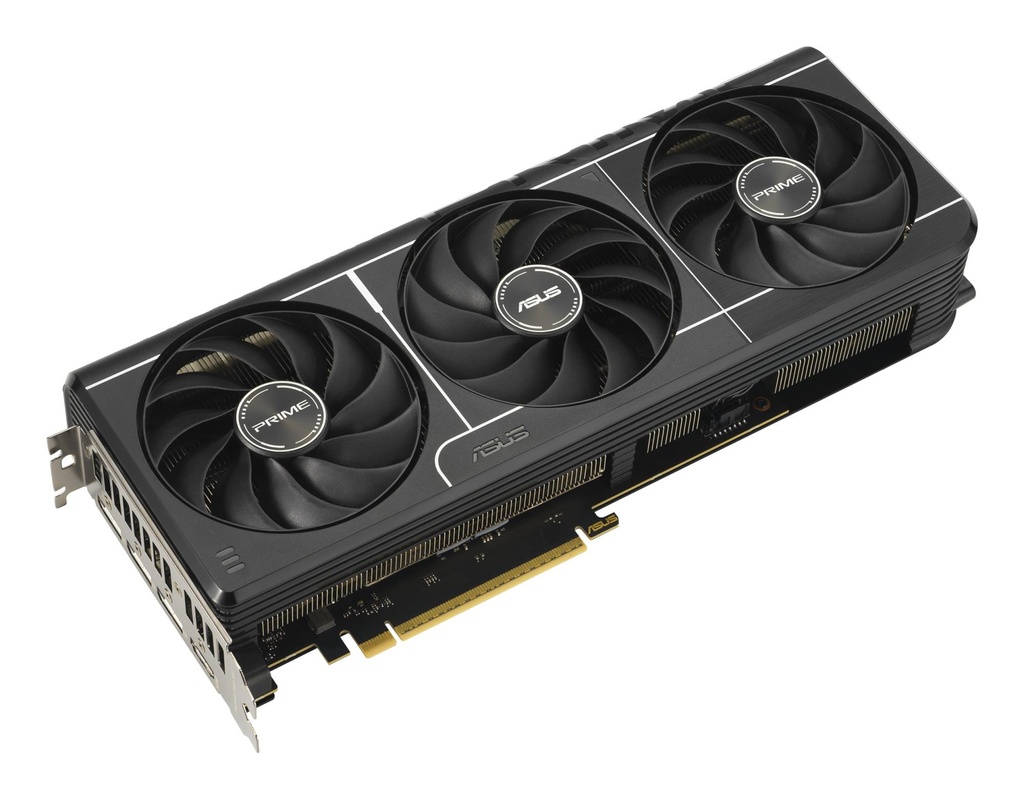

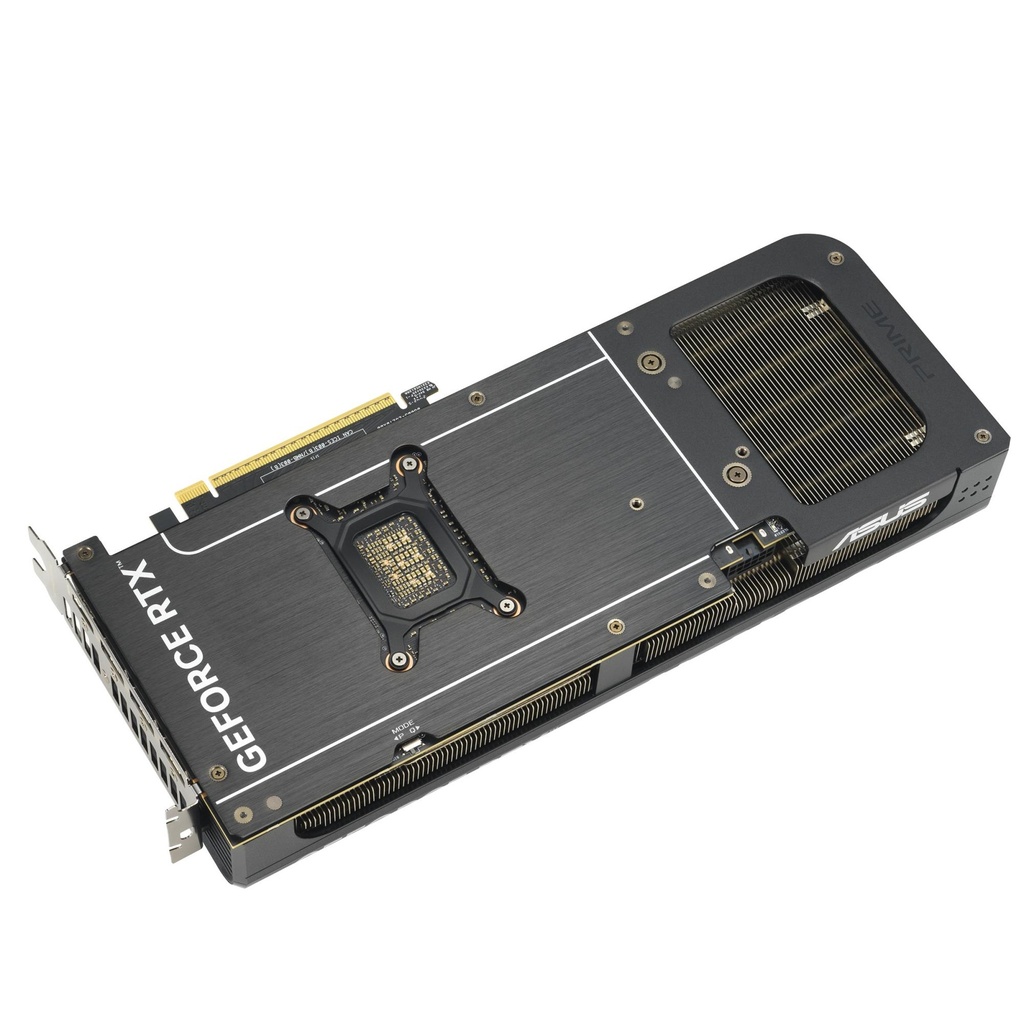

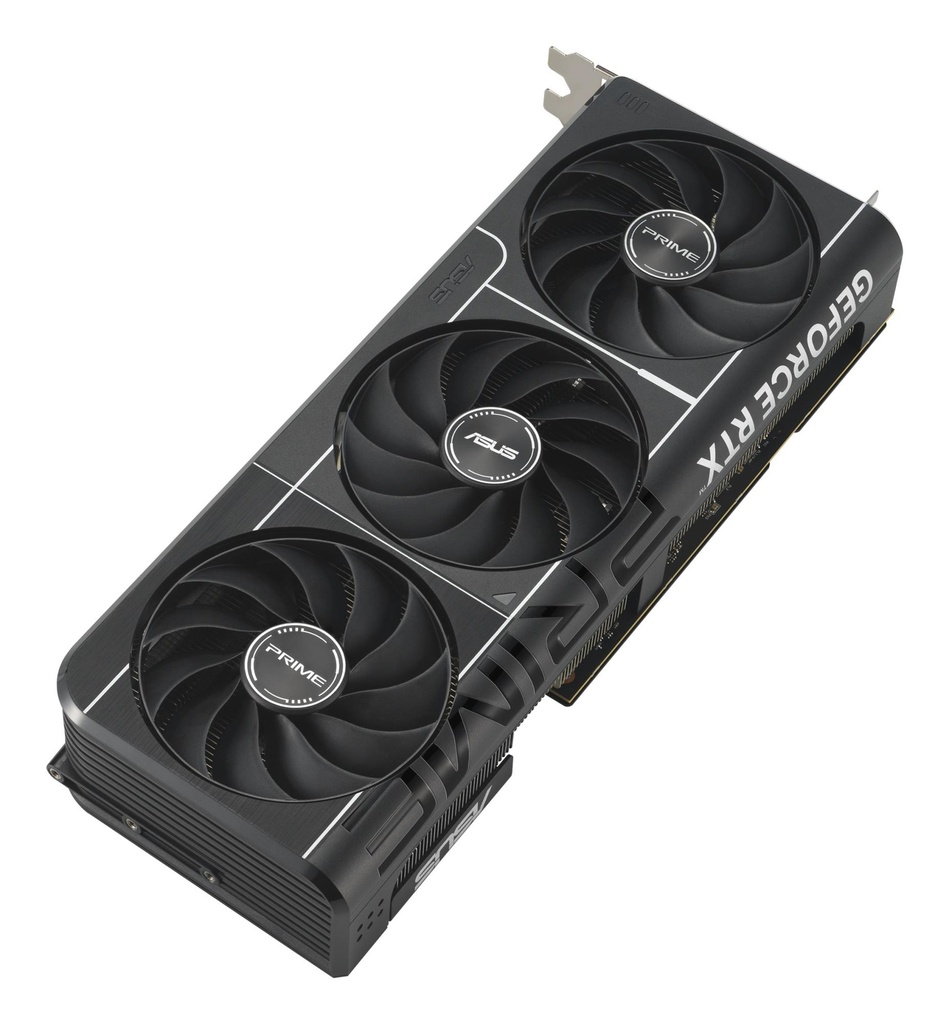

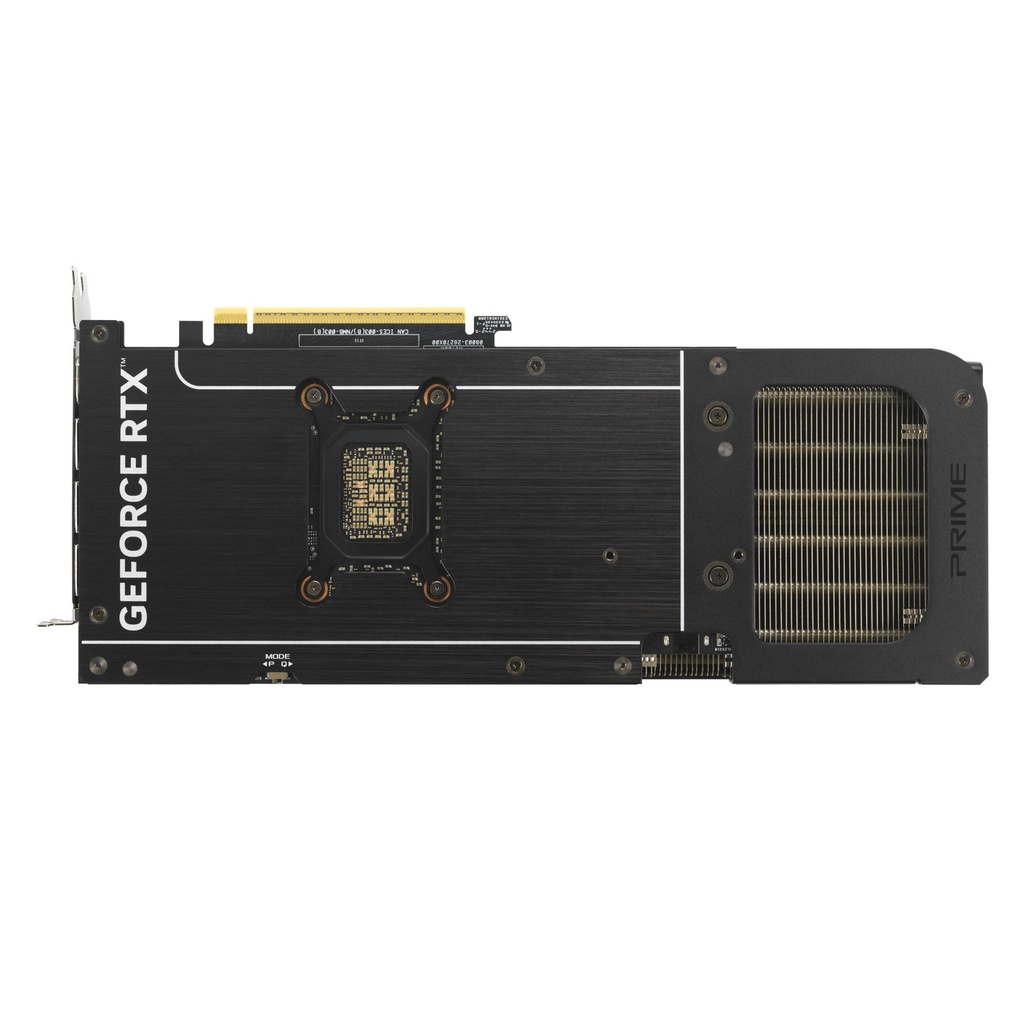

The SFF-Ready ASUS Prime GeForce RTX™ 5080 OC Edition 16GB GDDR7 boasts three Axial-tech fans and a vapor chamber for supreme cooling.
General
| Unit Calculated Weight | 2.14 kg |
| Product Net Weight | 1 kg |
| Unit Calculated Volume | 0.0101 cubm |
| Units per Shipping Box | 5 |
| Units per Pallet | 0 |
| Model | PRIME-RTX5080-O16G |
| Summary | ASUS Prime -RTX5080-O16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5080. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s) |
| CnCode | 84718000 |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.41 |
| Unit Box Width | 0.235 |
Processor
| CUDA | Yes |
| CUDA cores | 10752 |
| Graphics processor | GeForce RTX 5080 |
| Graphics processor family | NVIDIA |
| Maximum displays per videocard | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
Memory
| Data transfer rate | 30 Gbit/s |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
Ports & interfaces
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Interface type | PCI Express 5.0 |
Performance
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| NPU performance up to | 1801 TOPs |
| NVIDIA G-SYNC | Yes |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
Design
| Cooling technology | ASUS Axial-tech |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Number of slots | 2.5 |
| Product colour | Multicolour |
Power
| Minimum system power supply | 850 W |
| Supplementary power connectors | 1x 16-pin |
System requirements
| Windows operating systems supported | Yes |
Weight & dimensions
| Depth | 50 mm |
| Height | 126 mm |
| Length | 306 mm |
| Weight | 1340 g |
Packaging data
| Package depth | 233 mm |
| Package height | 88.5 mm |
| Package type | Box |
| Package weight | 1990 g |
| Package width | 405 mm |
