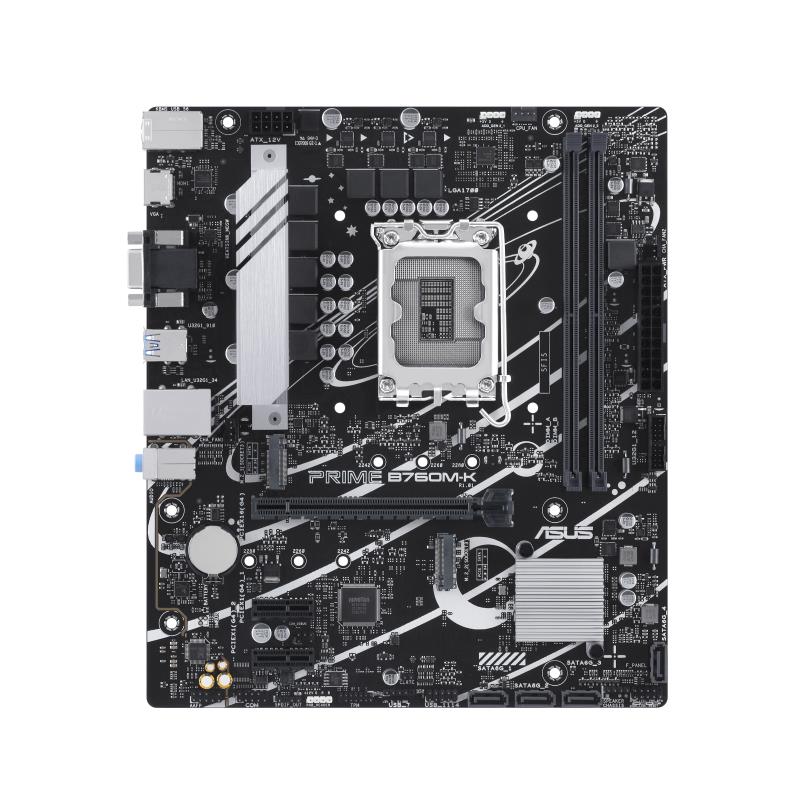

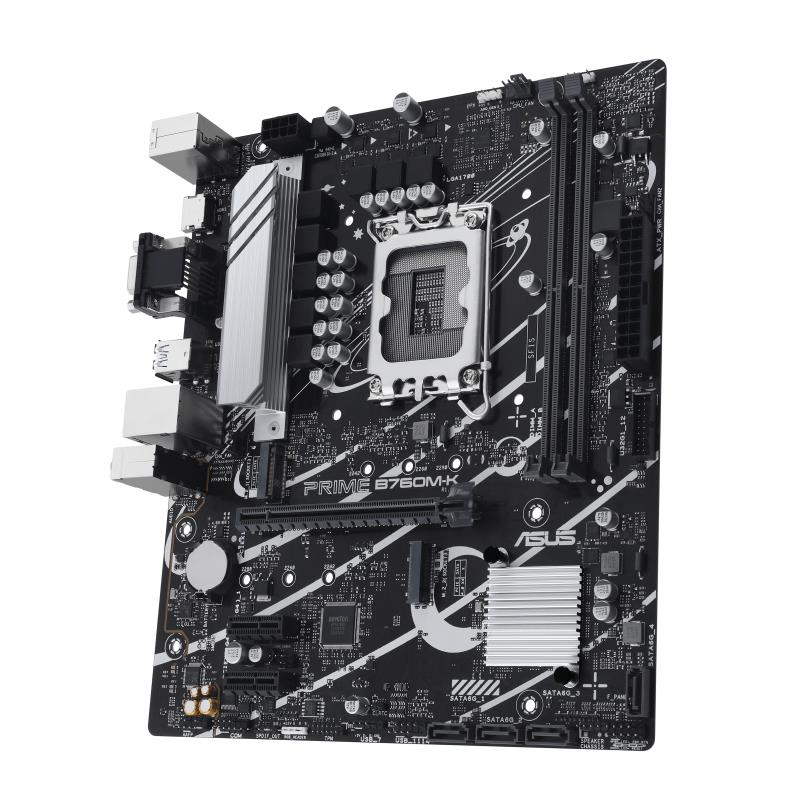

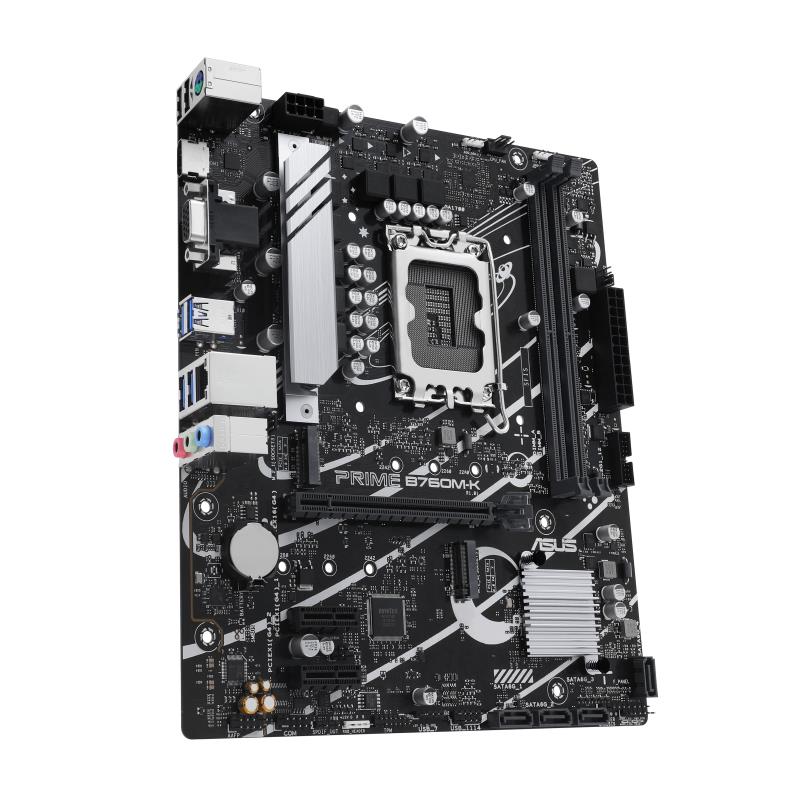

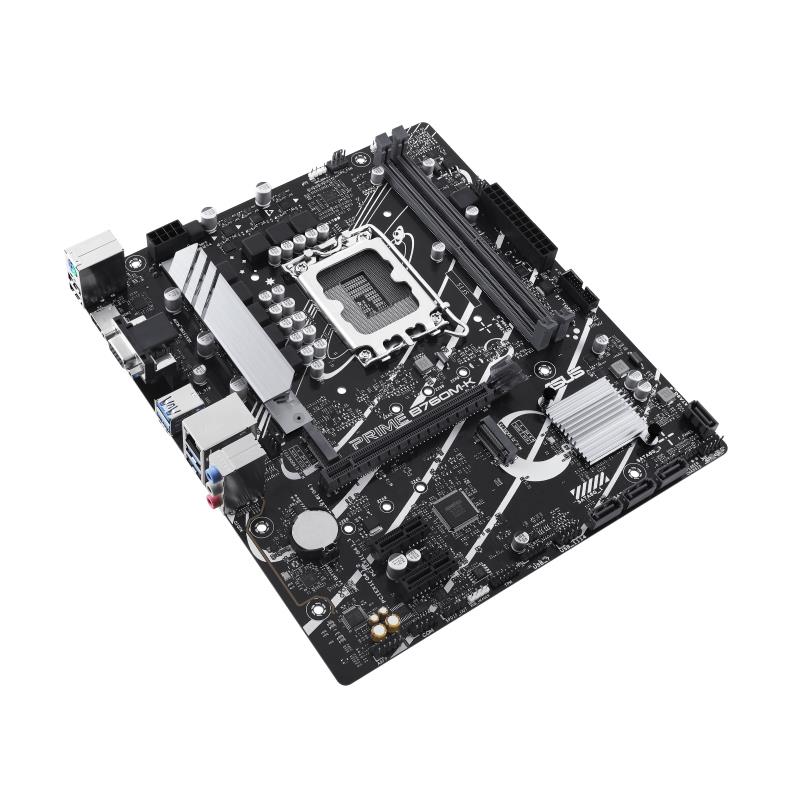

B760M-K
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
General
| Summary | ASUS PRIME B760M-K. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.275 |
| Unit Box Width | 0.265 |
| Model | PRIME B760M-K |
Features
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Windows operating systems supported | Windows 10 x64/Windows 11 |
Processor
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
Memory
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 96 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 8000 MHz |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
Storage controllers
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
Graphics
| Parallel processing technology support | Not supported |
Internal I/O
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |

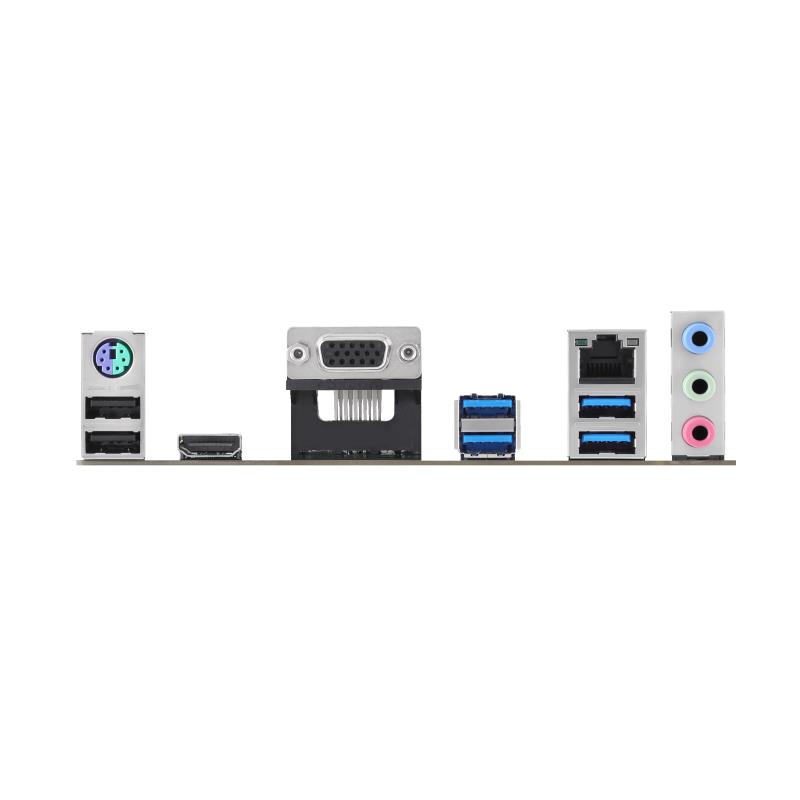

Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| S/PDIF out port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Expansion slots
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
BIOS
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
Packaging data
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 1015 g |
| Package width | 270 mm |
Weight & dimensions
| Depth | 211 mm |
| Width | 244 mm |

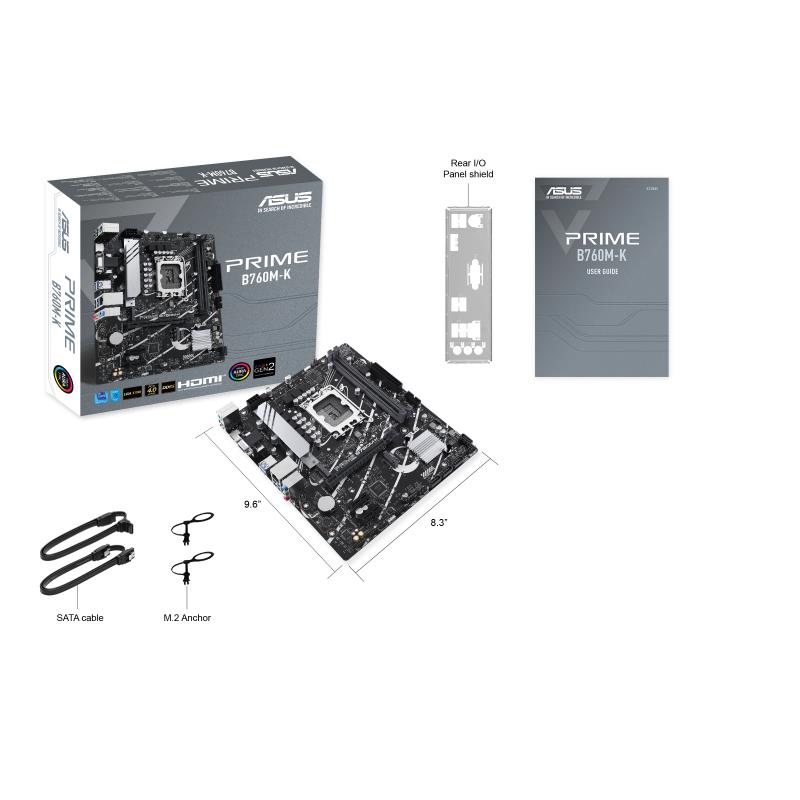

Packaging content
| Cables included | SATA |
ELKO Logistics Data
| Product Net Weight | 0.7 kg |
| Unit Calculated Weight | 1.02 kg |
| Units per Shipping Box | 10 |
ELKO Internal Logistics Data
| Shipping Box Depth | 56.5 cm |
| Shipping Box Height | 29.5 cm |
| Shipping Box Weight | 10.2 kg |
| Shipping Box Width | 29 cm |
| Unit Calculated Volume | 0.004834 cubm |
