Native PCIe 12V-2x6 Cable
Dual Color Design
With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.
80 PLUS CERTIFIED
The PRO series is created for value-focused users, offering 80 PLUS Gold models in 850W, 750W, and 650W options.
Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 3 –Year warranty, guaranteeing long term reliable and peace of mind operation.
- 80 PLUS® GOLD Certified
- ATX3.1 & PCIe5.1 Ready
- Native 12V-2x6 Connector Dual Color Design (450W)

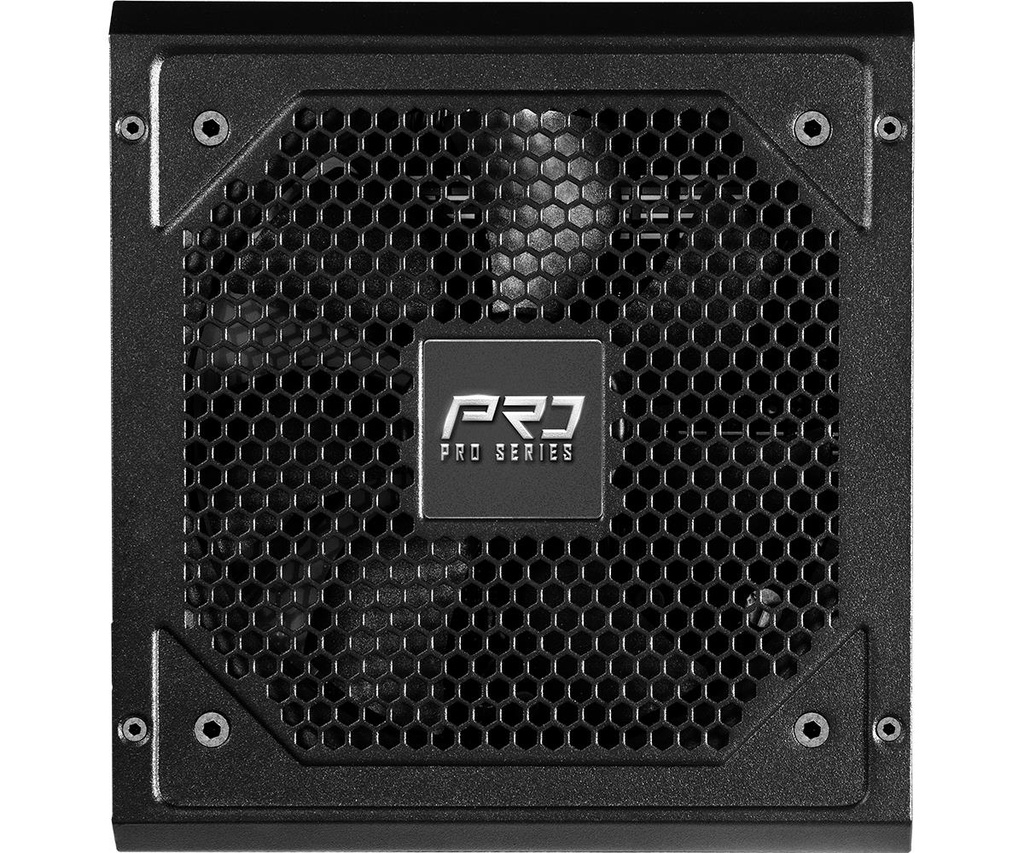

- Low noise 120mm FAN
General
| Unit Calculated Weight | 2.33 kg |
| Unit Calculated Volume | 0.006526 cubm |
| Units per Shipping Box | 6 |
| Units per Pallet | 0 |
| Model name | PRO-750G |
| Summary | Asrock PRO-750G. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 450,570,690 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm |
| CnCode | 85044095 |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.195 |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (+12V) | 750 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Input current | 10 - 5 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 750 W |

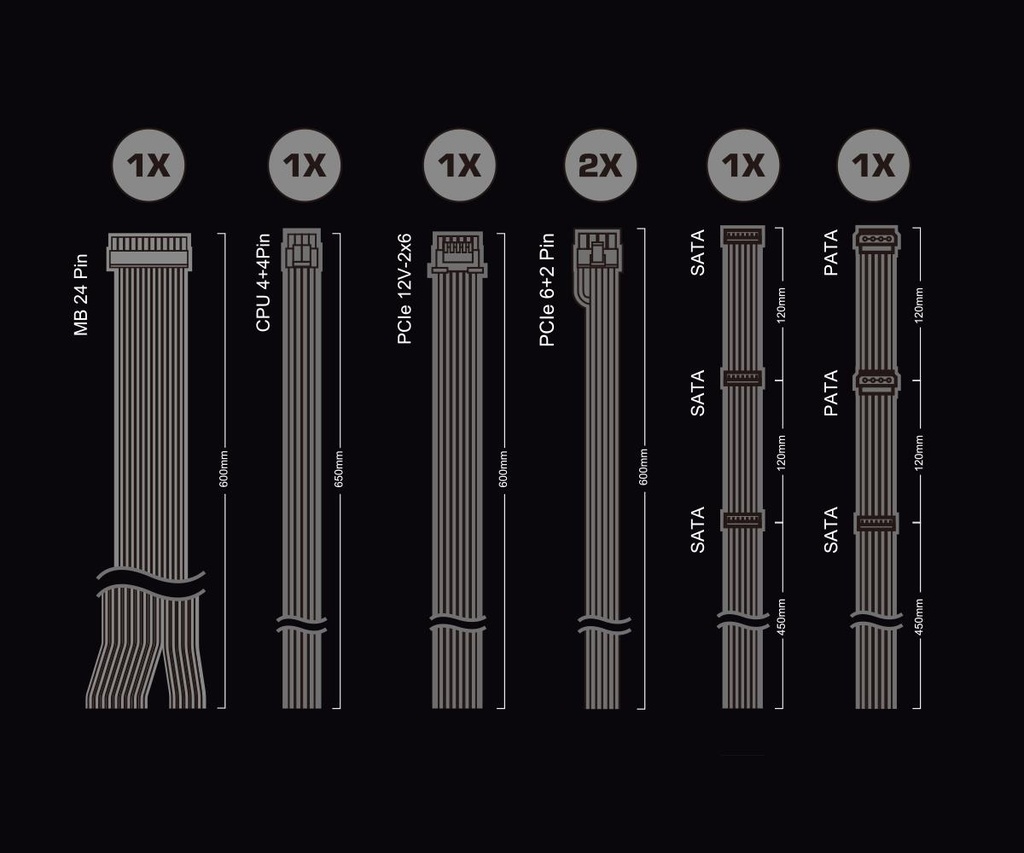

Ports & interfaces
| CPU power connector (4+4 pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| Motherboard power cable length | 600 mm |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power cables | 2 |
| Number of SATA power connectors | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| SATA power cable length | 450/570/690 mm |
Performance
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 100000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design
| Cooling type | Active |
| Fan diameter | 120 mm |
| Illumination | No |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
Weight & dimensions
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
Packaging data
| Package type | Box |
Logistics data
| Warranty period | 3 year(s) |
