Visionary. Versatile. Timeless.

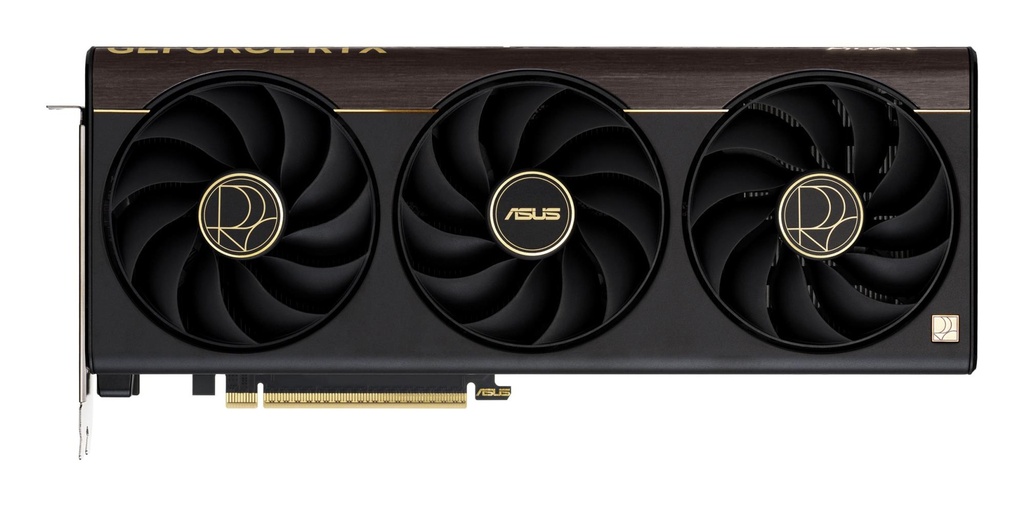

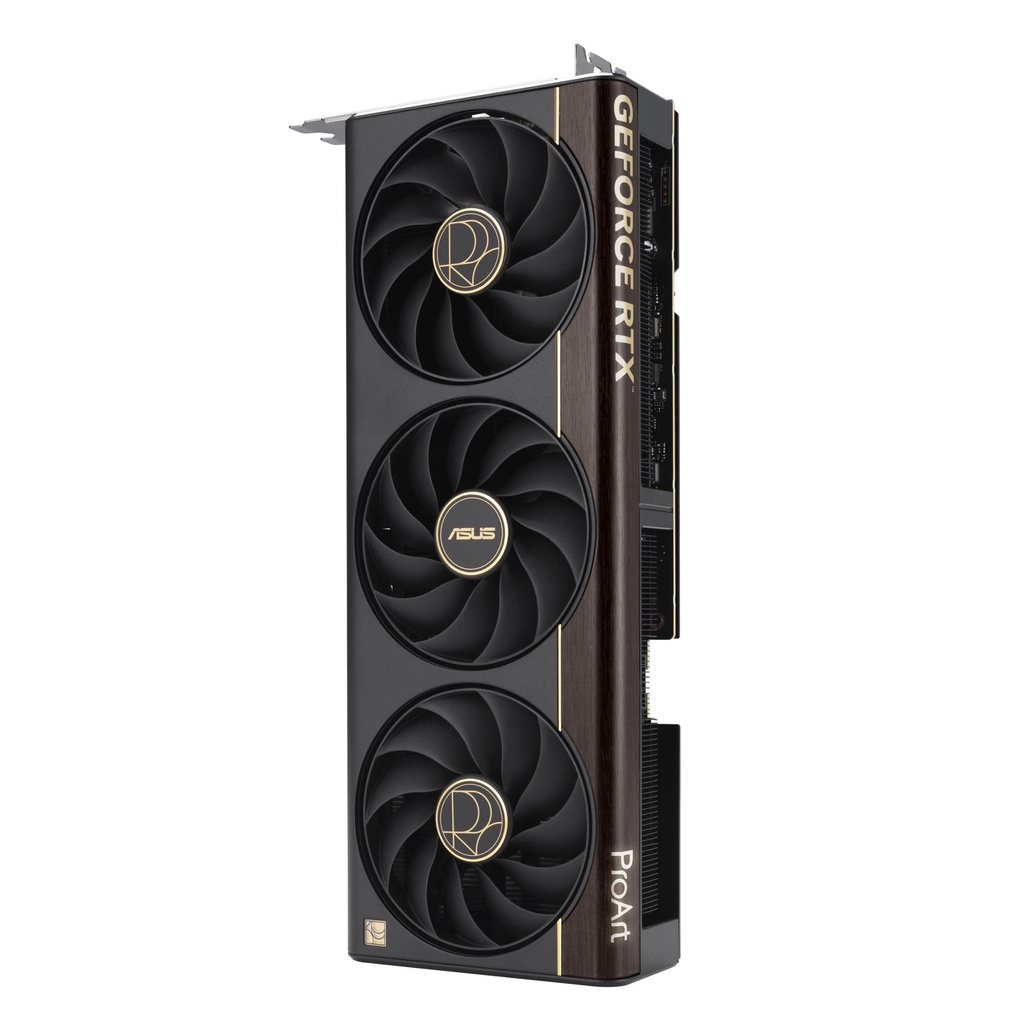

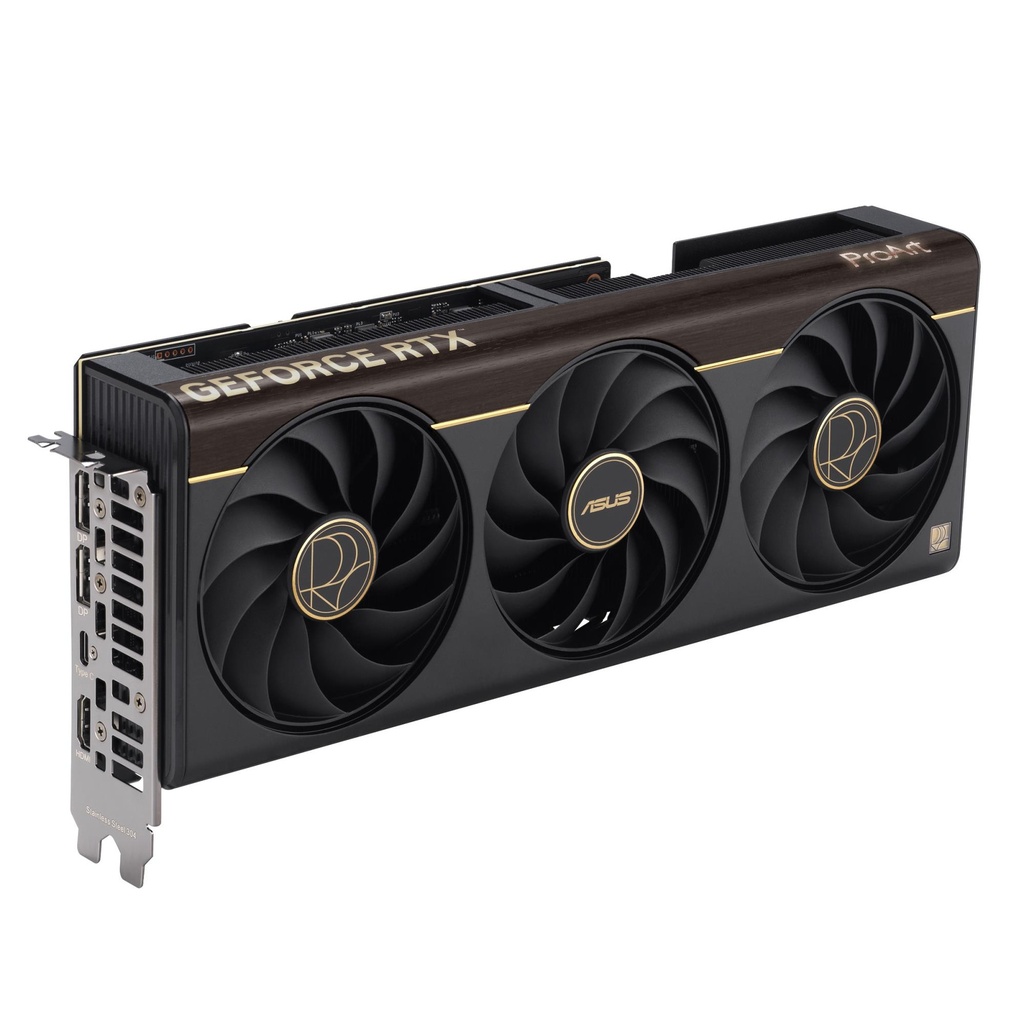

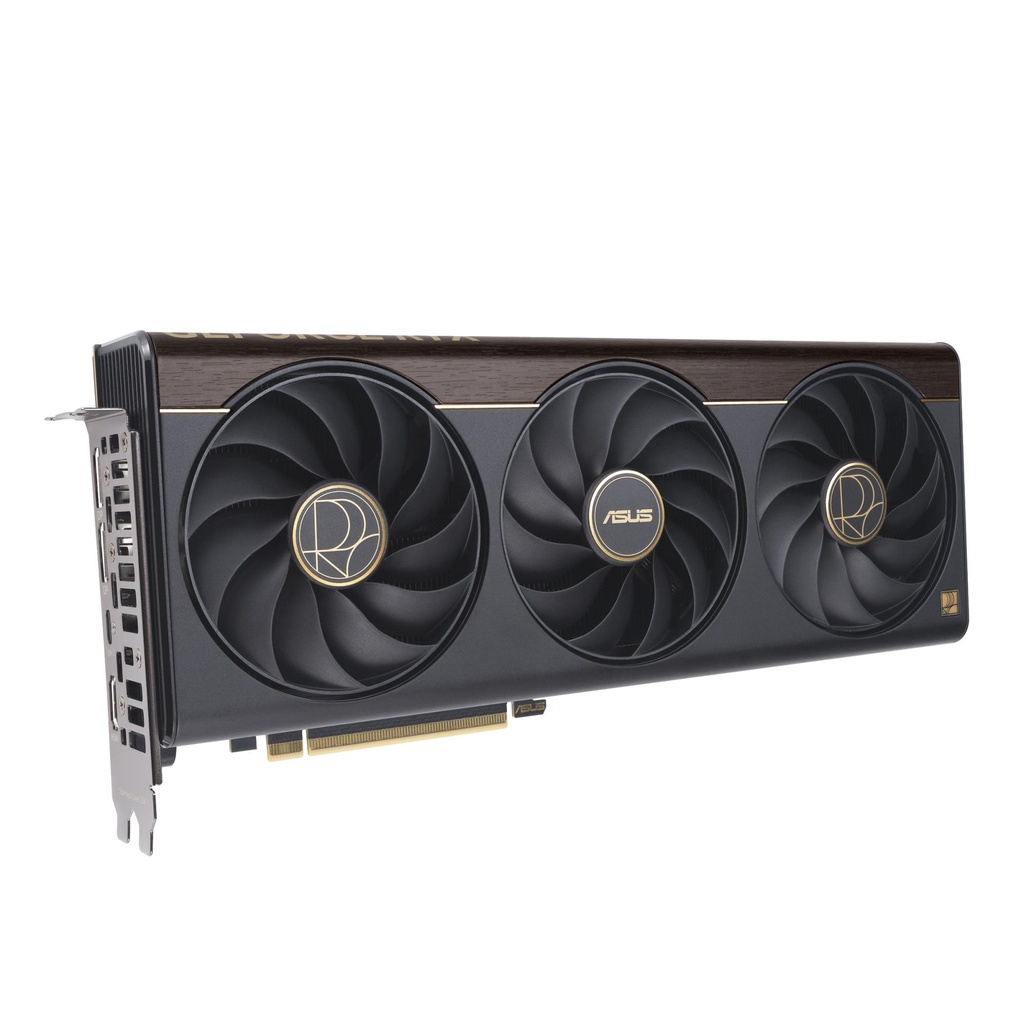

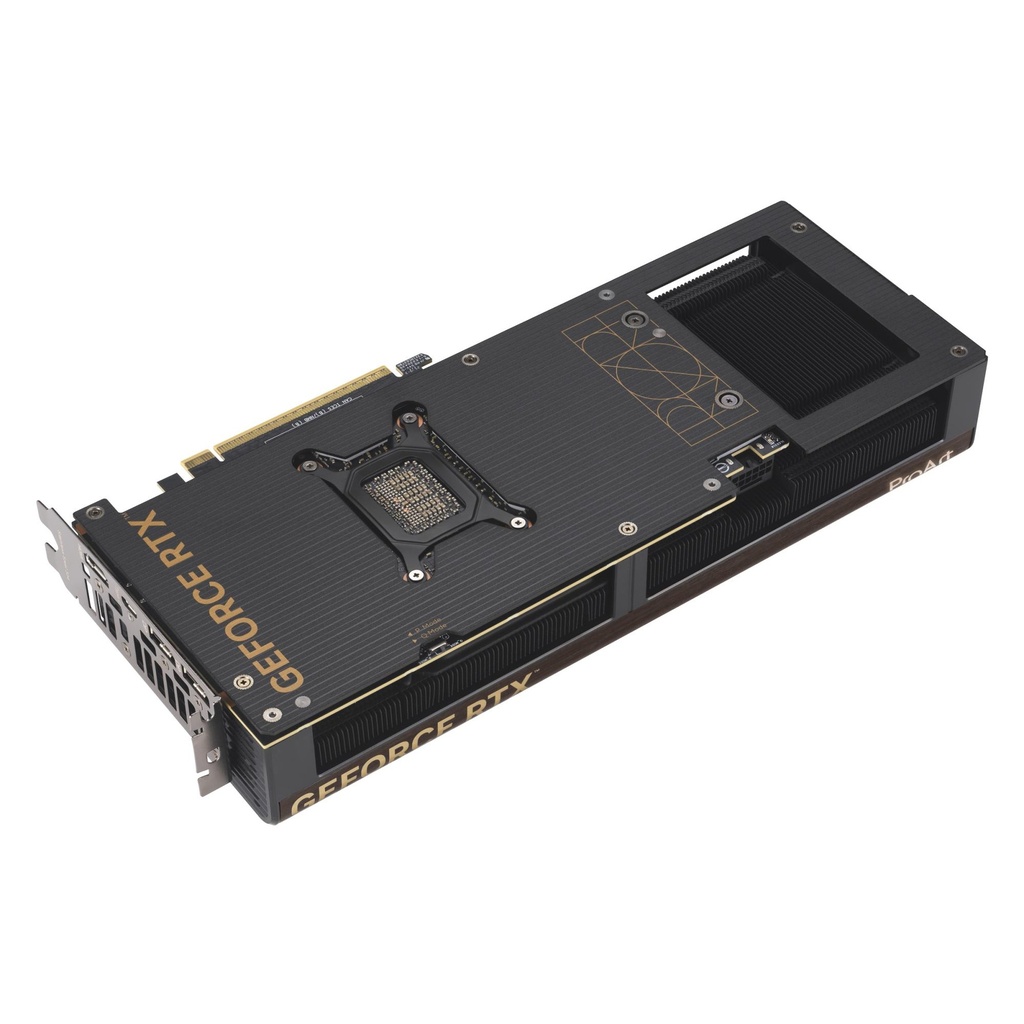

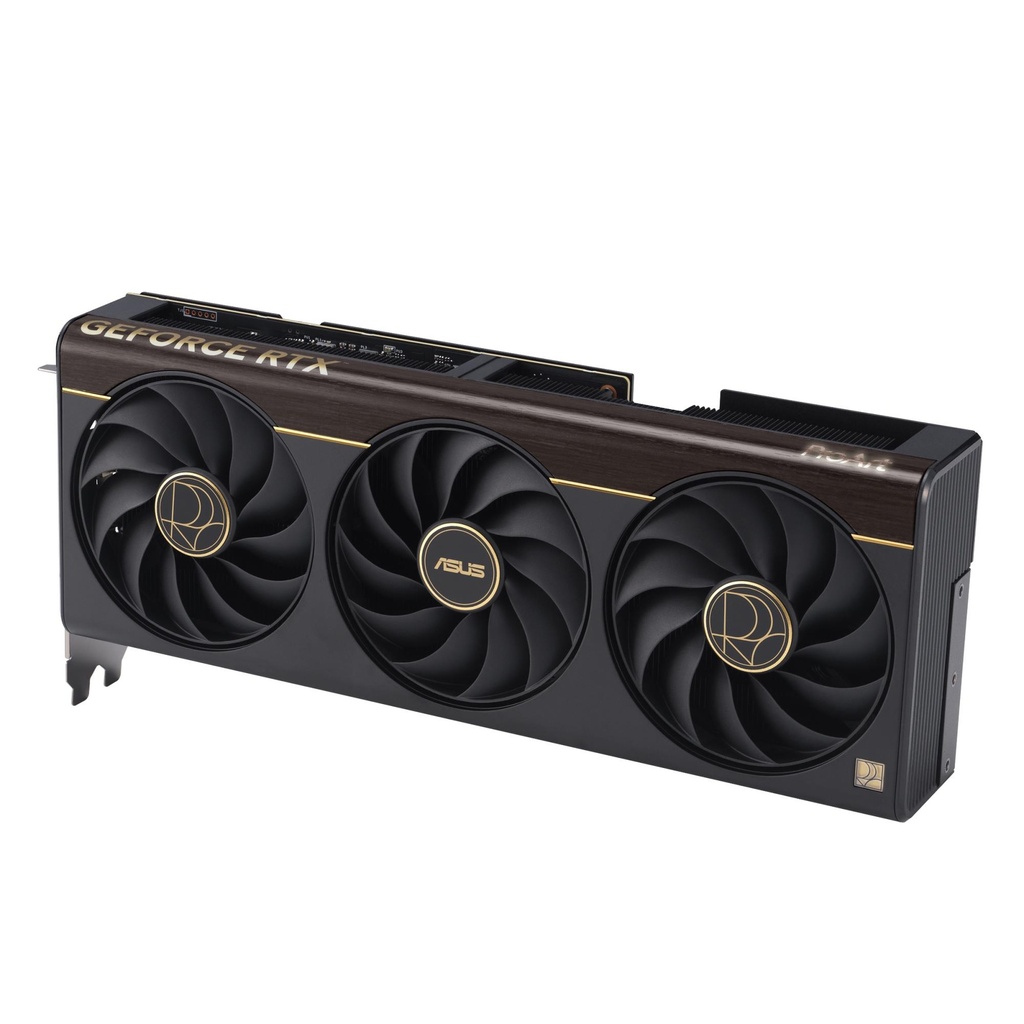

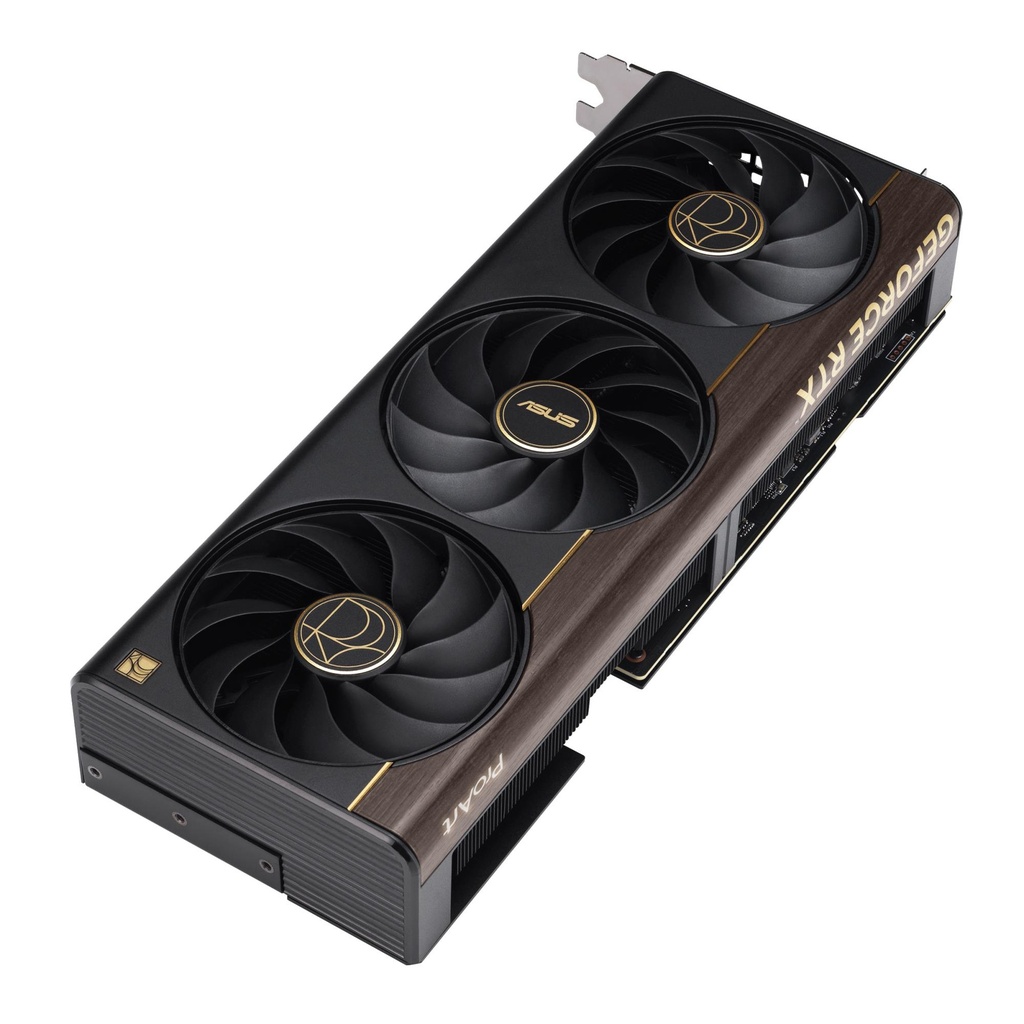

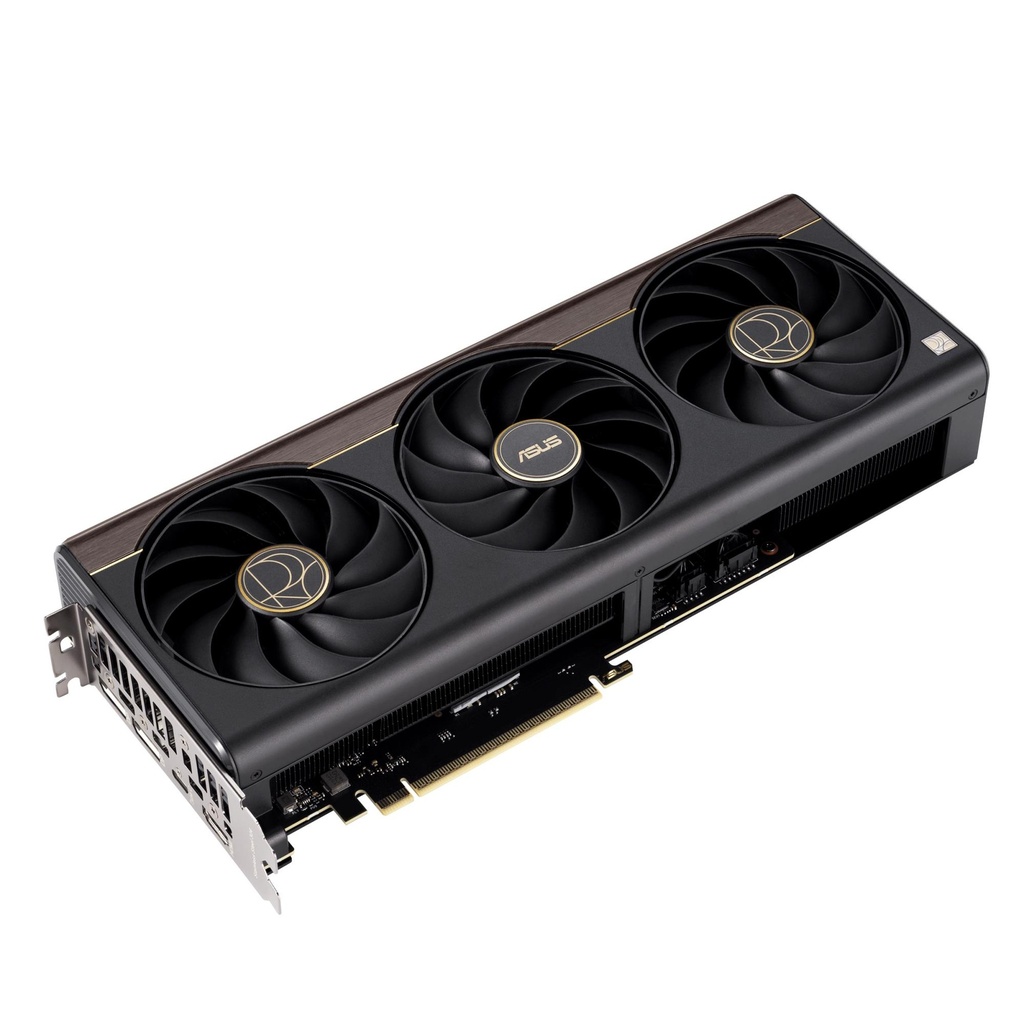

The ProArt GeForce RTX™ 5070 Ti combines a compact 2.5-slot design with potent cooling – three Axial-tech fans, a vapor chamber, and a phase-change GPU thermal pad – to deliver GeForce RTX 50 Series performance to both full-scale towers and space-saving SFF builds. A USB Type-C® port enhances versatility for content creation workflows, while a wood-patterned laminate trim and low-key Aura-lit logo help deliver a refined aesthetic.
General
| Unit Calculated Weight | 2.23 kg |
| Product Net Weight | 1.39 kg |
| Unit Calculated Volume | 0.0101 cubm |
| Units per Shipping Box | 5 |
| Units per Pallet | 0 |
| Summary | ASUS ProArt -RTX5070TI-O16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5070 Ti. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s) |
| CnCode | 84718000 |
| Unit Box Height | 0.235 |
| Unit Box Length | 0.405 |
| Unit Box Width | 0.09 |
Processor
| CUDA | Yes |
| CUDA cores | 8960 |
| Graphics processor | GeForce RTX 5070 Ti |
| Graphics processor family | NVIDIA |
| Maximum displays per videocard | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Processor boost clock speed | 2588 MHz |
| Processor frequency (OC mode) | 2610 MHz |
Memory
| Data transfer rate | 28 Gbit/s |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
Ports & interfaces
| DisplayPort version | 2.1b |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Interface type | PCI Express 5.0 |
| USB Type-C ports quantity | 1 |
Performance
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| NVIDIA G-SYNC | Yes |
| OpenGL version | 4.6 |
| Overclocked (OC) edition | Yes |
Design
| Cooling technology | ASUS Axial-tech |
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Number of slots | 2.5 |
| Product colour | Multicolour |
| SFF ready | Yes |
Power
| Minimum system power supply | 850 W |
| Supplementary power connectors | 1x 16-pin |
System requirements
| Windows operating systems supported | Yes |
Weight & dimensions
| Depth | 50 mm |
| Height | 126 mm |
| Length | 304 mm |
| Weight | 1390 g |
Packaging data
| Package depth | 233 mm |
| Package height | 88.5 mm |
| Package type | Box |
| Package weight | 2040 g |
| Package width | 405 mm |
